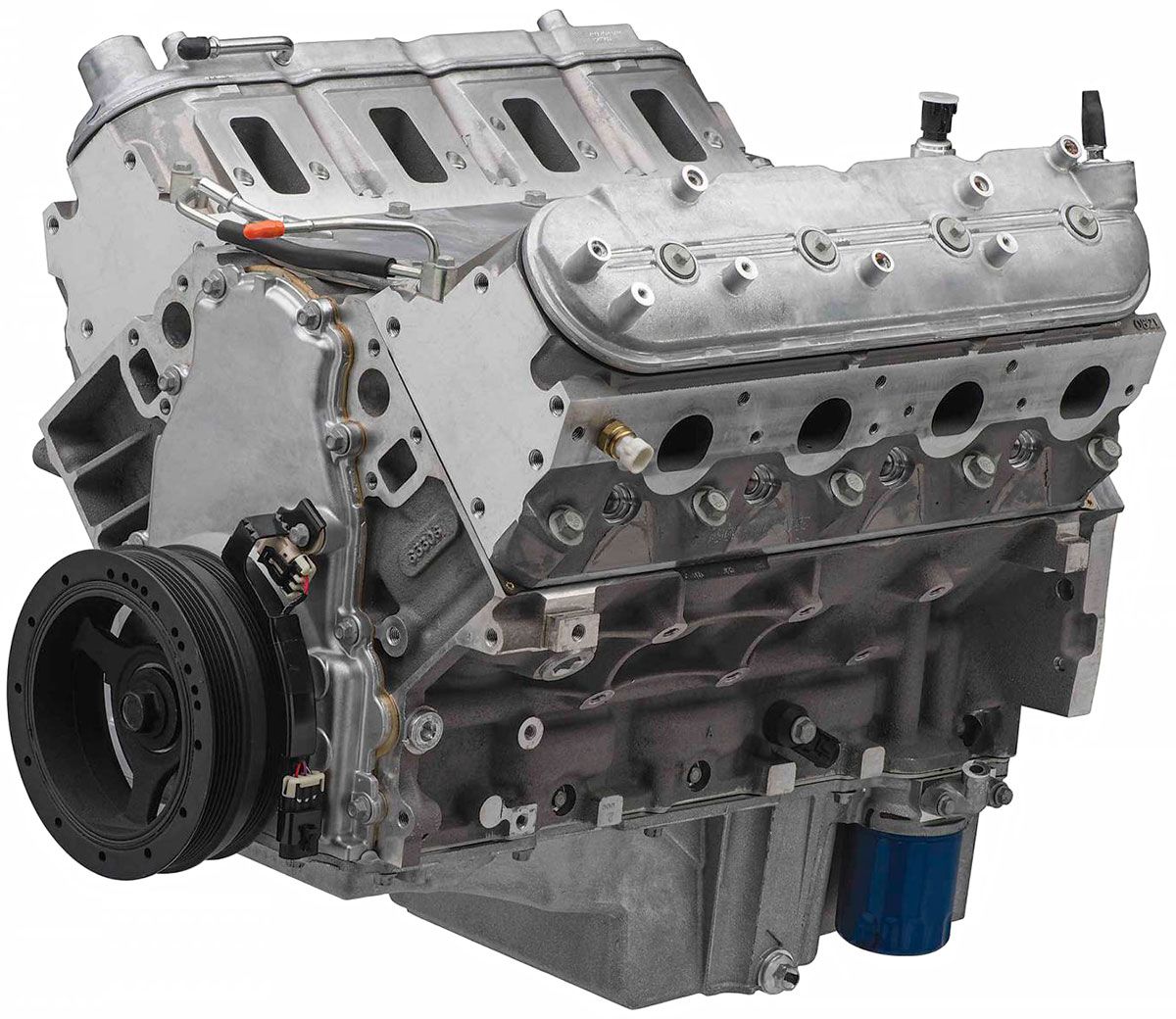

GM GM 6.2L LS3 Crate Engine (GM19434648)

GM19434648 - CRATE ENGINE 6.2L LS3 525 HP

525 Horsepower, 486 ft. lbs. Torque

Part Number: GM19434648

Chevrolet Performance has released its latest factory-engineered LS high-performance engine - the LS376/525. It blends the racing-derived ASA camshaft with the LS3 6.2L production engine to create the most powerful production-based crate engine in Chevrolet Performance's portfolio - delivering 525 horsepower at 6,200 rpm and 486 lb.-ft. at 5,200 rpm. For installation in older vehicles, the engine controller kit part number 19354332 is calibrated specifically for this new engine.
"This is a terrific engine combination that illustrates perfectly the performance potential of the LS engine family - and how it can be enhanced dramatically at an affordable price," said Jim Campbell, GM U.S. vice president of Performance Vehicles and Motorsports. "Whether you've got a new Camaro or a classic Chevelle, this engine delivers terrific bang for the buck." Using the LS3 production engine - the same used in Corvettes and Camaros - as the foundation for the LS376/525 helped keep the retail price lower, while the ASA camshaft is a proven, power-building component that has been successful in the high-rpm world of circle track racing.
The ASA camshaft is a hydraulic roller with .525-inch lift on both the intake and exhaust sides, along with 226 degrees duration on the intake side and 236 degrees on the exhaust side. Coupled with a tight, 110-degree lobe separation angle, it helps the engine deliver excellent throttle response and breath exceptionally well at high rpm. The cam also gives the LS376/525 the most aggressive personality among Chevrolet Performance's growing lineup of production-based high-performance crate engines, which also includes the LS376/480 and the carbureted LS376/515. "The LS376/525 engine has an edge to it," said Campbell. "You'll notice it in the idle quality and you'll feel it when the revs quickly climb." Front-end accessories must be obtained separately, along with the engine controller kit. Chevrolet Performance offers several accessory drive kits to suit a variety of applications and some installations for older vehicles will require the oil pan changed.
Specifications:
Power: 525 HP @ 6200 RPM, 486 ft. lbs. of torque @ 5,200 RPM
Displacement: 376 CID, 6.2L
Bore x Stroke: 4.060" x 3.620"
Compression Ratio: 10.7:1
Recommended Fuel: 92 Octane
Block: Cast Aluminium with 6 bolt cross bolted main caps
Crankshaft: Nodular Iron
Connecting Rods: Powdered Metal Steel
Pistons: Hypereutectic Aluminium
Camshaft: Steel Hydraulic Roller Tappet
Cam Lift: .525" Intake / .525" exhaust
Cam Duration @ .050": 226 deg. Intake / 236 deg. Exhaust
Lobe Separation: 110 Degree
Cylinder Heads: Aluminium L92 style ports
Combustion Chamber: 68cc
Valves: 2.165" Intake/ 1.590" Exhaust
Rocker Arms: Cast Roller Trunnion, 1.7:1 Ratio
Balance: Internal
Reluctor: 58X
Maximum GM Recommended RPM: 6600
GM Recommended Torque Converter Stall 3000-3400
Engine Includes:
- Fully GM assembled long block
- Oil pump, pick-up and Camaro oil pan (12628771)
- Corvette Harmonic Balancer
- Front timing cover with cam sensor
- Oil Filter
- Passenger Side RH Oil Dipstick and Tube (not included)
Note: Does not include oil dipstick tube, oil dipstick, or steam crossover tube
