Blueprint | SKU: PSE4540CTC

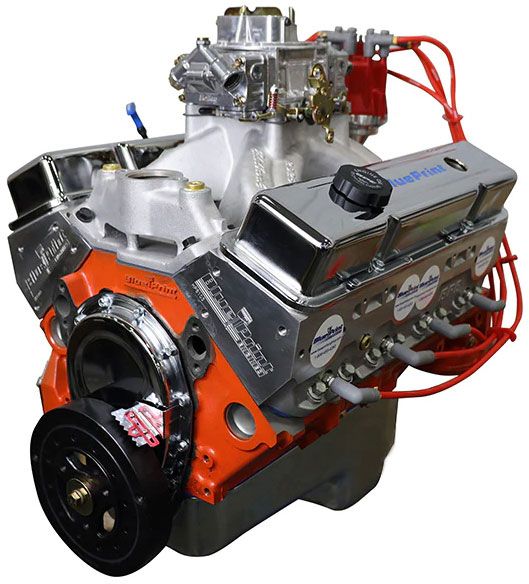

Blueprint Small Block Chevy 454 c.i.d. Pro Series Crate Engine,Dressed (PSE4540CTC)

Name: Blueprint Small Block Chevy 454 c.i.d. Pro Series Crate Engine,Dressed (PSE4540CTC)
Brand: Blueprint
SKU: PSE4540CTC
Price: 27134.30 NZD
Availability: OutOfStock

575 hp/560 ft-lbs torque, 10.1 Comp

$27,134.30 NZD + GST

Shipping calculated at checkout.

We do not carry this item in stock & it will be special ordered for you. Please contact us before ordering for delivery times. Additional freight charges may apply.

Description

PSE4540CTC - SB CHEV 454 CID 575 HP CRATE

575 hp/560 ft-lbs torque, 10.1 Comp

Part Number: PSE4540CTC

Cast Iron 4 Bolt Main
2 piece rear main seal
driver side dipstick
4.250" bore
Crankshaft: SCAT 4340 Forged, 4.000" Stroke
Connecting Rods SCAT 4340 Forged: 6" Length

Mahle forged pistons

Mahle rings
Compression: 10:1
Bore/Stroke: 4.250"/4.000"
Melling oil pump
Cloyes double roller timing set
AFR 195cc Aluminium cylinder heads, 64cc chamber, Straight plug
Comp Cams pushrods
Comp Cams roller rocker arms
Aluminium valve covers

Hydraulic Roller
Duration @ .050" Lift: 244 Intake / 252 Exhaust
Lift: .609" Intake / .576" Exhaust
Lobe Separation: 112°
Carb: 1050cfm AED
Balancer: Power Bond
Distributor: MSD Pro Billet
Intake: World Products
Oil pan: Moroso
Spark Plugs: Champion
Spark Plug Wires: MSD
