Blueprint SB Chrysler 408 c.i.d Crate Engine, Dressed (PSEBPC4085CTCD)
465 hp/494ft-lbs torque, 10.1 CompThis is a special order item!
We do not carry this item in stock & it will be special ordered for you. Please contact us before ordering for delivery times. Additional freight charges may apply.
PSEBPC4085CTCD - MOPAR 360 SB TO 408 CU 465 HP
465 hp/494ft-lbs torque, 10.1 Comp
Part Number: PSEBPC4085CTCD
NOTE:

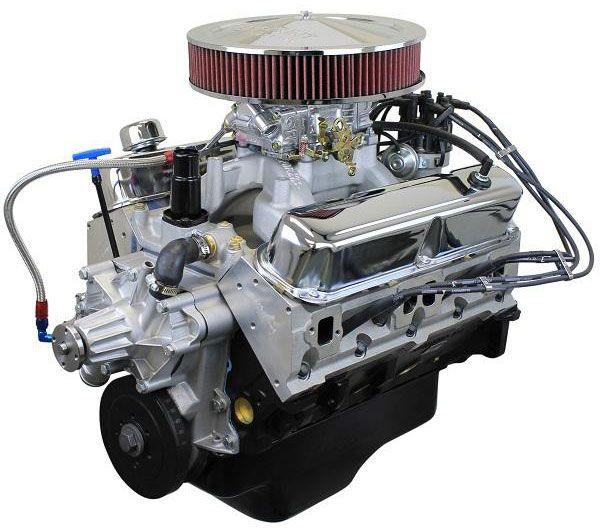

Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.
BLOCK:
Hand picked seasoned Magnum block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
4.000" Bored .040" over
2-Piece Rear Main Seal
Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
New Steel crankshaft
4.000" Stroke
Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
Forged pistons
External
CYLINDER HEADS
:
BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
Aluminum Roller Rockers
2.02" intake/1.60" exhaust valves
176cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.580 Intake .577 Exhaust
235 Intake / 242 Exhaust duration
@ .050 - 110 degree lobe separation
IGNITION TIMING:
34 degrees total at 4000 RPM
ALSO INCLUDES:
Valve covers, oil pan and timing cover, Standard Rotation, Drive side inlet water pump and timing cover, plugs, wires, distributor, waterneck, thermostat, fuel pump and fuel line, harmonic balancer, air cleaner.
Dyno test results shipped with engine
NOTES
:
Not for use in pollution controlled vehicles.
