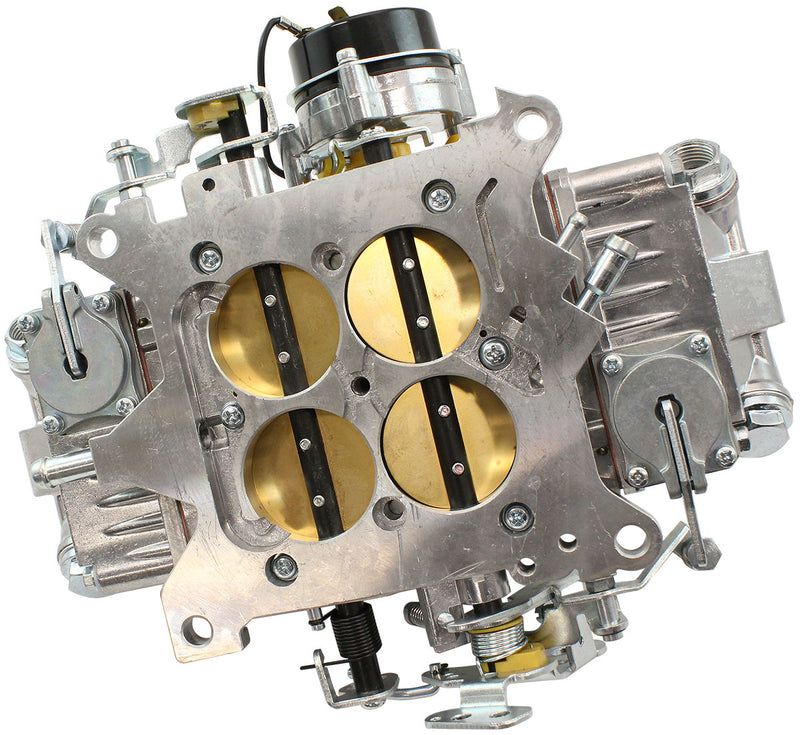

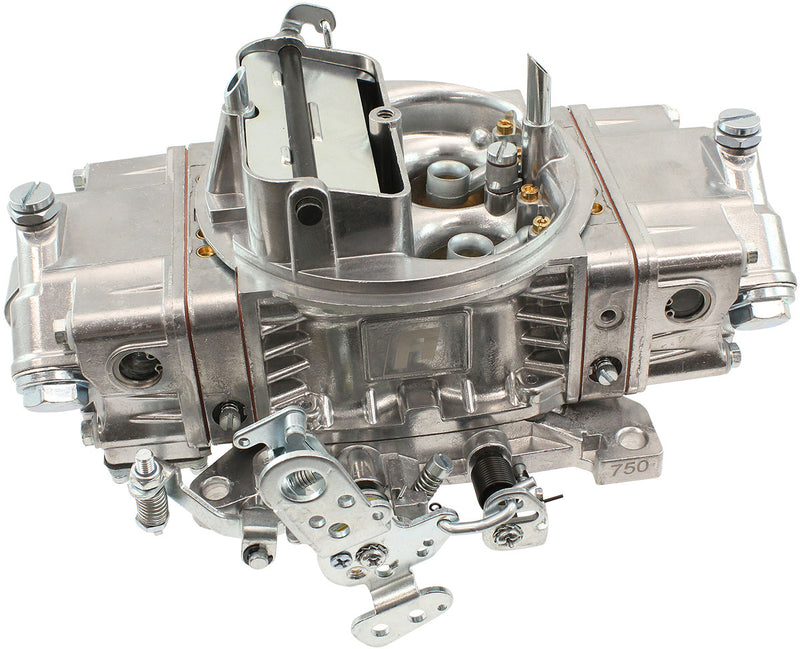

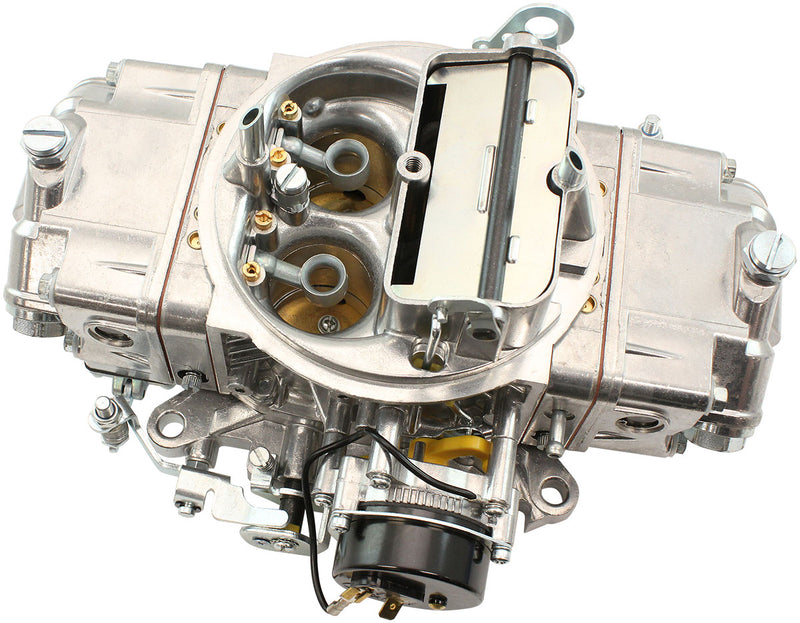

Aeroflow 750cfm 4-Barrel Double Pumper Carburettor with Mechanical Secondaries Square bore 4150 Flange, Electric Choke, Silver Finish (AF5112-1750)
Square bore 4150 Flange, Electric Choke, Silver Finish
Aeroflow 750cfm 4-Barrel Double Pumper Carburettor with Mechanical Secondaries Square bore 4150 Flange, Electric Choke, Silver Finish (AF5112-1750) is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
RACE 750cfm CARBURETTOR DOUBLE
Square bore 4150 Flange, Electric Choke, Silver Finish
Part Number: AF5112-1750
Aeroflow Performance double pumper carburettors with mechanical secondaries are a great street performance upgraded carburettor. Manufactured from lightweight diecast aluminium components. They offer all the tunability and options that you would find from more expensive carburettors in the market today. From having a beautiful appearance, electric choke, and four-corner idle adjustment. All models have dual inlet fuel bowls with sight glass windows for safe and easy float adjustments. Screw-in air bleeds and idle feed restrictions for tuning capability. With bolt on and run performance right out of the box with easy tuneability for a smooth throttle response throughout the power band.
Specifications:
CFM: 750
Hi Speed Air Bleed: 31 and 31
Idle Air Speed: 70 and 70
Primary Main Jet: 74
Secondary Main Jet: 80
Power Valve: 6.5Hg
Important Information:
This model of carburettor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburettors with 5-3/16" x 5-5/8"
bolt pattern. If you have a spread bore style intake manifold, you will need an adapter to install this carburettor (sold separately AF42-2066).
