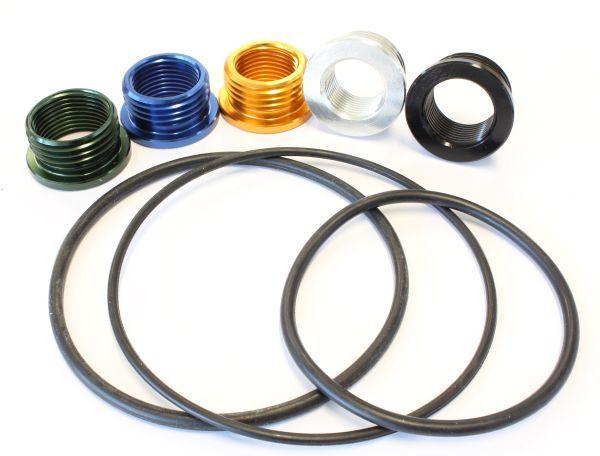

Aeroflow Replacement O-rings & Thread Inserts (AF59-2016)

AF59-2016 - AEROFLOW OIL FILTER SPARES KIT

Suit Aeroflow Billet Re-Usable Oil Filters AF64-2016

Part Number: AF59-2016

This replacement thread insert kit is specifically designed to suit the Aeroflow Performance universal billet Re-useable oil filters (AF64-2016BLK and AF64-2016P), oil filter relocation kit (AF64-2042), billet remote block adapter (AF64-2076) and billet 90-degree low profile block adapter (AF64-2098).
The kit screw in adapters come with the following:
3/4"-16
13/16"-16
M18 x 1.50mm
M20 x 1.50mm
M22 x 1.50mm.
These threads will suit various oil filters and all adapters feature a 3/4"-16 internal thread.
The replacement O-rings in this kit ONLY suit Aeroflow Performance billet re-usable oil filters (AF64-2016BLK and AF64-2016P).

Specifications: Oil Filter landing O-ring Dimensions:

Small O-ring seals - 67mm
Large O-ring seals - 81mm
Thread inserts (3/4”-16 internal thread)

3/4”-16 thread insert (Gold)
13/16”-16 thread insert (Blue)
M18 x 1.5mm thread insert (Silver)
M20 x 1.5mm thread insert (Black)
M22 x 1.5mm thread insert (Green)
