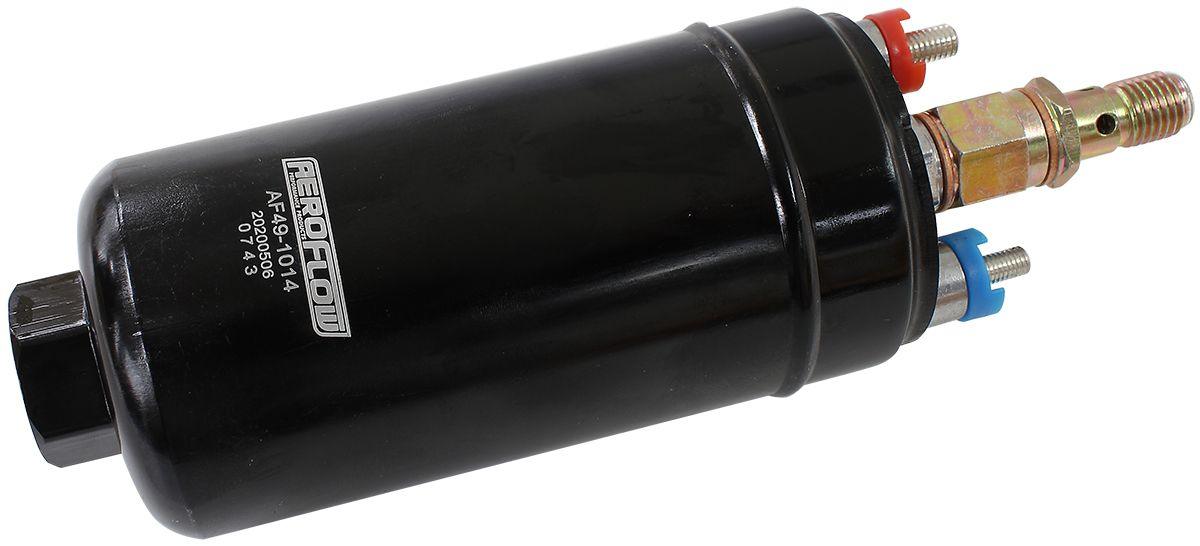

Aeroflow EFI Electric In-tank/External Fuel Pump 675 HP (AF49-1014)
M18 x 1.5mm Inlet, M12 x 1.5mm Outlet, similar to Bosch 044
Aeroflow EFI Electric In-tank/External Fuel Pump 675 HP (AF49-1014) is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
EFI IN TANK / EXTERNAL PUMP
M18 x 1.5mm Inlet, M12 x 1.5mm Outlet, similar to Bosch 044
Part Number: AF49-1014
Universal 60mm External or In-Tank EFi Fuel Pump.
This Aeroflow Performance fuel pump delivers outstandingperformance and durability andis one of the most popular pumps for performance and racing applications. The pump is very versatile, allowing you to mount your pump externally as an in-line pump or internally as an in-tank pump. While producing 300lph (79GPH) of fuel flow and operating at 72.5psi, with this pump you will be able to support 675hp. It features a check valve already screwed into the outlet, if you leave itin you will need to run a banjo fitting as the thread istapered. It is common for people to remove this check valve and screw an adaptor fitting straight in the outlet. If you do this you will need to put an aftermarket check valve in-line to keep fuel pressure in your lines.
Compatible with Unleaded, E85 and Methanol. (When running Alcohol fuels the service life will be reduced and filter maintenance must beincreased).
Specifications: Body Length: 146mm (5-47/64")
Body Diameter: 60mm (2-23/64")
Outlet thread: M12 x 1.50mm
Inlet Thread: M18 x 1.50mm
Electrical Terminals: Positive M6, Negative M5
