Aeroflow | SKU: AF49-4001BLK

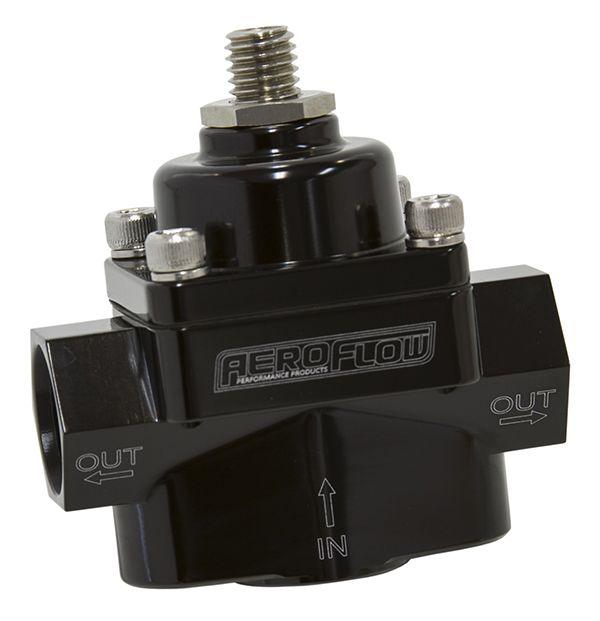

Aeroflow Billet 2-Port Fuel Pressure Regulator with 3/8" NPT Ports (AF49-4001BLK)

Name: Aeroflow Billet 2-Port Fuel Pressure Regulator with 3/8" NPT Ports (AF49-4001BLK)
Brand: Aeroflow
SKU: AF49-4001BLK
Price: 121.20 NZD
Availability: InStock

Black Finish. 1-11 psi Adjustable

$121.20 NZD + GST

Shipping calculated at checkout.

Stock Status:

Description

RED STYLE REG 1-11 PSI ADJUSTA

Black Finish. 1-11 psi Adjustable

Part Number: AF49-4001BLK

Aeroflow fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburettor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. These billet aluminium regulators are fully adjustable from 1 to 11 PSI so regulating the fuel pressure to your engines needs is a simple task. available with either 3/8" NPT or -8ORB female threads and are the perfect choice for fuel systems running a dead head system with no return line. Available in blue, black and red anodised or polished finishes.
Suitable for use with pump fuel, E85 alcohol and diesel fuels.
Note: Recommended for use with Carburettor fuel pumps only - not EFI.

Specifications: Dimensions
Overall Length - 70mm
Body Height - 59mm
Bracket Height - 42mm
Overall Width - 38mm
Bracket Centre to Centre - 43mm
Fittings - 3/8" NPT
Adjustable from 1-11PSI

Important Information: Real world testing of this regulator with a dead head fuel system. Found an Aeroflow Blue Fuel Pump (AF49-1009) would regulate from 2-12PSI. With the Compact Silver fuel pump (AF49-1064) would regulate from 3-6 PSI.
