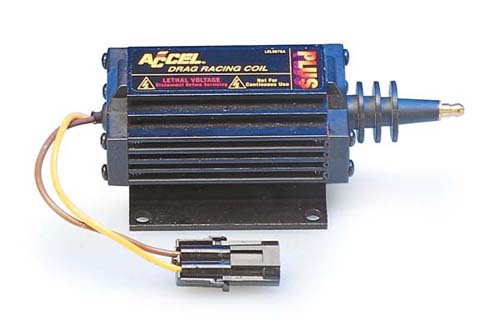

Accel Professional Drag Race CD Coil Higher Energy, Longer Endurance (AC140010)

Re-engineered for extended use and ultra high output. This coil is capable of delivering over 1 full amp to the spark plugs. Design to work with CD racing ignition systems only.The unique patent pending core design and ultra low resistance heavy gauge windings have been designed for optimal performance with a Mallory, Crane, Holley or MSD capacitive discharge racing ignition system. Special high temperature, high density epoxy encapsulation resists severe shock and harsh vibration while providing maximum thermal conductivity. The light weight anodized extruded aluminum housing provides maximum cooling. SAE male tower with three high voltage dams provides extended protection from arcing. Can be mounted in any orientation and comes complete with a sealed weatherproof primary leads and connector. This coil is effective to over 12,000 RPM.

SPECIFICATIONS

• Tested with Mallory HyFire VII ignition
• Primary Resistance 0.09 Ohms
• Secondary Resistance 0.48 Ohms
• Turns Ratio 170 : 1
• Maximum Voltage 50,000 volts
• Peak Current 1,200 mA
• Spark Duration 170 µS

NOTE: All clearance item sales are final & are not returnable for credit or refund, descriptions are correct as per manufacture
