ACCEL | SKU:
140012

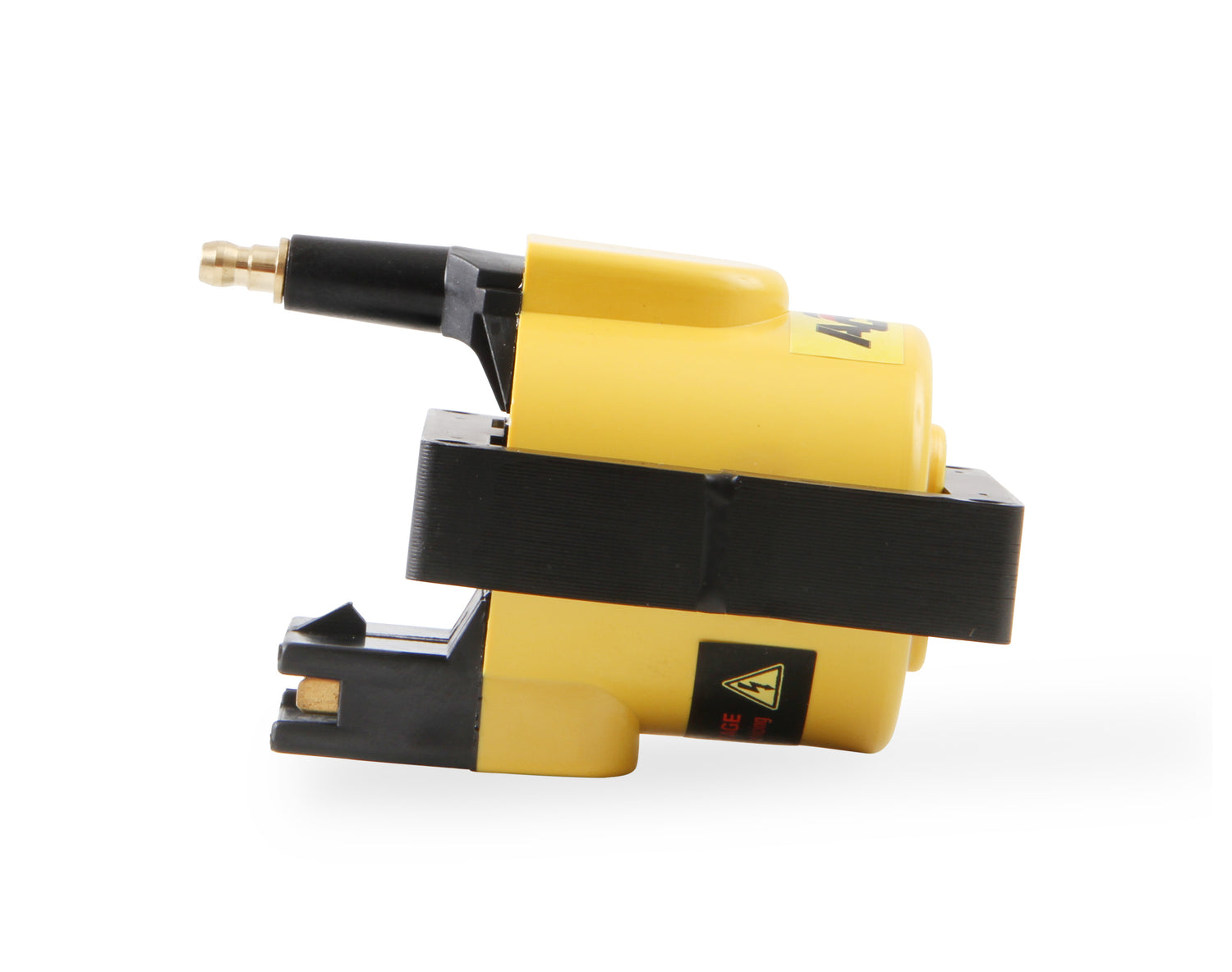

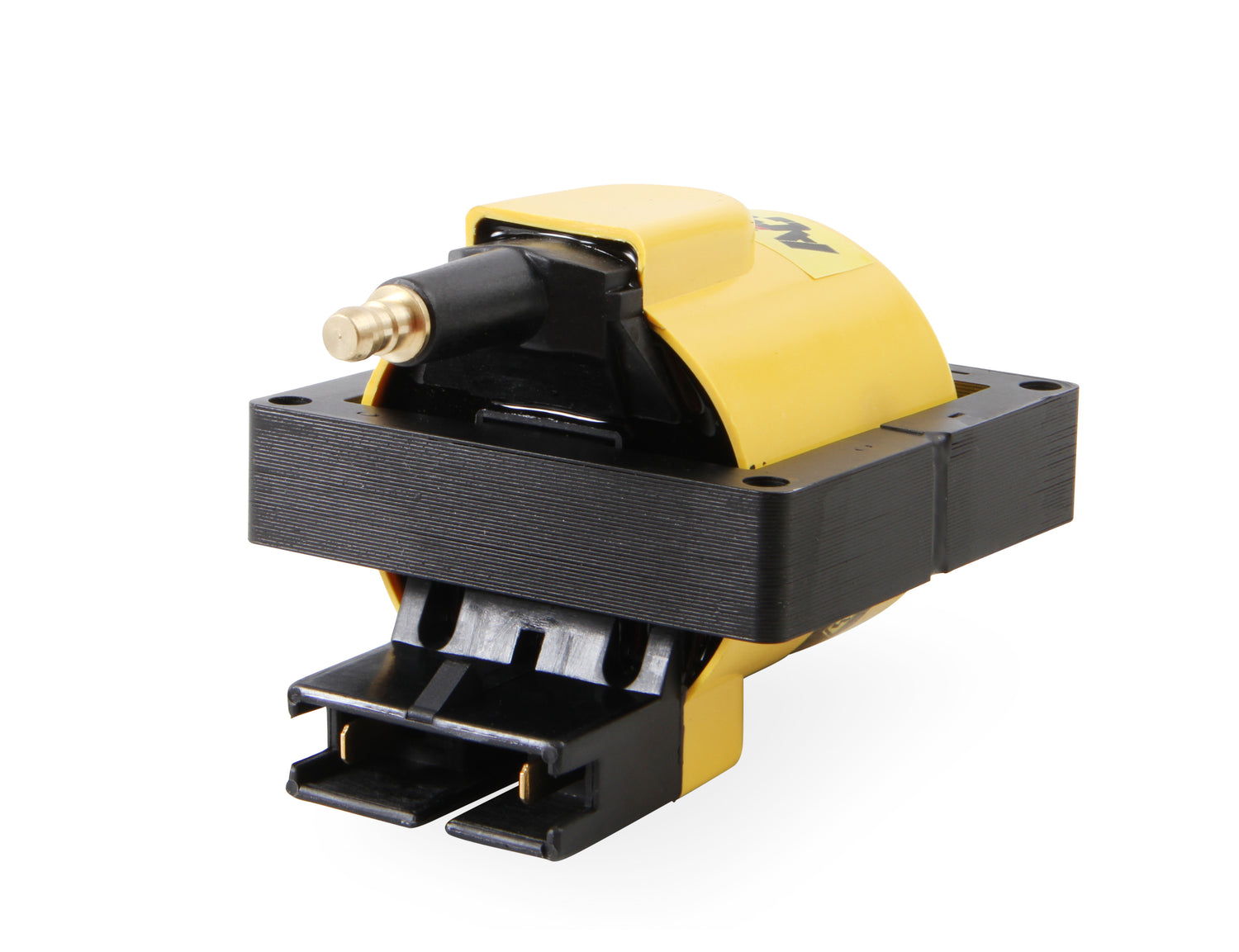

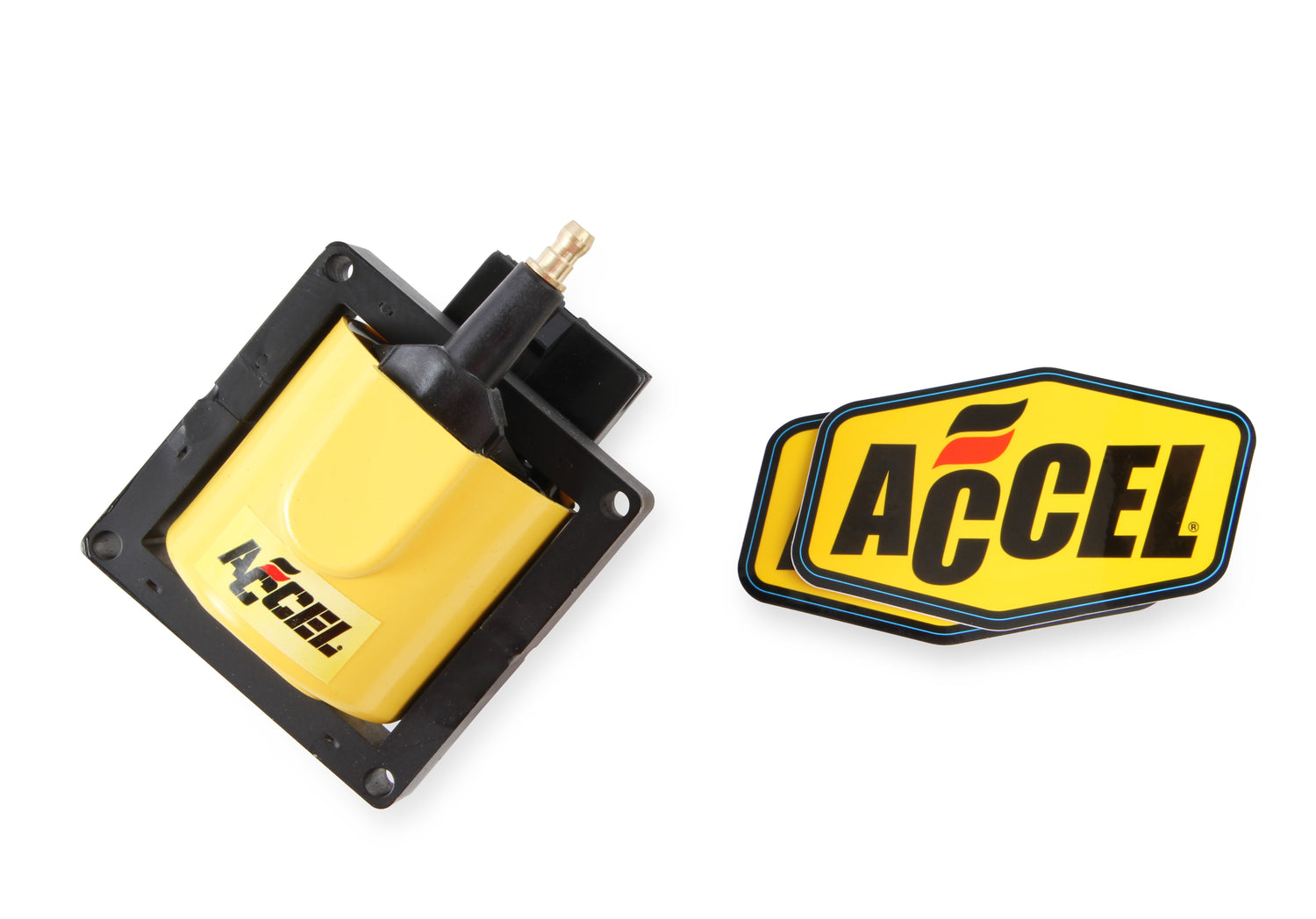

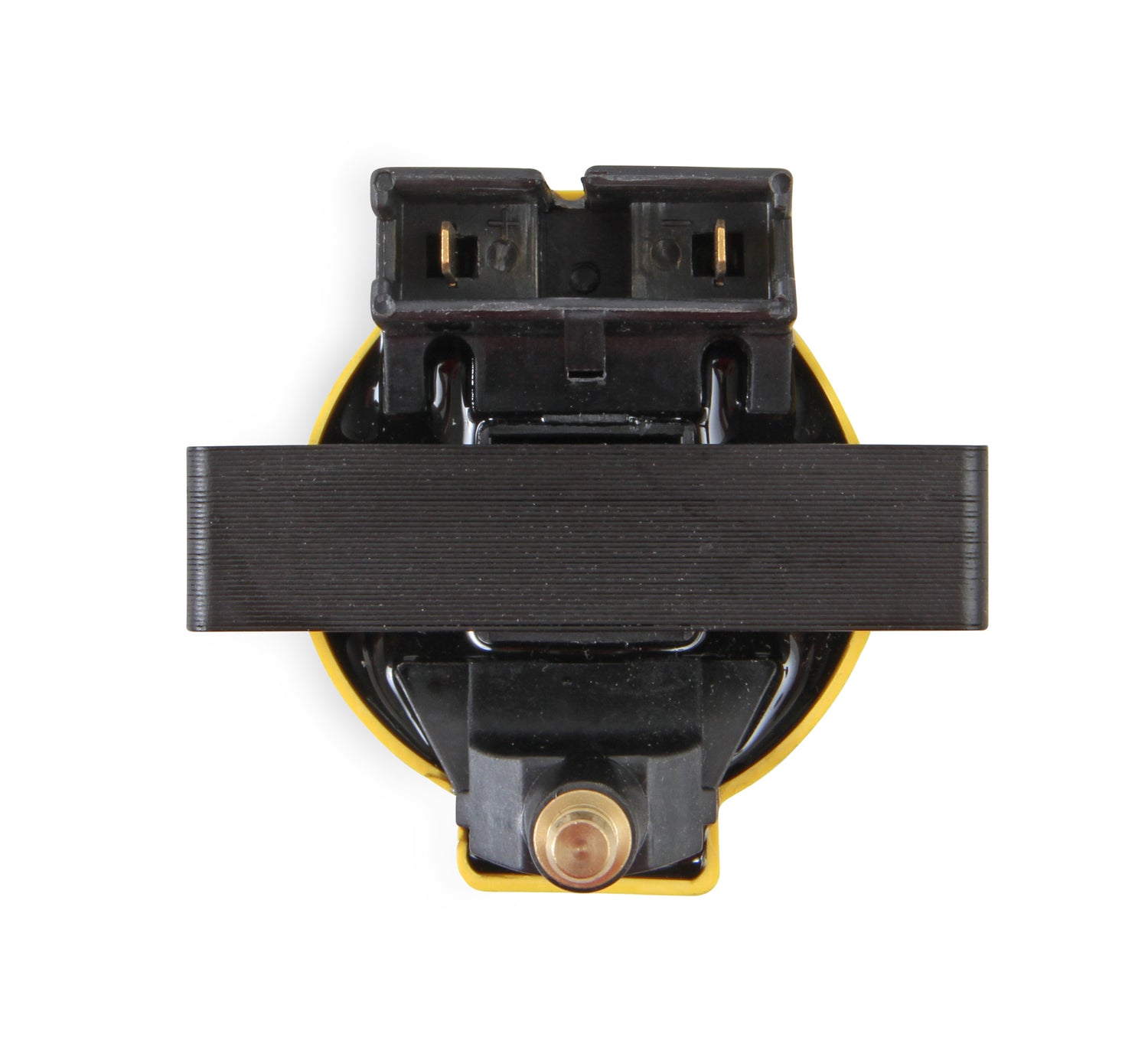

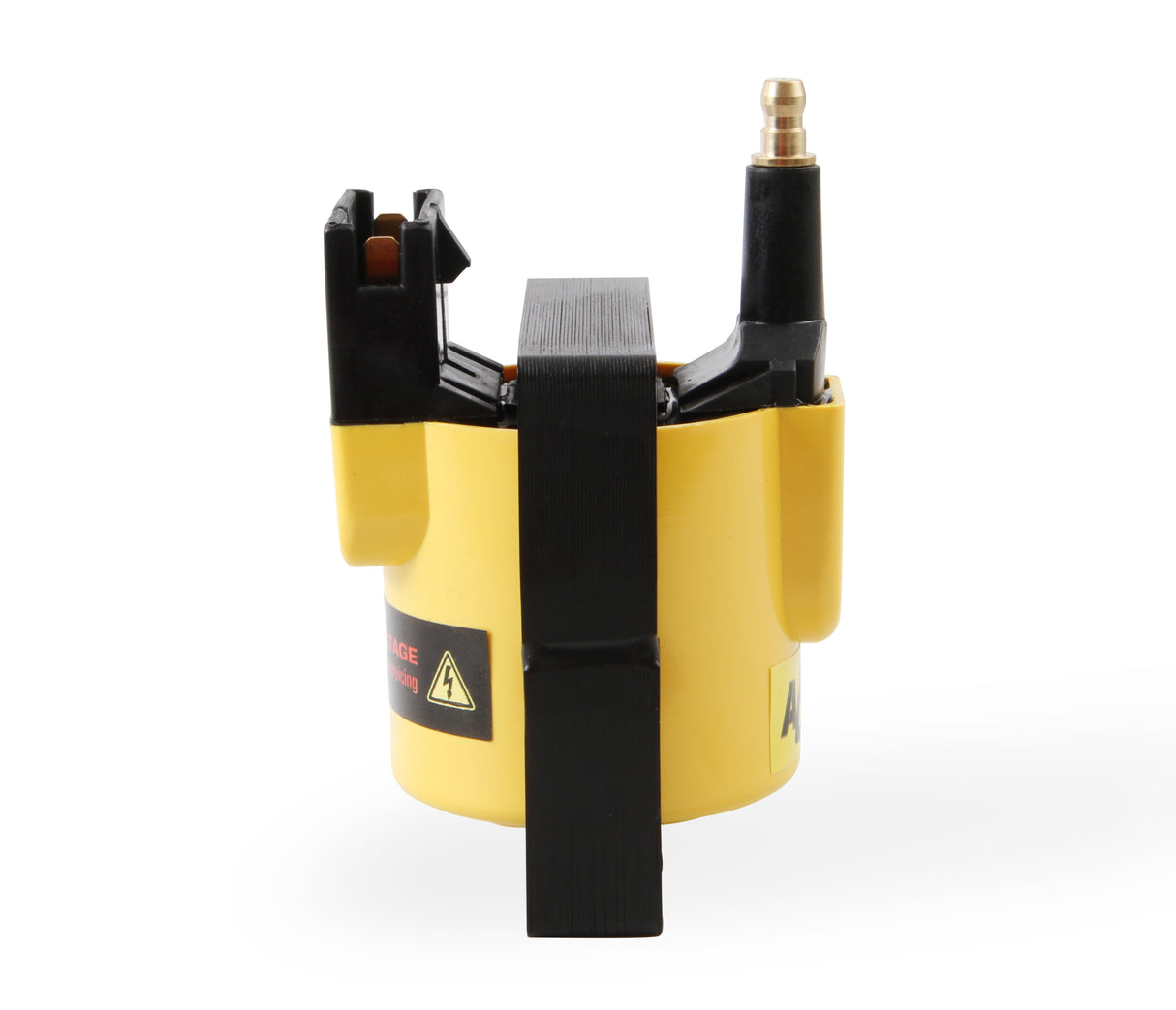

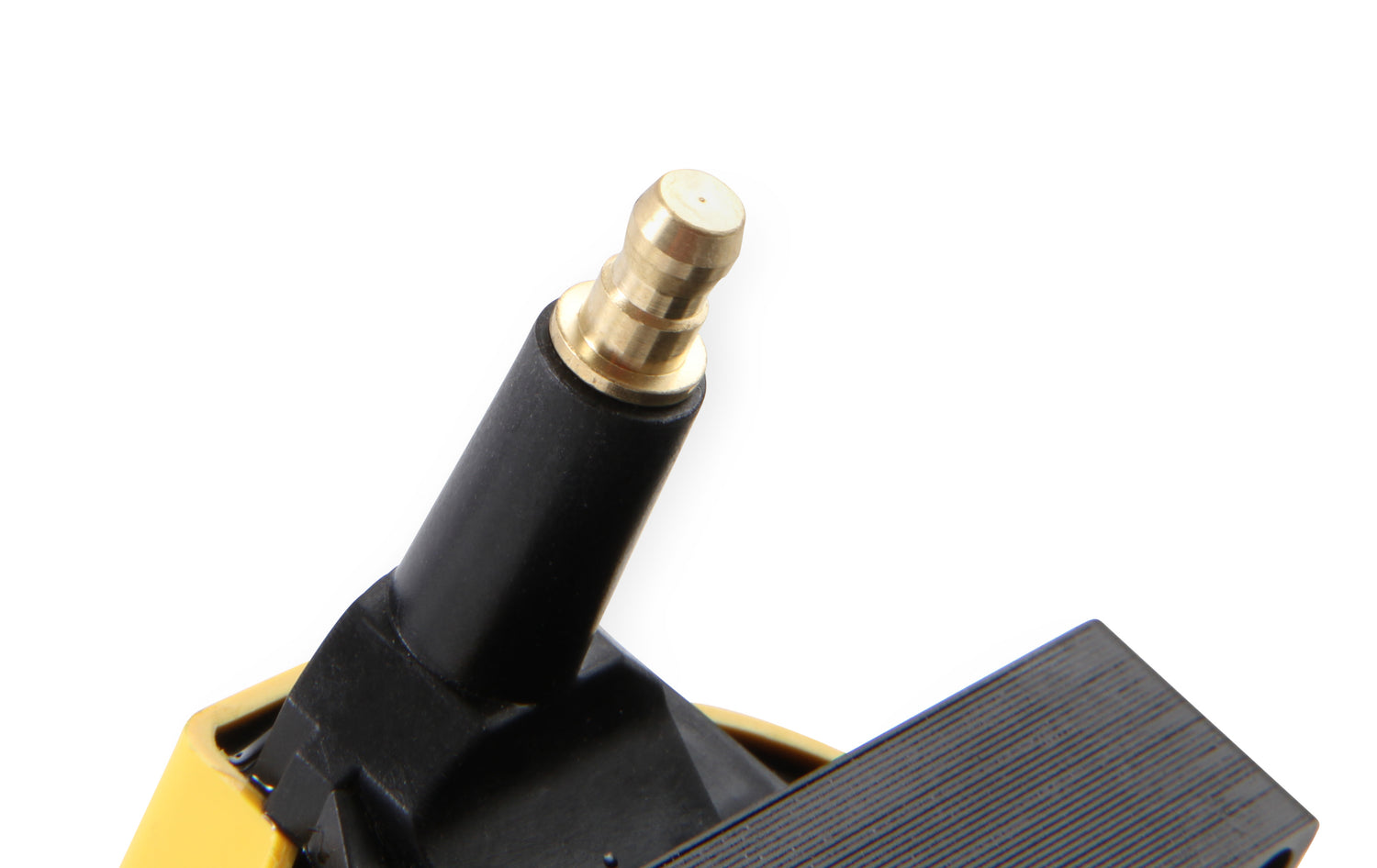

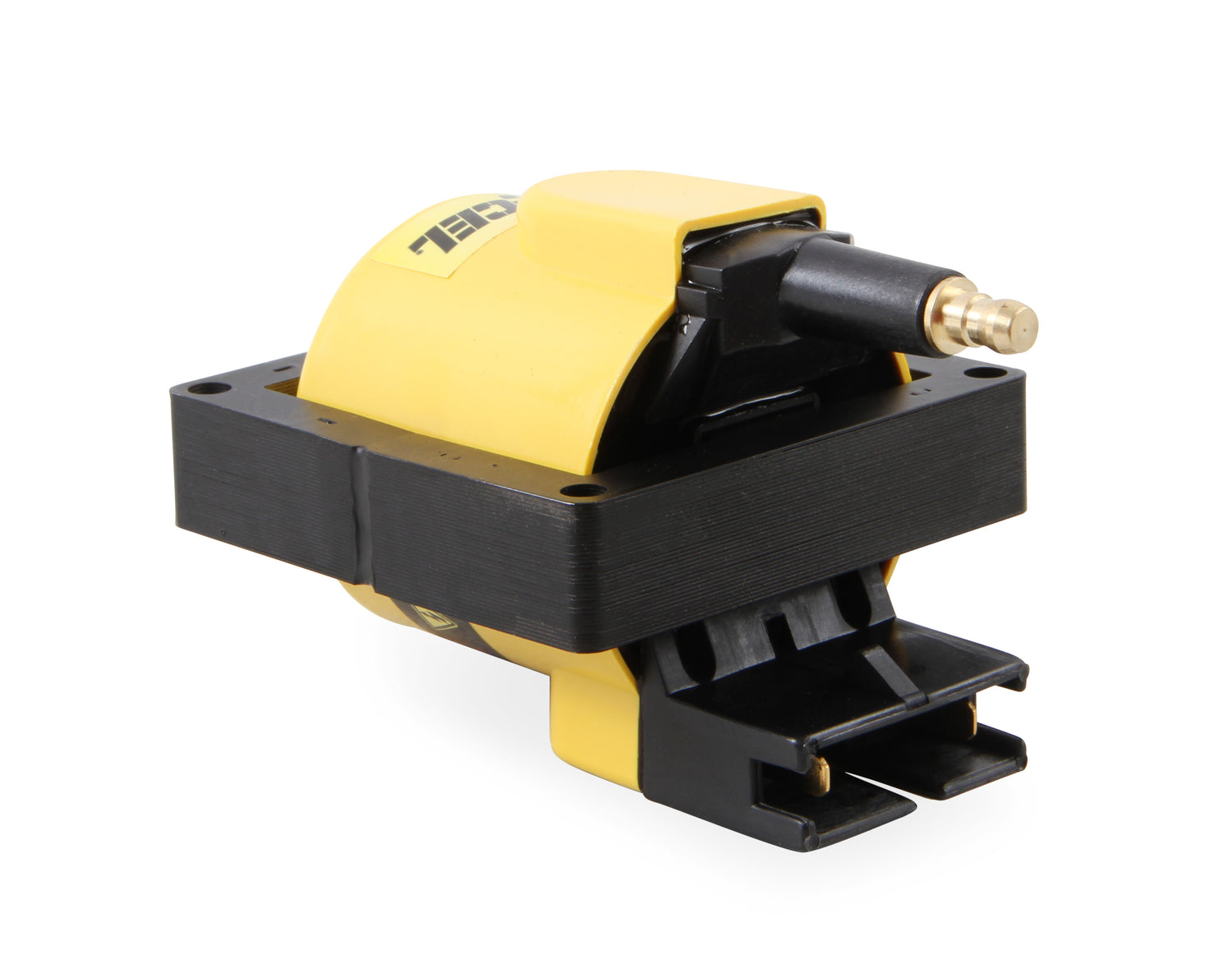

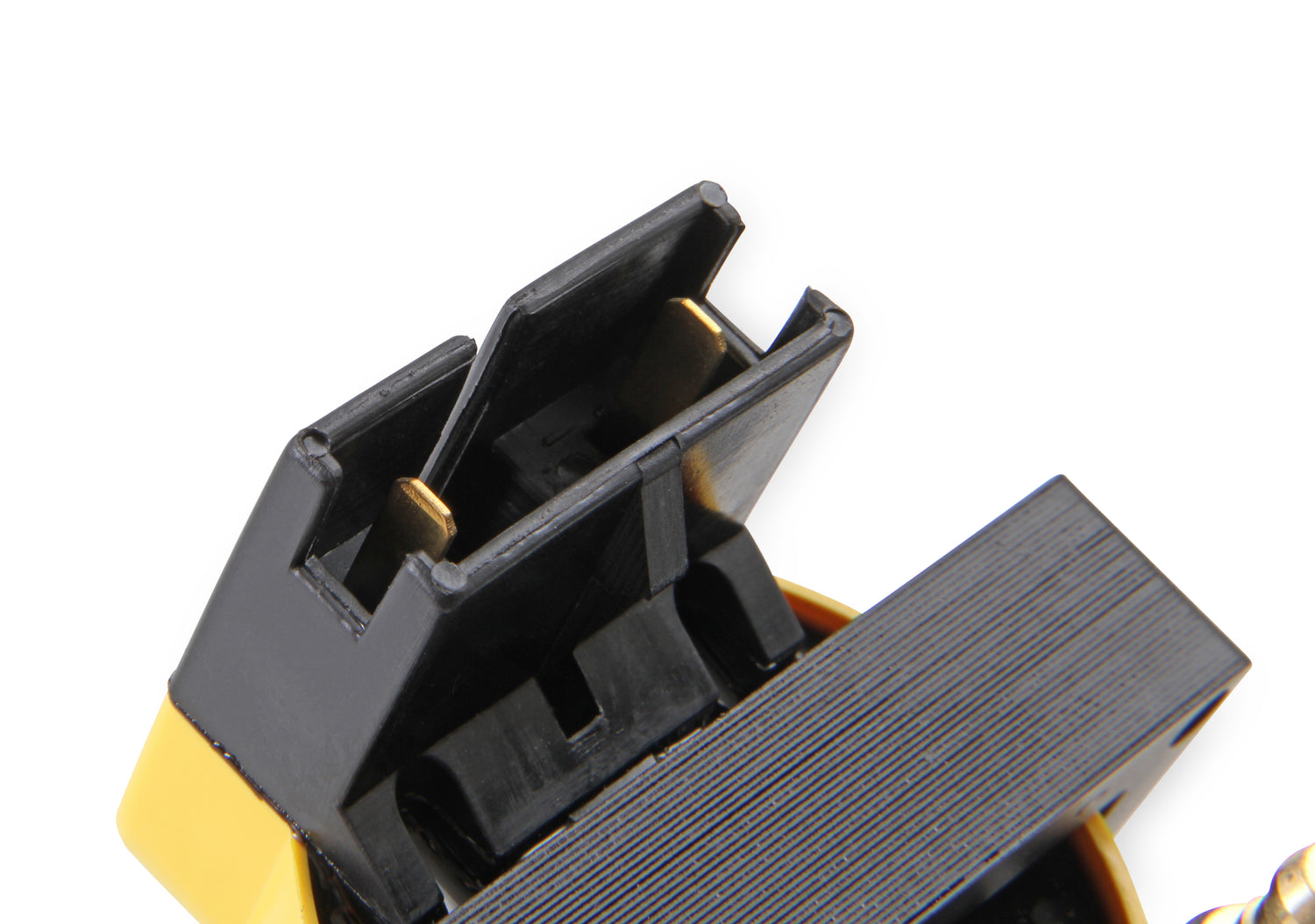

ACCEL Ignition Coil - SuperCoil - 1984-1998 Ford EEC-IV - Yellow - Individual - 140012
This ACCEL Ford EEC-IV 1984-98 ignition coil has a maximum voltage of 48,000 volts.
Regular price
$198.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
ACCEL Ignition Coil - SuperCoil - 1984-1998 Ford EEC-IV - Yellow - Individual - 140012 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–14 days shipping.
Stock Status:
ACCEL Ignition Coil - SuperCoil - 1984-1998 Ford EEC-IV - Yellow - ...
Regular price
$198.10 NZD
+ GST
Unit price
/
Unavailable
Description
Description
This ACCEL Ford EEC-IV 1984-98 ignition coil has a maximum voltage of 48,000 volts.
Part Number: 140012
Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, and crisper throttle response. Compatible with late model Ford EEC-IV computer controlled ignition system equipped with a TFI distributor. Direct OEM replacement. Can also be used with an ACCEL, Mallory, Crane, Holley or MSD capacitive discharge ignition system. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy efficiency and resists corrosion better than aluminum. High dielectric strength ACCEL Yellow over-molded housing.
Features and Benefits
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Standard Motor Products SMP Fd-478
• MSD 5527
Part Number: 140012
Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, and crisper throttle response. Compatible with late model Ford EEC-IV computer controlled ignition system equipped with a TFI distributor. Direct OEM replacement. Can also be used with an ACCEL, Mallory, Crane, Holley or MSD capacitive discharge ignition system. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy efficiency and resists corrosion better than aluminum. High dielectric strength ACCEL Yellow over-molded housing.
Features and Benefits
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Standard Motor Products SMP Fd-478
• MSD 5527
Specifications
Specifications
-
Specifications
Application Ford Brand ACCEL Category Ignition Coils Color Yellow Emission Code 2 Maximum Voltage 48,000 volts part type Ignition Coil Peak Increase in Energy vs. OE 37% Peak Increase in Voltage vs. OE 23% Primary Resistance 0.2 Ohms Product Type Ignition Coils Quantity 1 Quantity Per Pkg. 1 Secondary Resistance 8.8 k Ohms Sub Category Ignition Coil Turns Ratio 1 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Weight 2.0000
