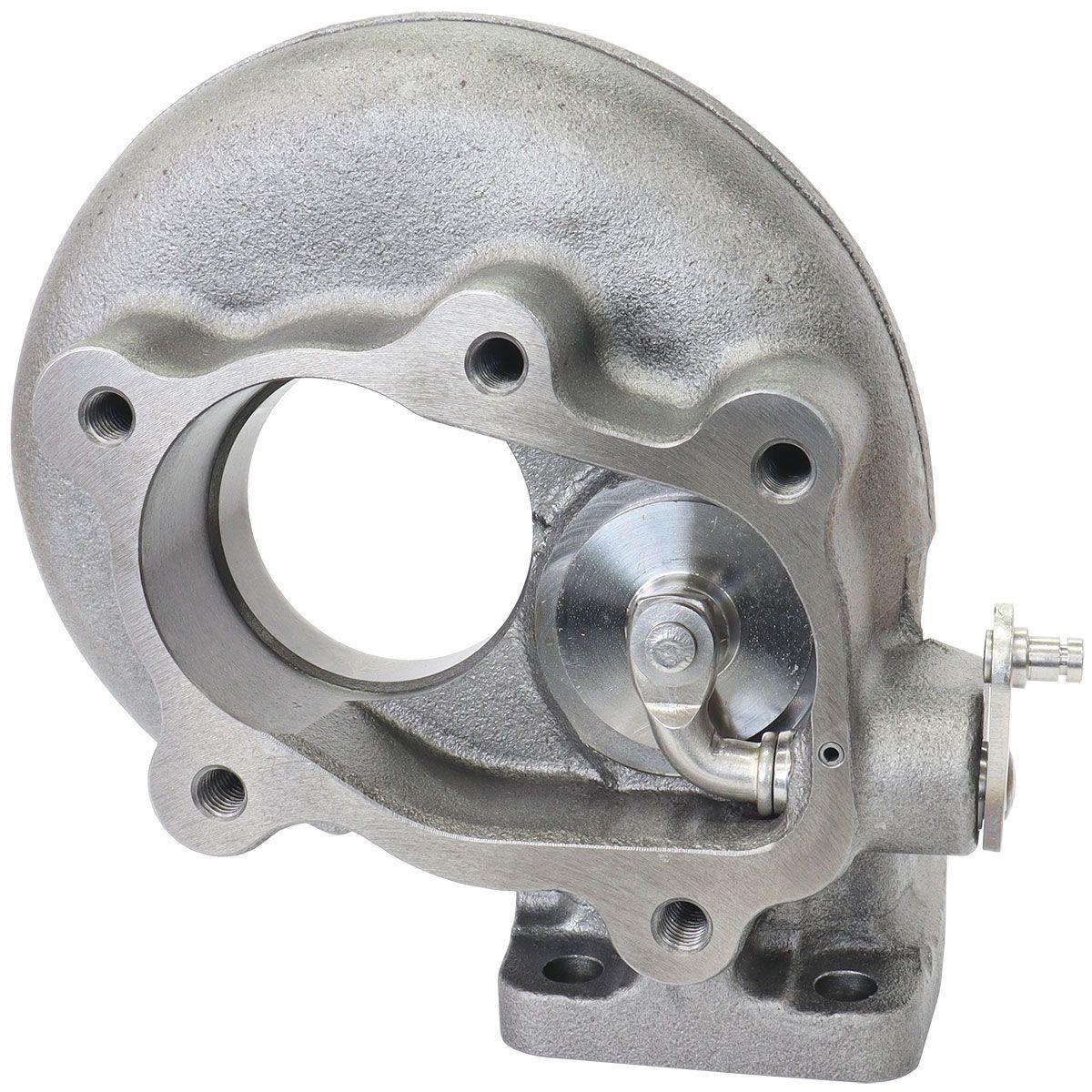

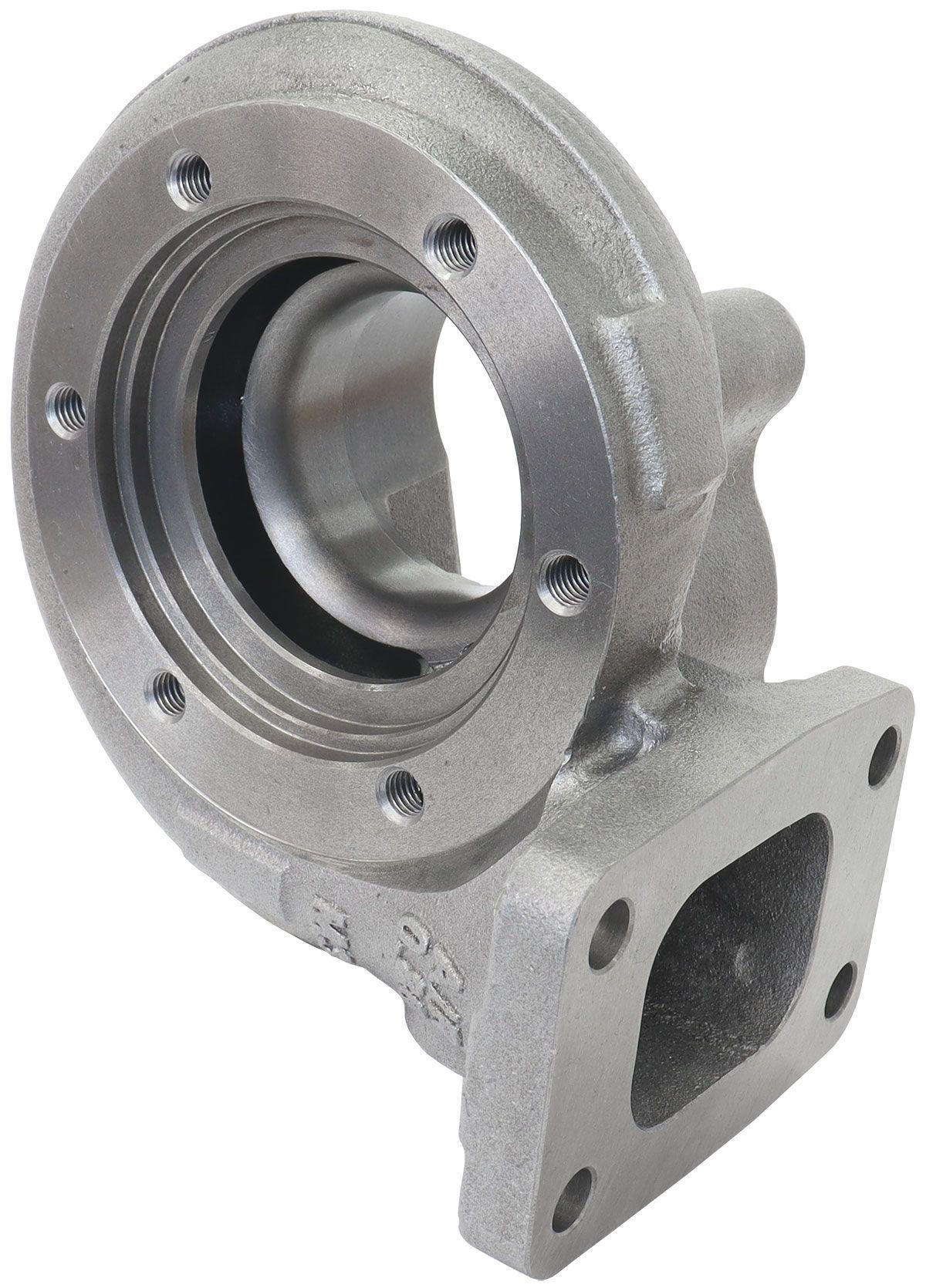

Aeroflow Boosted .86 A/R T25/T28 Inlet & Nissan 5 Bolt Outlet Turbo Exhaust Housing, Suits Boosted Nissan 4748, 5054 & 5447 Turbochargers (AF8050-1039)
Cast Iron Material, Internal WastegateAF8050-1039 - BOOSTED T28 REAR HOUSING .86
Cast Iron Material, Internal Wastegate
Part Number: AF8050-1039
Aeroflow Performance offers a variety of replacement turbine rear housings for their entire range for Boosted series turbochargers. You can choose to option for a smaller or larger A/R ratio. This will allow you to fine tune depending on your application for engine configuration and driving conditions. Available in many different turbine inlet and outlet flanges to fit most exhaust manifolds such as T25/T28, T3, T4 ,T6 and V-Band and Exhaust downpipes such as 5 bolt and V-band. Turbine housings can be replaced on most turbos easily via mounting bolts or V-bands and a few minutes of time. They can be clocked 360 degrees to just about any position needed.
Specifications: Bolt on Nissan turbo rear housing for factory and aftermarket turbochargers.
0.64 compressor ratio ( A.R ) Cast Iron exhaust housing.
30mm Wastegate Hole Size.
5 Bolt Nissan turbine outlet flange.
T25 / T28 turbine inlet flange AF9551-0001
Suits Boosted 4748, 5054 & 5447 turbos:
AF8005-2000 / AF8005-2000BLK
AF8005-2001 / AF8005-2001BLK
AF8005-2002 / AF8005-2002BLK
AF8005-2003 / AF8005-2003BLK
AF8005-2005 / AF8005-2005BLK
AF8005-2006 / AF8005-2006BLK
AF8005-2007 / AF8005-2007BLK
AF8005-2008 / AF8005-2008BLK
AF8005-2020 / AF8005-2020BLK
AF8005-2021 / AF8005-2021BLK
AF8005-2022 / AF8005-2022BLK
AF8005-2023 / AF8005-2023BLK
