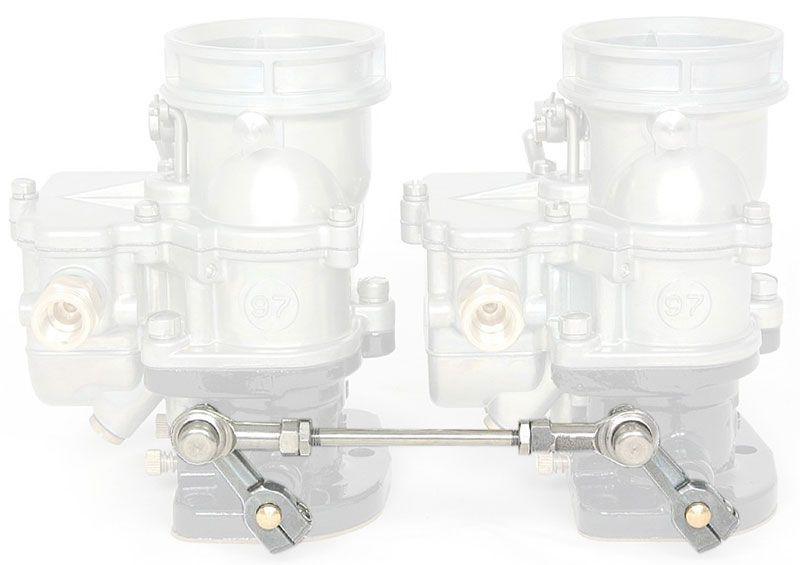

Stromberg Carburettor Linkage Kit (STROM9241P)

STROM9241P - STROMBERG 2 X 2 LINKAGE KIT

Two Step 2x2 Linkage With 4-3/4" Carb Spacing

Part Number: STROM9241P

A premium 2x2 carburetor linkage with rod ends for positive action, die-cast Superlink levers and a stainless steel link rod. Use on intake manifolds with carburetors 4-3/4 inches apart. If in doubt, simply measure your manifold spacing - throttle shaft to throttle shaft. Exclusive to Stromberg Speed Parts, this linkage features 'Snapback' throttle return springs which virtually disappear from view. Special bolts were developed with a small blind hole, allowing you to insert eg, a hex key, to tighten the lock nut. And opposite threaded rod ends ensure easy adjustment. Just spin the link rod to correct the lever angles. The linkage comes pre-assembled, installs in just two simple steps and comes with full instructions. Click the other tabs for help with installation and tuning.
OVERVIEW
Fits Offenhauser 1090 & 1075 2x2 Regular intake
Fits Edelbrock 1103 2x2 Slingshot intake
Fits Navarro 2x2 Regular intake
Fits Eddie Meyer 2x2 High-rise intake
Fits Thickstun PM-7 High-rise intake
Works with all Stromberg 9141 TwoStep fuel lines (as pictured)
Extended throttle shafts not required
