Stockcar Full Floater Rear End Kit

Fast Lane Spares Stockcar Floater Rear End Kits are designed to upgrade a standard Ford or Hilux differential to a full-floating setup.

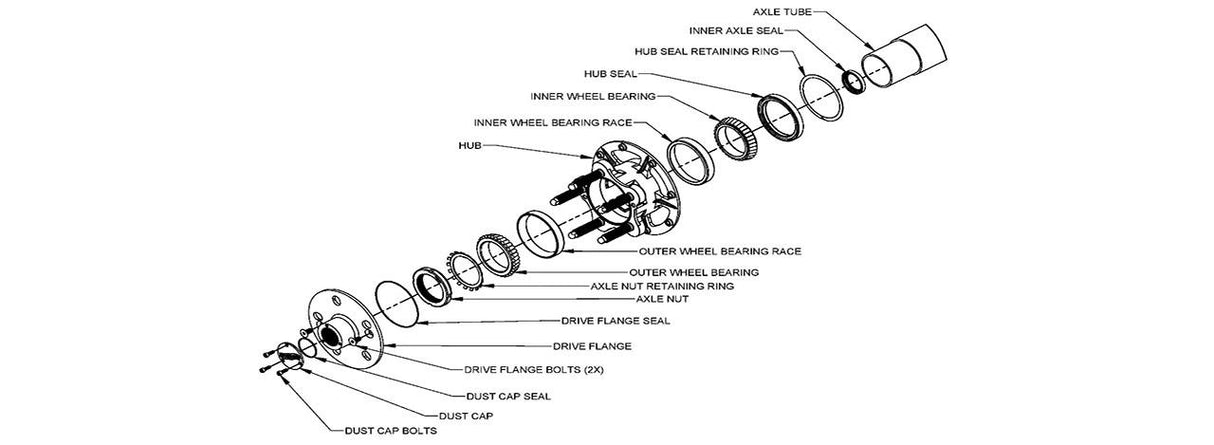

Each rear hub runs on two tapered roller bearings mounted to the housing snout, similar to a front hub. The axle splines float between the drive plate and the differential.

The vehicle’s weight and cornering loads are carried by the differential housing rather than the axles. This means the axles are only responsible for transferring torque to the wheels, reducing axle deflection and brake pad knockback under cornering.

The full-floating setup also makes removing the third member easier. Leave the wheels fitted, remove the hub end caps and slide the axles out before removing the third member.

Features

• Designed for Stockcar Ford and Hilux differential housings
• 5 x 114.3mm wheel stud pattern
• Full-floating axle setup
• Reduces axle deflection
• Helps reduce brake pad knockback
• Makes axle and third-member removal easier

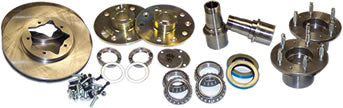

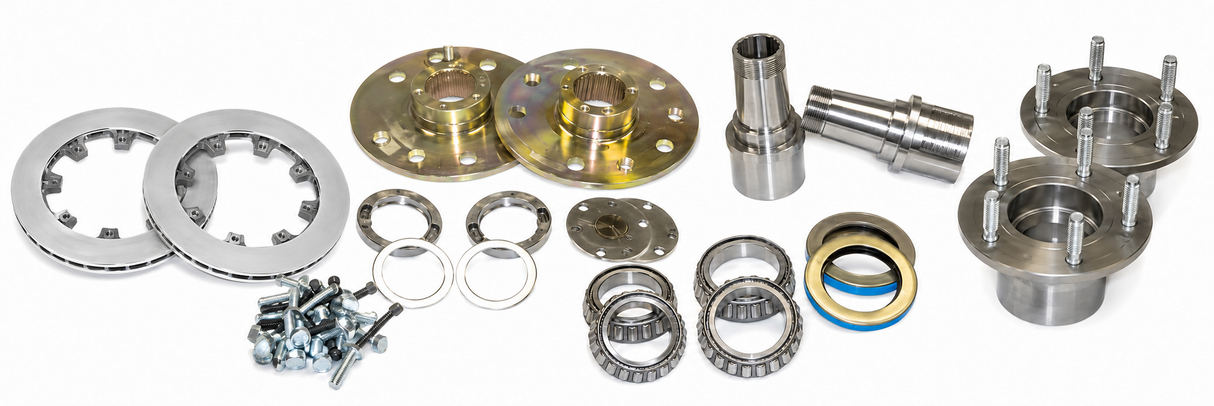

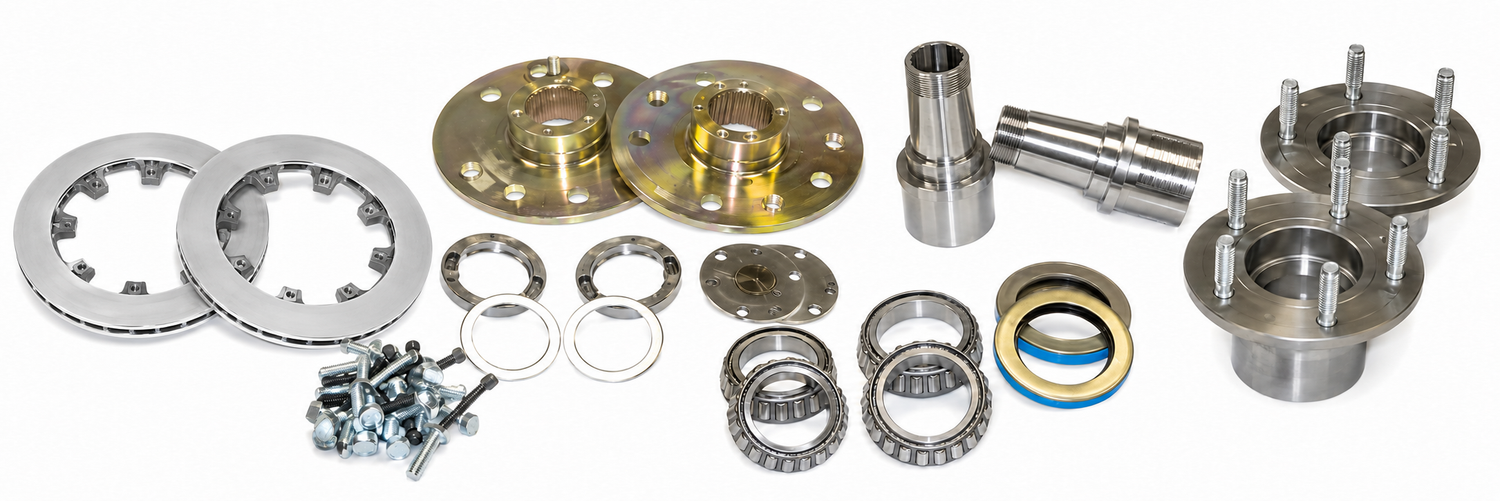

Kit Includes

• 2 x hubs
• 2 x drive plates
• 2 x housing snouts
• 2 x axle caps
• 2 x brake rotors
• 2 x rotor adaptor plates
• 4 x tapered roller bearings
• 4 x bearing races
• 2 x lock nuts
• 2 x seals
• Wheel studs
• Mounting screws

Wheel Stud Pattern: 5 x 114.3mm

Important: Welding and professional installation are required. Check all measurements and compatibility with your differential, wheels and brake setup before installation.
