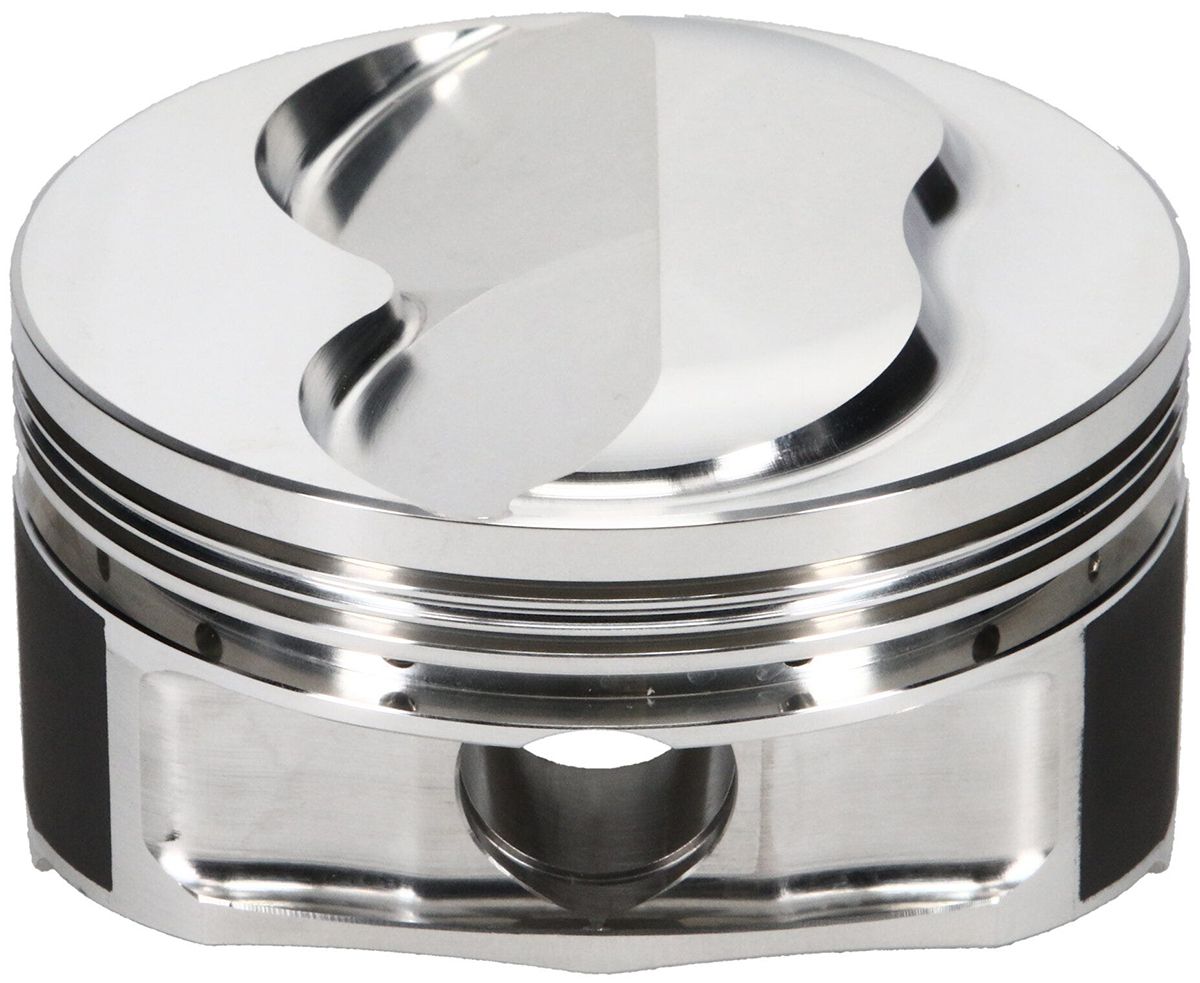

JE Ford 302W Stroker SVO/Dart Block - Big Bore Forged Piston (J232475)

J232475 - SBF 4.125" PISTONS +6.5cc DOME

364 c.i., 4.125" bore, 3.400" stroke, 5.400" rod length, 6.5cc dome volume

Part Number: J232475

Designed for use in aftermarket race blocks, these big bore pistons will accommodate larger valves and long-duration, tight lobe separation cams. Compatible with most 20° wedge cylinder heads and will accept moderate nitrous. Precision CNC machined ring grooves accept 1/16", 1/16", 3/16" rings. Pin upgrade recommended above 700hp. Recommended ring set contains low tension oil ring; for standard tension, change ring prefix to J100F8. Hardened Nitrous Series (HNS) rings also available, changed ring prefix to J820F8.

Includes
:

Pin #927-2750-15-51S (130g)
Double Spiro locks #927-042-CS
Double pin oilers

Specifications
:
Part #: J232475
CID: 364

Bore: 4.125
Stroke: 3.400
Rod Length: 5.400
Block Height: 8.200
ssion Height: 1.100
Compression Ratio with 56cc chamber volume: 13.6
Compression Ratio with 60cc chamber volume: 12.8
Compression Ratio with 64cc chamber volume: 12.1
Dome Volume: 6.5cc
Gram Weight: 438
Footnote: Solid dome design, Oil Rail Support is Included
Oversize: STD

Recommended Ring Set (Check Proseal listing to determine oil ring tension): J10008-4125-5
