FAST XR700 IGNITION CONVERSION KIT FORD V8,ACCEL 34,DELCO 4,6 & 8 COMP / FAST - 700-0226 (FAST700-0226) FAST700-0226

FAST XR700 IGNITION CONVERSION KIT FORD V8,ACCEL 34,DELCO 4,6 & 8 COMP / FAST - 700-0226 (FAST700-0226)

Suit Domestic 4, 6 & 8 Cylinder and VW/Bosch "009" Distributor Applications
SKU: FAST700-0226
Contact for availability
$265.40 - $265.40
$265.40
$265.40 - $265.40
$265.40
+ GST
Stock Status: 🛑 Sold out — please contact for availability

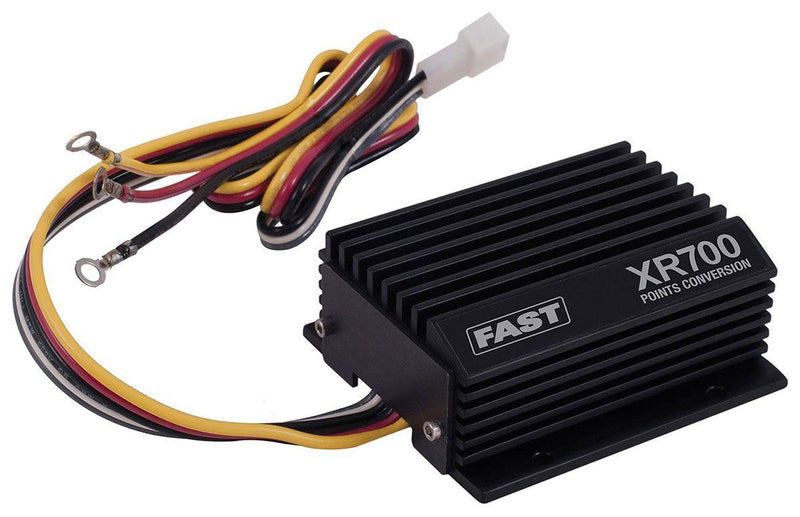

XR700 IGNITION CONVERSION KIT

Suit Domestic 4, 6 & 8 Cylinder and VW/Bosch "009" Distributor Applications

Part Number: FAST700-0226

Operating voltage

  • 6 to 18 volts, reverse polarity protected, negative or positive ground. Not compatible with 6 volt electrical systems as these may drop below 4 volts during cranking

Coil current limit

  • 4.5 amps (externally limited by ballast resistor on XR700). Internal short circuit protection limit set at 7 amps

RPM range

  • 6,000 RPM (RPM range higher for 4 and 6 cylinder engines)

Primary voltage output

  • 400volts (inductive discharge)

Primary energy output

  • 60 millijoules with PS20/40 coil

Peak spark gap current

  • 60milliamps with PS20/40 coil

Sparkduration

  • 300 microseconds at 6,000 RPM

Dimensions

  • 3-1/2"L x3"W x 1-1/2"H, 1 lb
