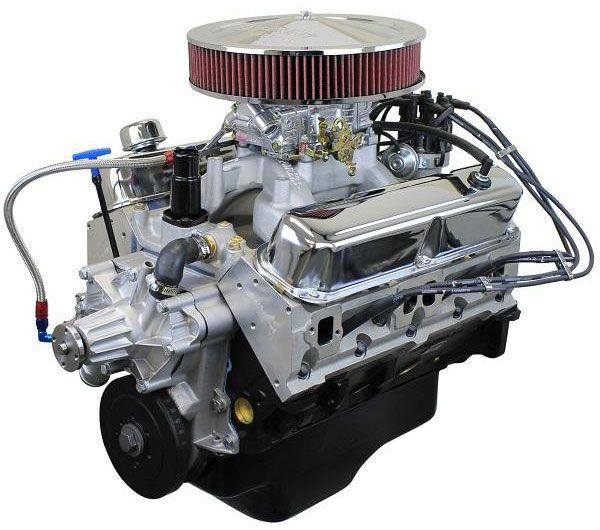

NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.

BLOCK:

• Hand picked seasoned Magnum block
• Square and parallel decked
• Align honed main bearing bore
• Cylinders honed on computer controlled machine to within .0002 straightness and roundness
• Cylinders are sonic tested for thickness
• 2-Bolt Main
• 4.000" Bored .040" over
• 2-Piece Rear Main Seal
• Mech fuel pump provision: Yes

ROTATING ASSEMBLY:

• New Steel crankshaft
• 4.000" Stroke
• Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
• Forged pistons
• External

CYLINDER HEADS:

• BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
• Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
• Aluminum Roller Rockers
• 2.02" intake/1.60" exhaust valves
• 176cc intake/75cc exhaust runners

CAM SPECS:

• Cam Type: Roller
• .580 Intake .577 Exhaust
• 235 Intake / 242 Exhaust duration
• @ .050 - 110 degree lobe separation

IGNITION TIMING:

• 34 degrees total at 4000 RPM

ALSO INCLUDES:

• Valve covers, oil pan and timing cover, Standard Rotation, Drive side inlet water pump and timing cover, plugs, wires, distributor, waterneck, thermostat, fuel pump and fuel line, harmonic balancer, air cleaner.
• Dyno test results shipped with engine

NOTES:

• Not for use in pollution controlled vehicles.
