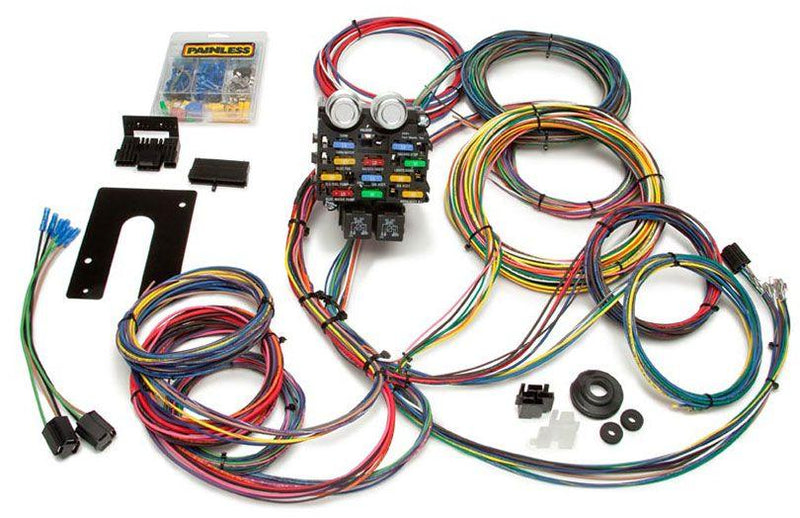

Painless 21 Circuit Universal Pro Street Harness Kit (PW50002)

PW50002 - PAINLESS PRO STREET HARNESS &

GM Keyed Column

Part Number: PW50002

If you want to keep your race car streetable and want to use all of your factory switches instead of a switch panel, this 21 circuit harness is for you. As with all of our chassis harnesses this kit has all the wires labeled and is pre terminated at the fuse block for easy installation. This harness includes an optional connector if you want to use a GM column mounted ignition switch. Also Included is a terminal assortment kit, with the necessary connectors for your turn signal switch, headlights, and alternator. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Number of Circuits:
21 Circuits - 12 Fuses w/ Horn Relay
Harness Length:
Universal
Fuse Type:
Blade & Maxi Fuse
Firewall Passthrough:
Grommet
Color Code Based:
GM
Circuit Designations:
Printed on Wires
This harness includes these circuits:
Accessory #1
Accessory #2
Brake Lights
Charging
Dome Light
Electric Fuel Pump #1
Electric Fuel Pump #2
Electric Water Pump
Emergency Flashers
Fan Relay Activation Power
Fused Power Source
Headlights
Horn
Ignition Coil
Park Lights
Radio and Gauges B+ *
Starting
Tail Lights
Third Brake Light
Turn Signals
Wipers
* Including wires for:
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
