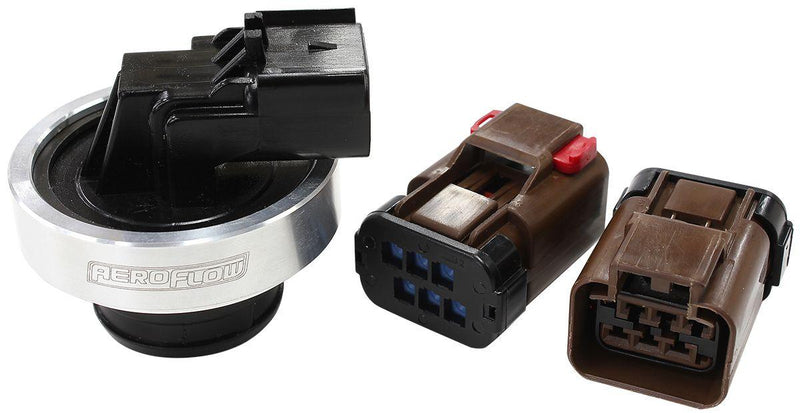

Aeroflow Electrical Bulkhead Connector (AF49-4049S)

With Steel Weld-On Ring
SKU: AF49-4049S
Save $6.71 Save $6.71
Original price $67.10
Original price $67.10 - Original price $67.10
Original price $67.10
Current price $60.39
$60.39 - $60.39
Current price $60.39
+ GST
Availability:
Available, allow for 2-10 days shipping

AF49-4049S - ELECTRICAL BULKHEAD CONNECTOR

With Steel Weld-On Ring

Part Number: AF49-4049S

The Aeroflow Performance weld-in electrical bulkhead 6 pin connector is a quality component to wire your fuel pump in your fuel cell project in a safe way to ensure no leaks or fumes escape. The connector kit is rated up to 30amp per pin to supply enough juice to power all aftermarket fuel pumps. The terminals are intended for use with 14-10AWG wires. The terminals are easily installed or de-pinned with ease using basic hand tools and each connector is separate making installation a breeze. This kit includes a weld-in Steel bung for the bulkhead connector, a Viton O- ring to seal the bulkhead to the bung, and a snap-ring to secure the bulkhead safely in place. Internal and external connectors are included, along with 12 crimp terminals. Max diameter of bung is 2.4" and Minimum Panel hole is 1.9".

Instructions
