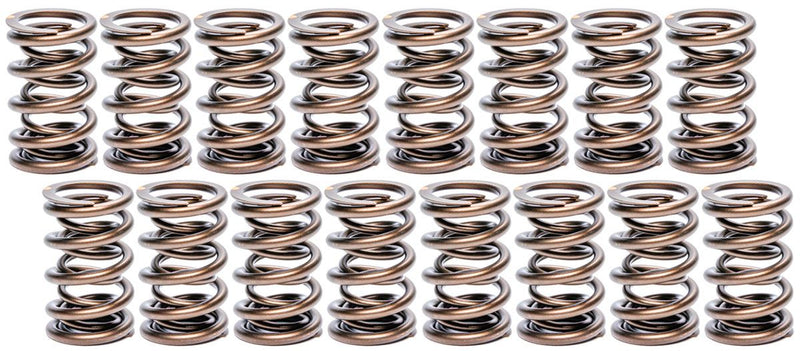

AFR Pac 1225 Valve Springs, 1.550" (AFR8001-16)

AFR Pac 1225 Valve Springs, 1.550" (AFR8001-16)

Set of 16
SKU: AFR8001-16
$1,058.40 - $1,058.40
$1,058.40
$1,058.40 - $1,058.40
$1,058.40
+ GST
Stock Status: ⚠️ Low stock — contact before purchasing

PAC1225 VALVE SPRINGS 1.55" OD

Set of 16

Part Number: AFR8001-16

Spring Specifications:

Outside Diameter:1.550"
Outer Spring ID: 1.100"
Middle Spring ID: N/A
Damper:No
Inner Spring ID: 0.788"
Install Height: 2.000"
Load at Installed Height: 250lbs
Spring Open Height: 1.200"
Spring Open Load: 765lbs
Recommended Valve Lift: 0.800"
Spring Rate (lbs/in): 644lbs
Coil Bind (max): 1.150"
