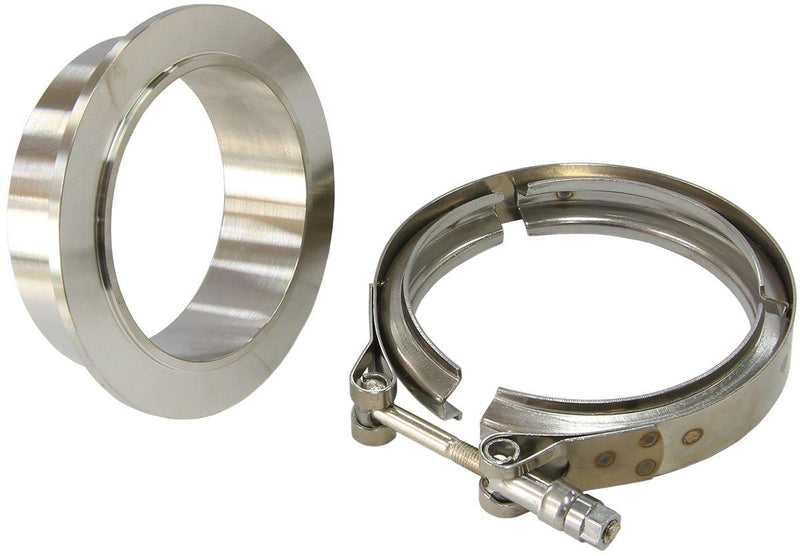

Aeroflow Boosted Compressor Outlet 4.24" O.D Stainless Steel V-Band Kit (AF8080-1015)
Suit Boosted7075, 7675, 7975 & 8077 Turbochargers4.24" O.D SS BOOSTED VBAND KIT
Suit Boosted7075, 7675, 7975 & 8077 Turbochargers
Part Number: AF8080-1015
These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.
Note: Molygrease all threads before installation and removal.
Material is 304 Stainless Steel.
Suits Boosted Turbocharger Compressor Outlet Flange.
Replacement V-band clamp isAF8080-3002.
AF8080-1015 Aeroflow Performance V-Band Suits Boosted Turbos below:
- AF8005-4004 / AF8005-4004BLK
- AF8005-4005 / AF8005-4005BLK
- AF8005-4007 / AF8005-4007BLK
- AF8005-4010 / AF8005-4010BLK
- AF8005-4011 / AF8005-4011BLK
- AF8005-4012 / AF8005-4012BLK
- AF8005-4013 / AF8005-4013BLK
- AF8005-4015 / AF8005-4015BLK
- AF8005-4110 / AF8005-4110BLK
- AF8005-4111 / AF8005-4111BLK
- AF8005-4112 / AF8005-4112BLK
- AF8005-6000 / AF8005-6000BLK
Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 75mm (2-64/64").
- V-Band Weld on Ferrule Outside Diameter - 107.9mm (4-1/4").
- V-Band Weld on Ferrule Lip Outside Diameter - 82.2mm (2-15/64").
- Suits Exhaust Tube Outside Diameter - 91.05mm (3-37/54").
