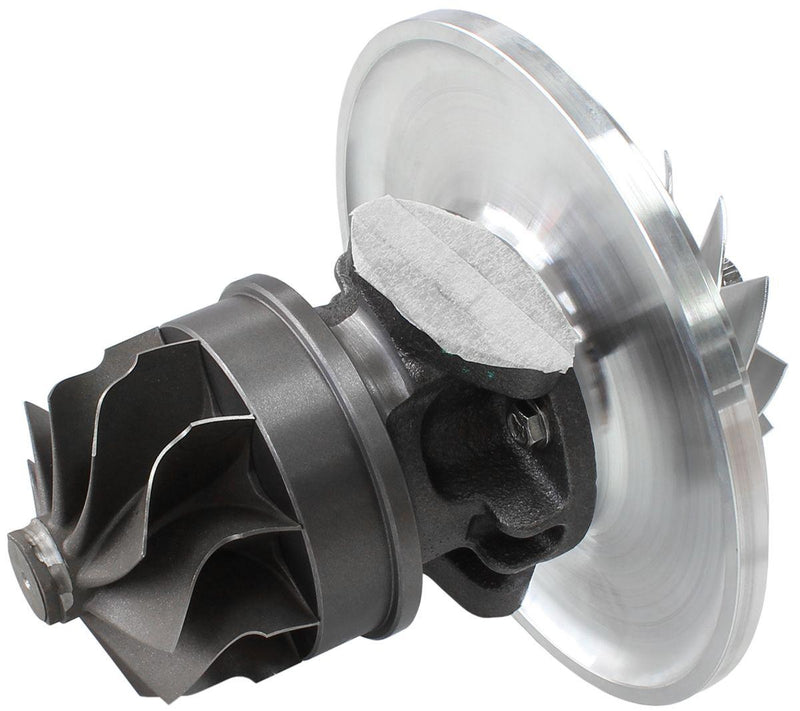

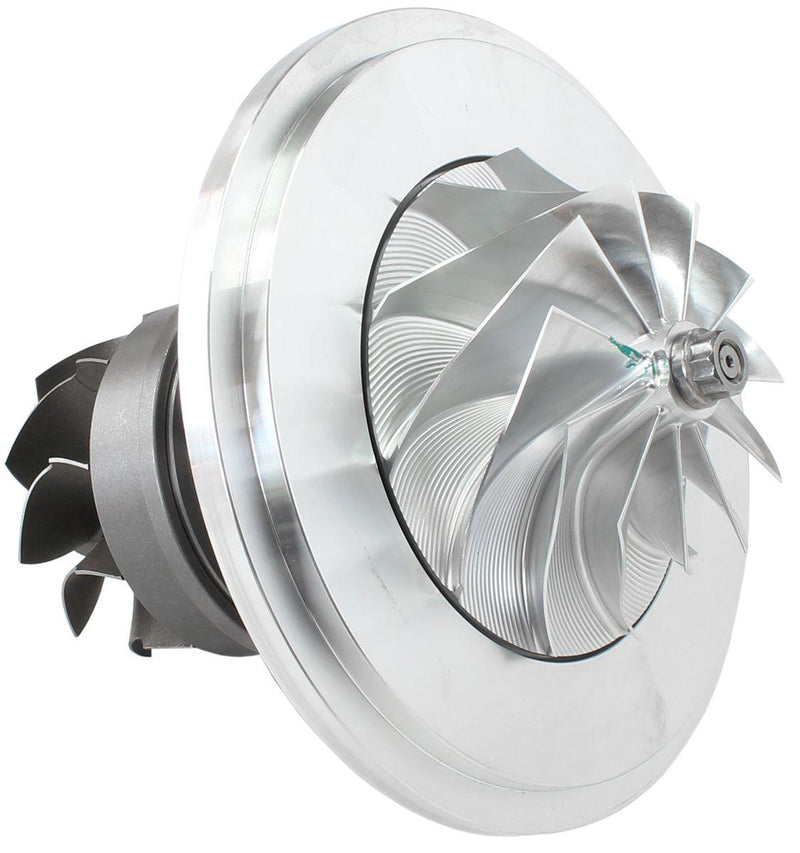

Aeroflow BOOSTED 7875 Turbocharger Core Only (AF8059-4510)
Dual Ball Bearing, No Housing7875 CORE ONLY CHRA JOURNAL
Dual Ball Bearing, No Housing
Part Number: AF8059-4510
Boosted Turbocharger Replacement Core.
As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hapthat has damaged either of thewheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands thathave a similar core design.
Specifications: BOOSTED 7875 (Generation 1) Core Specifications
Recommended horsepowerrating: 500-1050HP
Recommended engine displacement: 2.0L to 6.0L
- 360° journal bearing
- Point Milled 7075 billet compressor wheel
- External wastegate sold separately
- Inlet flange gasket and turbo drain gasket included inturbo kit
- Must use a -6AN oil feel line to maintaincore temperature (Warranty
VOID
if not used)
- 1/8" NPT oil feedfitting (sold separately) or a38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange withM8 x 1.25mm thread size
Compressor Specifications
Inducer: 78.13mm
Exducer: 102.40mm
Extended Tip: 106.30mm
Turbine Specifications
Inducer: 82mm
Exducer: 75mm
Wastegate
External wastegate
Important Information: Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
Boosted360° journal bearing turbochargers must use a -6AN oil feel line to maintain coretemperature.
