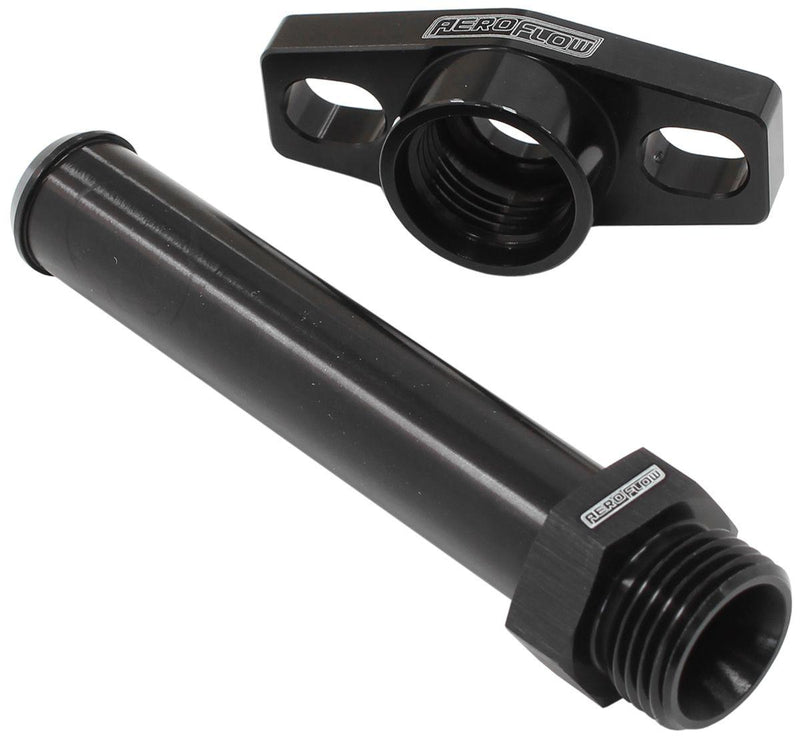

Aeroflow Turbo Drain Adapter (AF463-09) AF463-09

Aeroflow Turbo Drain Adapter (AF463-09)

With 100mm x 16mm Barb, 38-44mm Hole Centres. Black Finish.
SKU: AF463-09
$66.50 - $66.50
$66.50
$66.50 - $66.50
$66.50
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

TURBO DRAIN ADAPTER 16MM BARB

With 100mm x 16mm Barb, 38-44mm Hole Centres. Black Finish.

Part Number: AF463-09

Turbo Oil Drain Adapter With O-Ring Seal.

-16mm Barb 4" (100mm) long tube with 38-44mm hole centresto suit turbos with 38mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil forboth bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the lifeof the hose.
