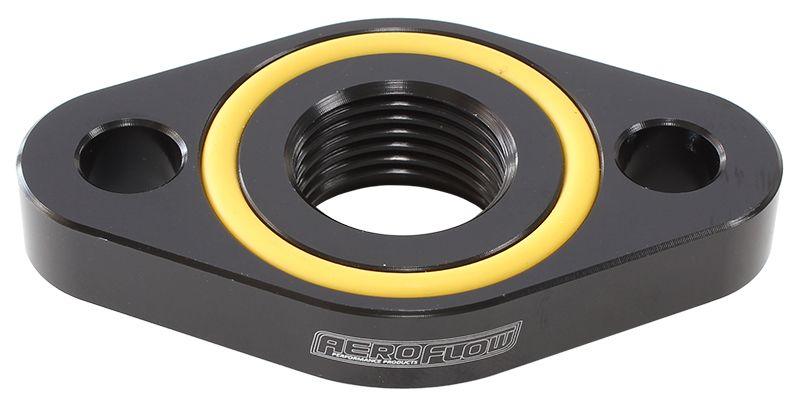

Aeroflow Turbo Drain Adapter (AF463-03) AF463-03
Aeroflow Turbo Drain Adapter (AF463-03)
Aeroflow Turbo Drain Adapter (AF463-03) AF463-03
Aeroflow Turbo Drain Adapter (AF463-03)

Aeroflow Turbo Drain Adapter (AF463-03)

-10AN ORB outlet, 52.4mm bolt centre, Black Finish
SKU: AF463-03
$45.60 - $45.60
$45.60
$45.60 - $45.60
$45.60
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

TURBO DRAIN ADAPTER -10 ORB

-10AN ORB outlet, 52.4mm bolt centre, Black Finish

Part Number: AF463-03

Turbo Oil Drain Adapter With O-Ring Seal.

-10 ORB female with 52.4mm hole centres to suit turbos with 52.4mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil forboth bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the lifeof the hose.
