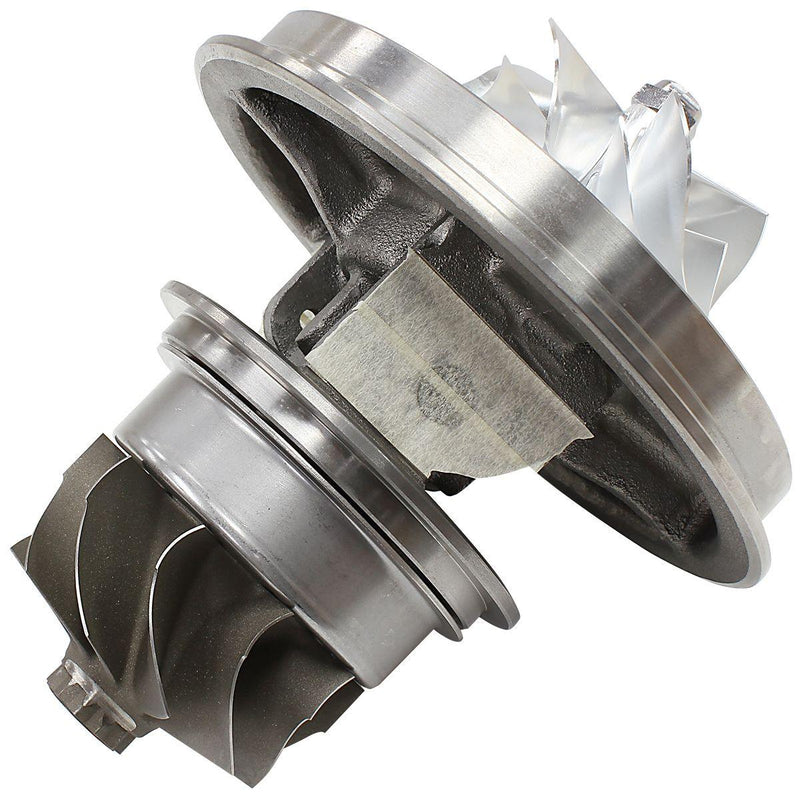

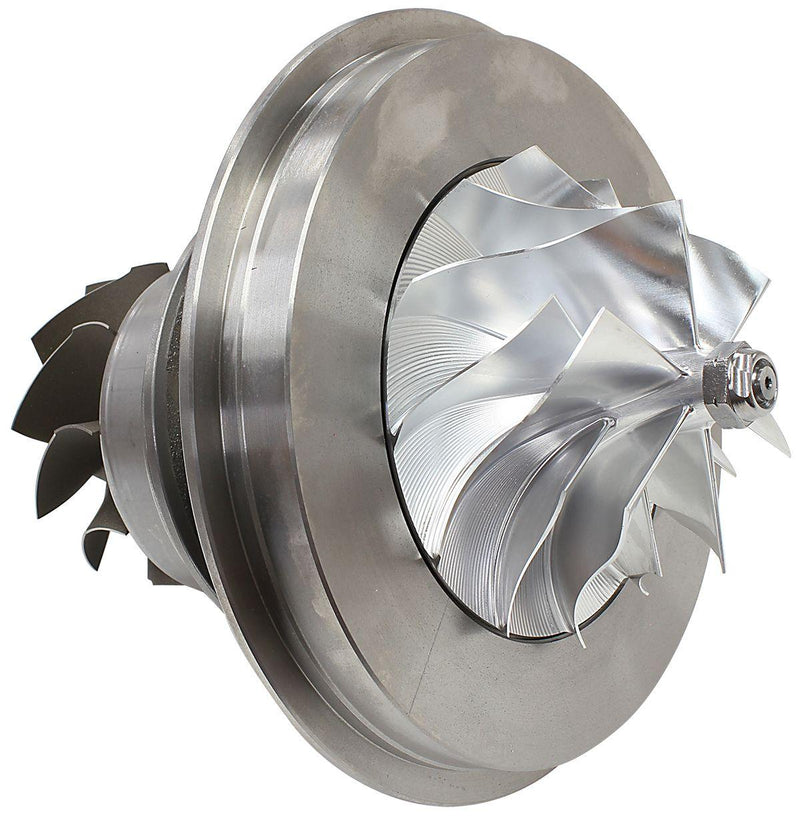

Aeroflow BOOSTED 8888 Turbocharger Core Only (AF8059-6501)
Journal Bearing, No Housing8888 CORE ONLY CHRA JOURNAL
Journal Bearing, No Housing
Part Number: AF8059-6501
Boosted Turbocharger Replacement Core.
As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hapthat has damaged either of thewheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands thathave a similar core design.
Specifications: BOOSTED 8888 Core Specifications
Recommended horsepowerrating: 1200-1600HP
Recommended engine displacement: 3.0L to 7.0L
- 360° journal bearing
- 7075 billet 7 + 7 compressor wheel
- This is an oil cooled turbocharger
- External wastegate sold separately
- Must use a -6AN oil feel line to maintaincore temperature (Warranty
VOID
if not used)
- 1/4" NPT oil feedfitting (sold separately) or a38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange withM8 x 1.25mm thread size
Compressor Specifications
Inducer: 88mm
Exducer: 117.36mm
Extended Tip: 124.40mm
Turbine Specifications
Inducer: 95.71mm
Exducer: 88mm
Wastegate
External wastegate
Important Information: Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
Boosted360° journal bearing turbochargers must use a -6AN oil feel line to maintain coretemperature.
