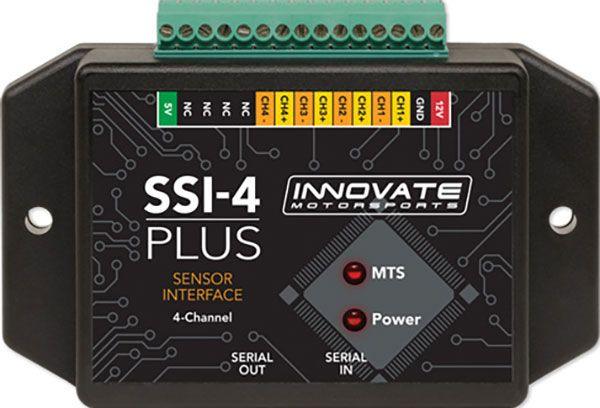

Innovate SSi-4 Plus (IM3914)

IM3914 - SSI-4 PLUS SENSOR INTERFACE

4-Channel Sensor Interface

Part Number: IM3914

The SSI-4 PLUS includes the SSI-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices), and manual. P/N 3914
The SSI-4 PLUS will allow the capture of data from 4 external sensors. These sensors can be frequencies such as engine RPM and speed sensors or 0-5V references like MAP sensors and pressure transducers. The SSI-4 PLUS may be used as a stand-alone system or integrated with other Innovate Motorsports MTS products to create a log chain.
Simple sensor device that adds 4-inputs to an MTS Log Chain
Channel 1 and 2 inputs can be configured for RPM, Speed (VSS), Frequency, and 0-5 volt. In addition to the above, the channel 2 input can be used for duty cycle or dwell.
Channel 3 and 4 inputs can be used for 0-5 volt
5 volt output to power external sensors
