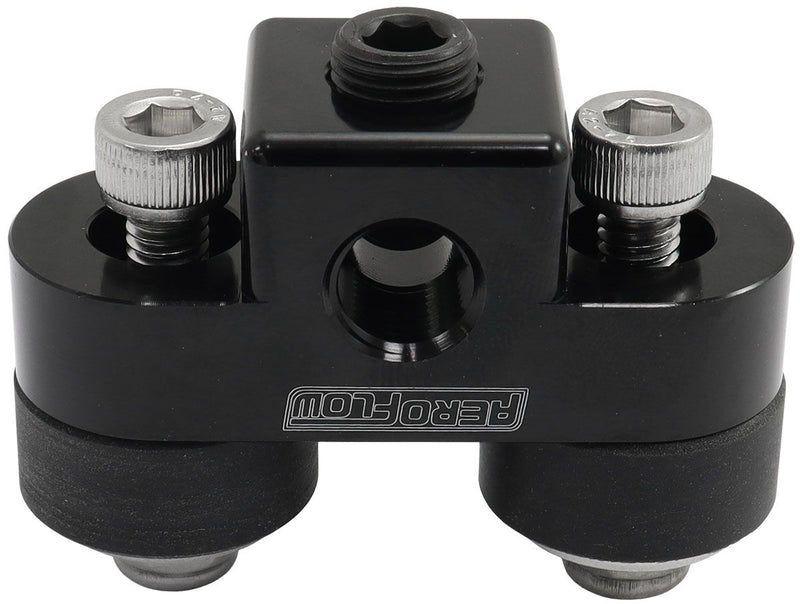

Aeroflow Pressure Sensor Block - Black Finish (AF456-01BLK)
3x 1/8" NPT PortsAF456-01BLK - PRESSURE SENSOR BLOCK BLACK
3 x 1/8" NPT Ports
Part Number: AF456-01BLK
The Aeroflow Performance Pressure Sensor Block is a must to protect your transducers from harsh engine vibrations, shock loads and heat leading to premature failure to the sensitive internals of the modern day pressure sensors when mounting directly to engine blocks. To prolong the life and reliability remote mounting these sensitive pressure sensors is recommended to improve service life and reliability. This block will allow you to remote mount up to 1 sensor with 3 x 1/8" NPT ports to choose from. This block includes rubber mounts to help protect the sensor from the harsh vibrations of the vehicle. Compatible with all transducers that utilize 1/8" NPT male threads.
Specifications: Dimensions:
Body Length - 55mm
Body Width - 22mm
Body Height - 35mm
Rubber Mount Height = 10mm
Rubber Mount Diameter = 22mm
