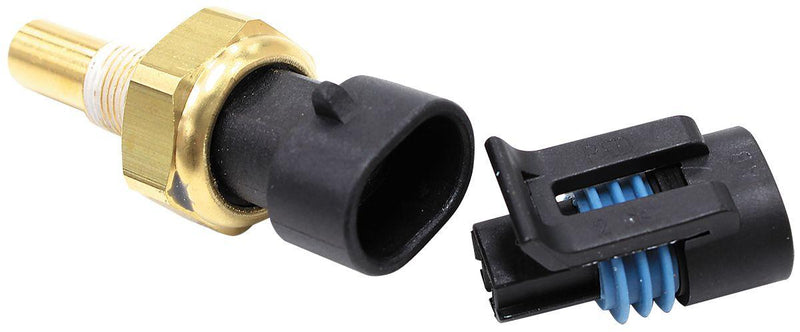

Aeroflow Temperature Sensor 0-150°C (AF49-1550) AF49-1550

Aeroflow Temperature Sensor 0-150°C (AF49-1550)

1/8" NPT Thread
SKU: AF49-1550
$89.50 - $89.50
$89.50
$89.50 - $89.50
$89.50
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

TEMPERATURE SENSOR 0 - 150 C

1/8" NPT Thread

Part Number: AF49-1550

The Aeroflow Performance temperature sensor is a Negative Temperature Coefficient (NTC) thermistor sensor. The NTC is a passive resistor, and the resistance of an NTC varies with temperature. More specifically, as the ambient temperature around an NTC increases, the resistance of the NTC decreases. This sensoris fully calibrated for high accuracy and designed for highstability across the temperature range. It includesthe plug and pins to easily wire into any application.

  • This sensor has a 1/8" NPT thread
  • The sensor bodymaterial is Brass
  • Overall length is 51.70mm
  • Depth of sensor is 22.20mm
  • Operating temperature range is -20 to 150 degree Celsius
  • Supply workingvoltage is 5 volts
  • Response workingtime is 10 milliseconds
