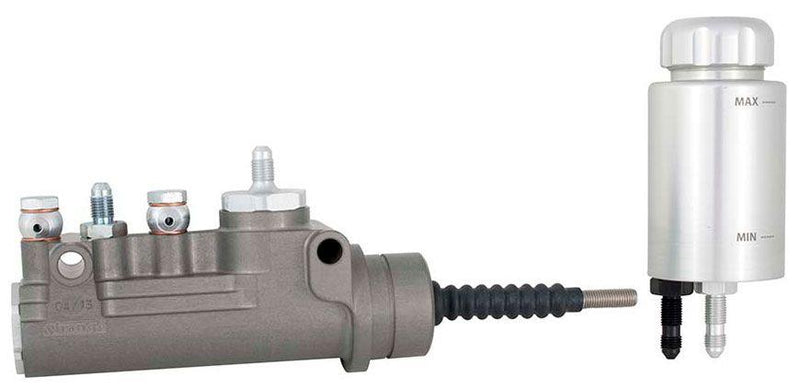

Strange Dual In-Line Master Cylinder & Remote Reservoir Kit (STB3370) STB3370

Strange Dual In-Line Master Cylinder & Remote Reservoir Kit (STB3370)

Suit Funny Car & Pro Mod / Doorslammer With .875" Bore
SKU: STB3370
$1,693.40 - $1,693.40
$1,693.40
$1,693.40 - $1,693.40
$1,693.40
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

DUAL IN-LINE F/CAR MASTER CYL

Suit Funny Car & Pro Mod / Doorslammer With .875" Bore

Part Number: STB3370

Kit Contains:

Dual In-line Fast Fill Master Cylinder

  • 6061-T6511 billet aluminum body
  • Hard anodized with PTFE coating
  • 1.123" primarybore initally moves a large volume of fluid to the rear brakes
  • .875" secondarybore takes over and applies high pressure to the rear brakes
  • Internal pop-off valve regulates this transition
  • 1.123" third bore supplies fluid onlyto the front brakes
  • Design eliminates the need for a proportioning valve
  • Brake line banjofittings with male 3 AN ends
  • 3 AN brake fluid inlet fittings
  • Side mount .375" holes on 3.750" centers

Remote Reservoir - B3370RK

  • 6061-T6511 billet aluminum reservoir
  • Clear anodized for corrosion resistance
  • Separate internal chambers for front & rear systems
  • External markings for Max / Min fluid levels
  • Threaded cap insures a tight seal to prevents leaks
  • Internal diaphragm allows for fluid displacement
  • Provided with two male 3 AN outlet fittings

Note: Silicone Brake Fluid Is Not Recommended
