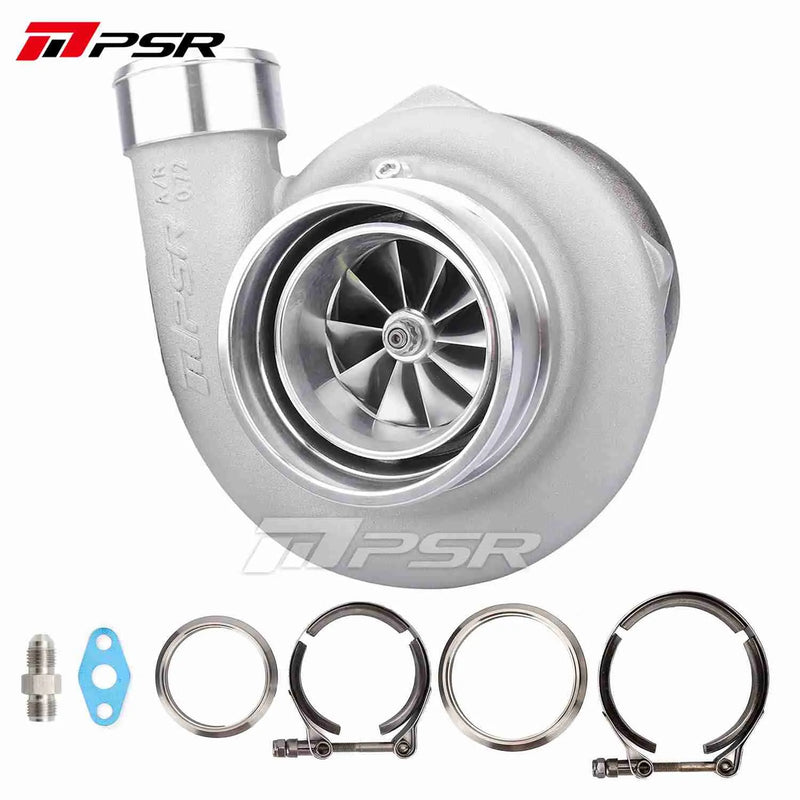

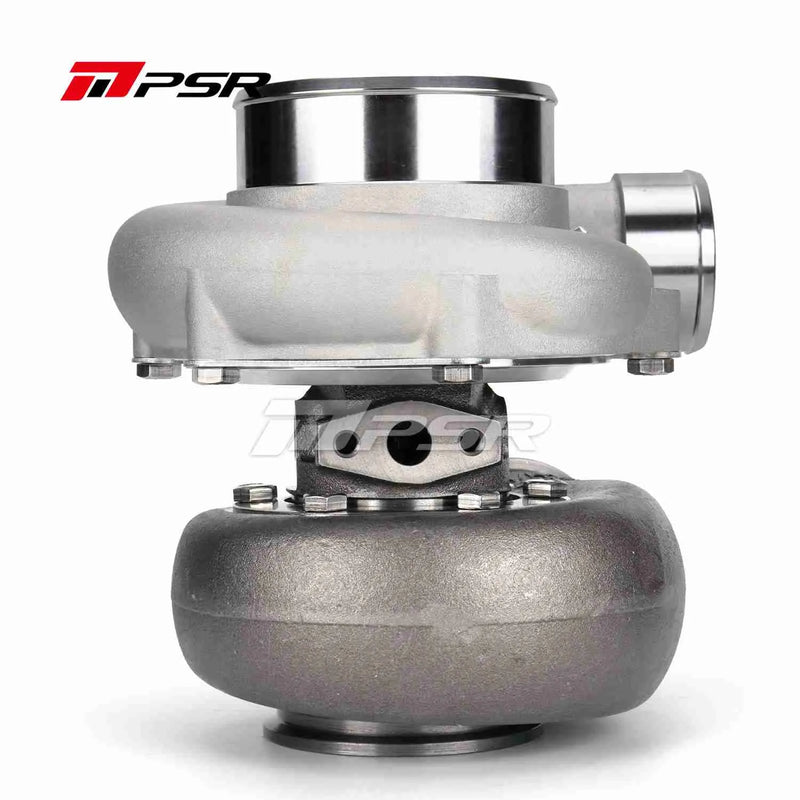

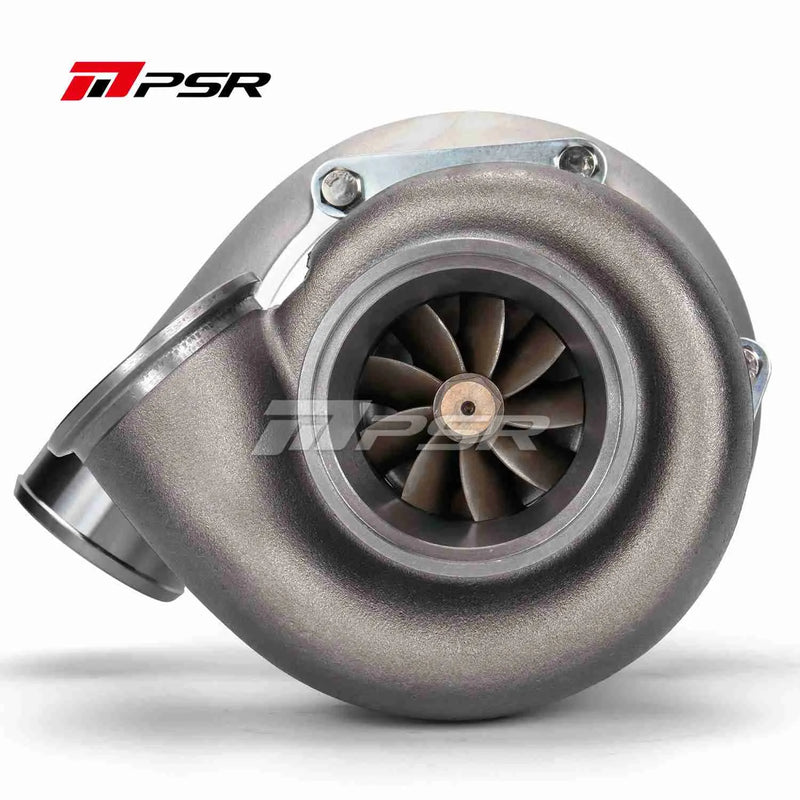

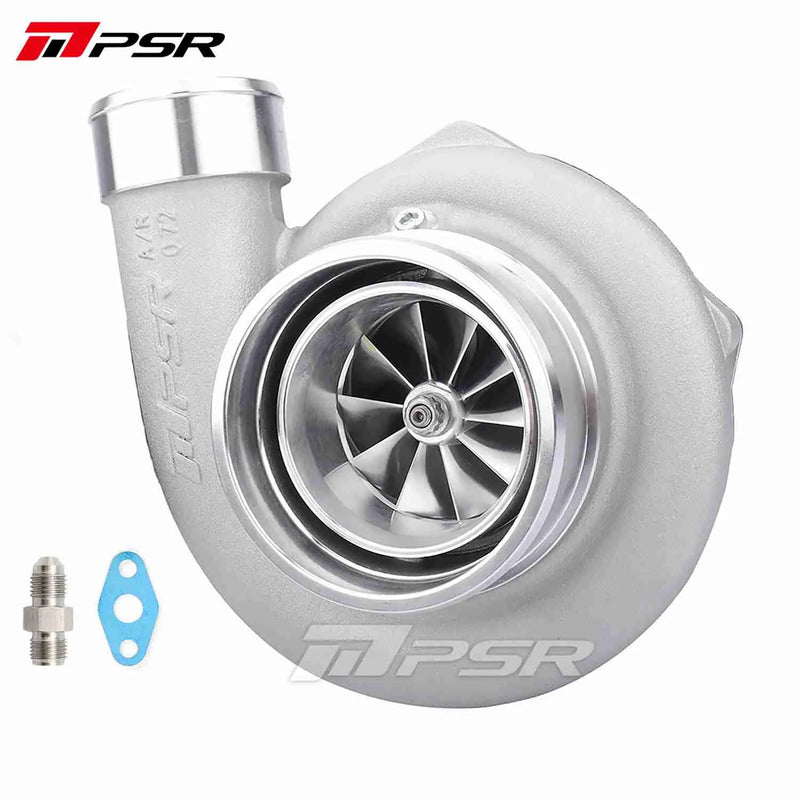

Pulsar PSR3584 Gen3 Dual Ball Bearing Turbocharger
SKU:
Original price
$1,239.00
-
Original price
$2,124.00
Original price
$1,239.00
$1,239.00
-
$2,124.00
Current price
$1,239.00
+ GST
Stock Status / Availability
This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
- Dual Ceramic Ball Bearing System

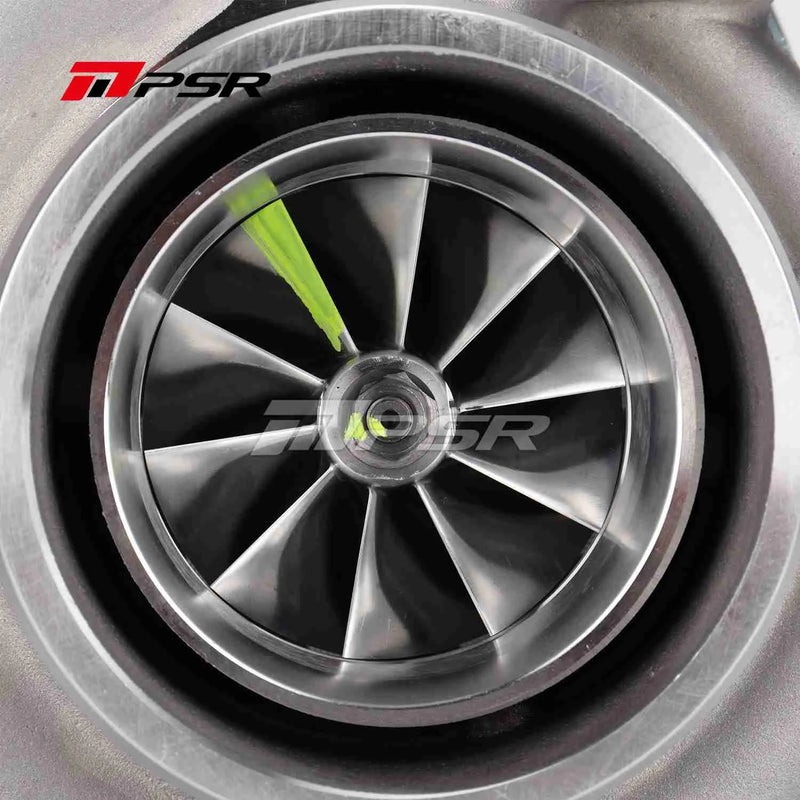

- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel with High Horsepower

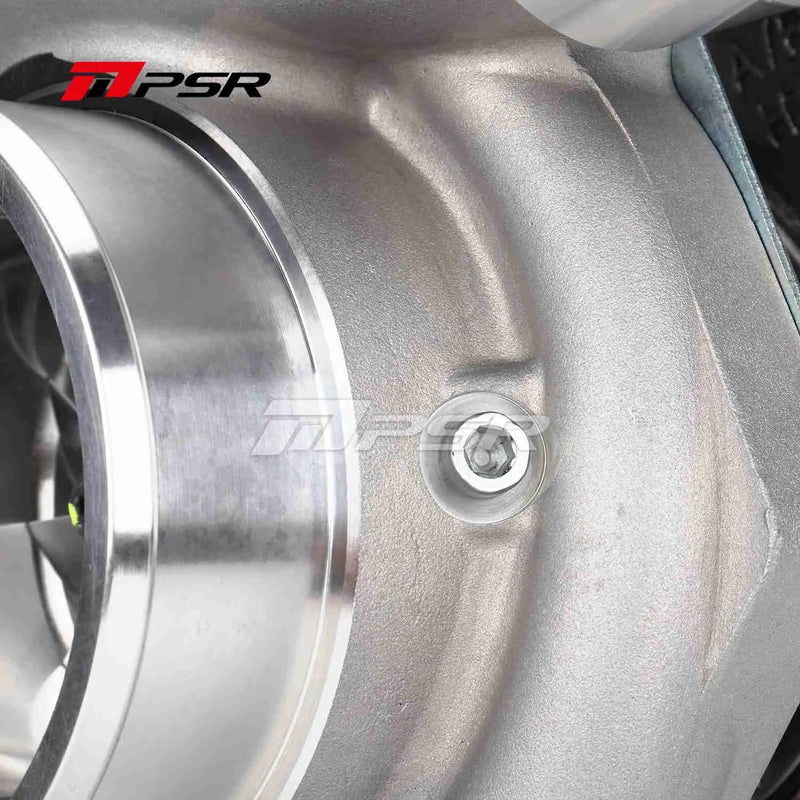

- Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
- Larger Turbine Wheel for Higher flow
Description:
- Compressor Wheel: 67*84mm
- Larger Turbine Wheel: 74*66mm
- Compressor Inlet: 4.0” Hose
- Compressor Outlet: 2.5” Hose
- Turbine Inlet: T3, T4, or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
- We highly recommended running water cooling for better durability
PSR3584 GEN3 TURBO comes with Larger Turbine Wheel for higher flow.
It has been tested and get more nearly 50 hp!
