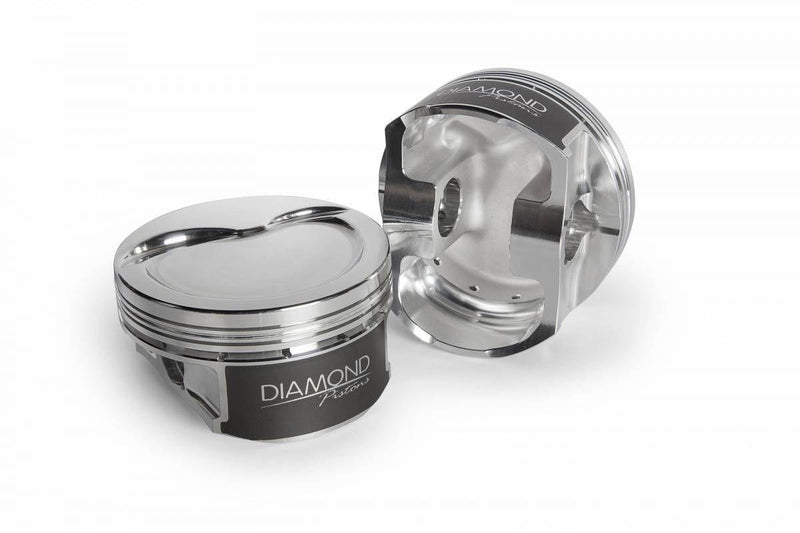

Diamond LSA Dish Top Forged Pistons With Rings (D1LSA-4075-R1-8)
4.075" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume
SKU: D1LSA-4075-R1-8
Original price
$3,518.00
-
Original price
$3,518.00
Original price
$3,518.00
$3,518.00
-
$3,518.00
Current price
$3,518.00
+ GST
Stock Status:
⚠️ Low stock — contact before purchasing
DIAMOND LSA 4.075" BORE 4.00"
4.075" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume
Part Number: D1LSA-4075-R1-8
- 3D milling on piston crowns for ready to install finish
- Valve pockets designed to work with most aftermarket cylinder heads
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .250"
- Ratios figured for .040 head gasket
- Premium 1.2mm x 1.2mm x 3.0mm ring package included
- Premium 8620 .185W wrist pins included
- Valve pocket depth: 0.178" intake and .108" exhaust
- 2618 material for High HP-NOS-Boost applications
