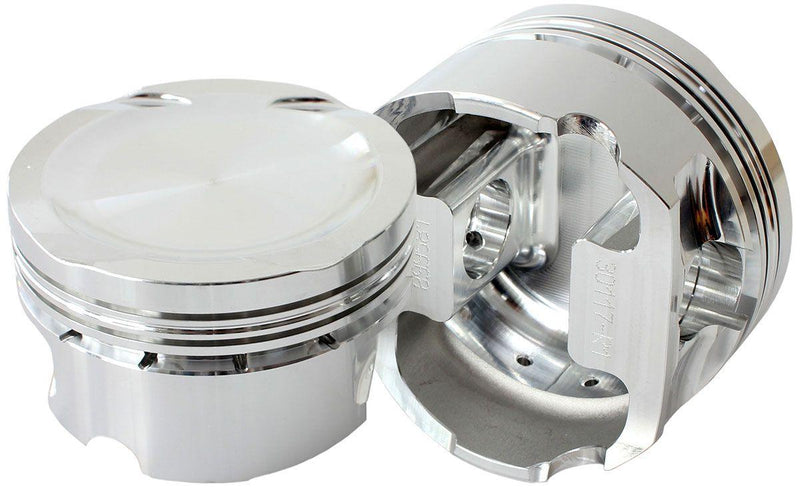

Diamond 5.0L Coyote Dome Top Forged Pistons With Rings (D30101-8) D30101-8

Diamond 5.0L Coyote Dome Top Forged Pistons With Rings (D30101-8)

3.640" bore, 3.650" stroke, 5.933" rod length, +8.0cc dome volume
SKU: D30101-8
Contact for availability
$2,311.30 - $2,311.30
$2,311.30
$2,311.30 - $2,311.30
$2,311.30
+ GST
Stock Status: 🛑 Sold out — please contact for availability

FORD 5.0L COYOTE 3.640" B +8cc

3.640" bore, 3.650" stroke, 5.933" rod length, +8.0cc dome volume

Part Number: D30101-8

Piston Specifications:

  • Block: 5.0L Coyote
  • Bore: 3.640
  • Stroke: 3.650
  • Rod: 5.933
  • Comp Heigh: 1.169"
  • Weight: 388
  • Pin: .866 x 2.500"
  • CC's: Dome Top 8.0
  • Comp Ratio With 57cc Head: 11.6
  • Ring Set: 09053640

Piston Features:

  • Designed to be used with 2011-17 5.0L Coyote cylinder heads
  • 3D milling on piston crowns for ready to install finish
  • Offset pins for quiet operation
  • Top ring down dimension: .300"
  • Ratios figured for .040 head gasket @ 8.937 Deck
  • Premium 1.5mm x 1.5mm x 3.0mm ring package
  • Premium 8620 .155W wrist pins included
  • Oversized valve pockets - for larger than stock valve sizes
  • Valve pocket depth: 0.075" intake and 0.075" exhaust
  • Made from 2618 alloy
