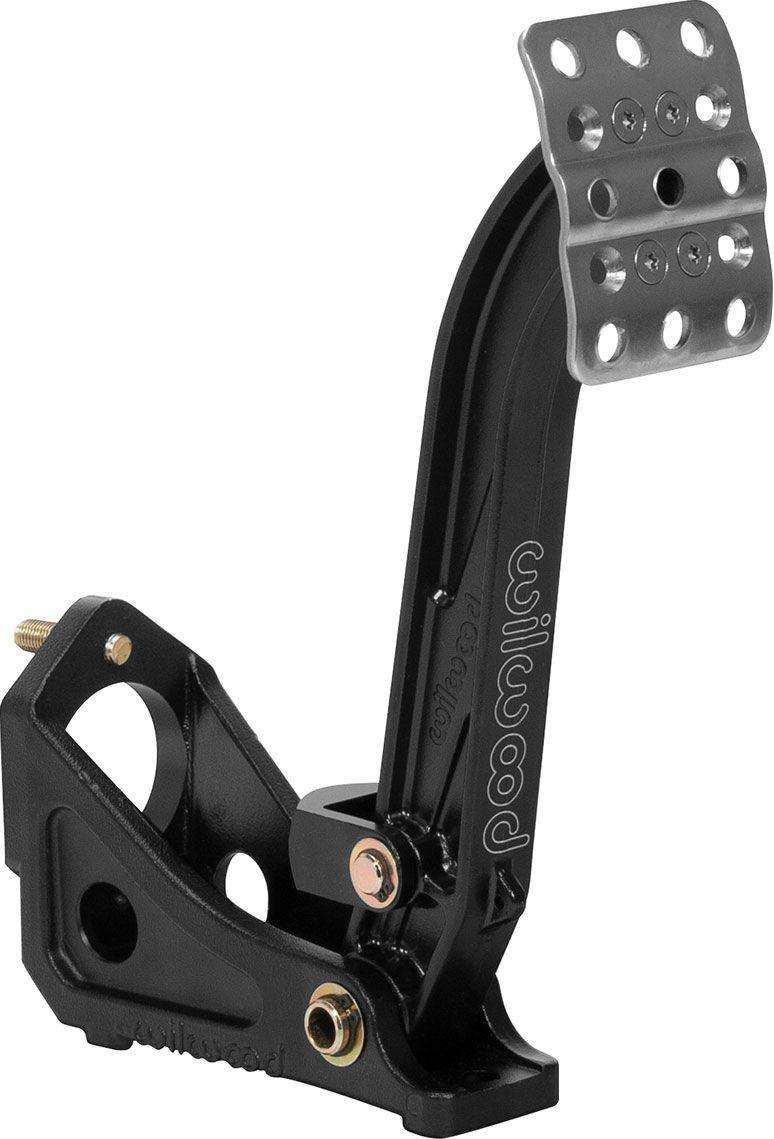

Wilwood Floor Mount Pedal Assembly (WB340-13833)

WB340-13833 - WILWOOD PEDAL SINGLE MASTER

Suit Brake/Clutch With Single Master Cylinder Mount, 6.0:1 Ratio

Part Number: WB340-13833

This floor mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size
Caution:
To use this pedal with a horizontal mount flange tandem outlet master cylinder, order adapter kit part number 250-3677.
Caution:
Four wheel brake systems require a two circuit, tandem outlet master cylinder. Single outlet master cylinders should not be used for those applications
