Wilwood 3 Pedal Floor Mount Assembly with Throttle (WB340-12411)

Wilwood 3 Pedal Floor Mount Assembly with Throttle (WB340-12411)

SKU: WB340-12411
$872.70 - $872.70
$872.70
$872.70 - $872.70
$872.70
+ GST
Availability:
Low stock, please contact before purchasing

WB340-12411 - WILWOOD 3 PEDAL FLOOR MOUNT

Part Number: WB340-12411

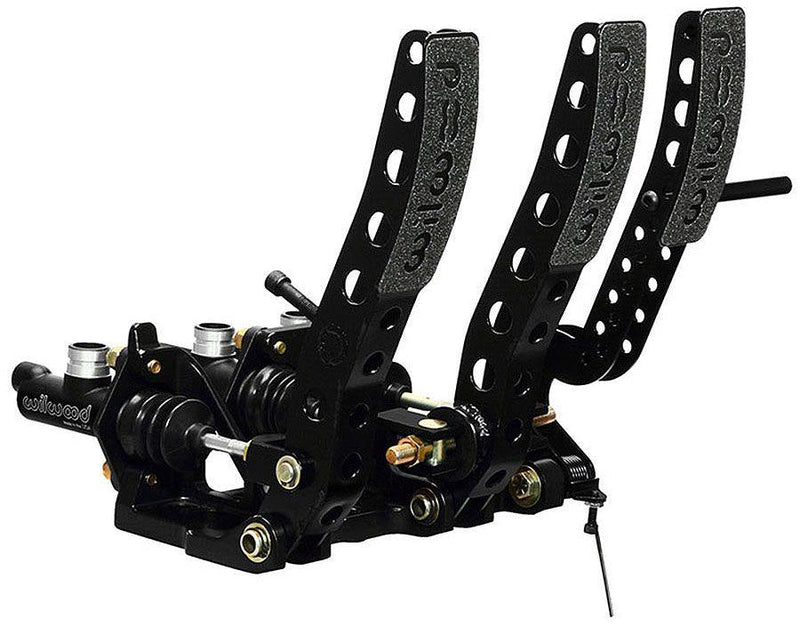

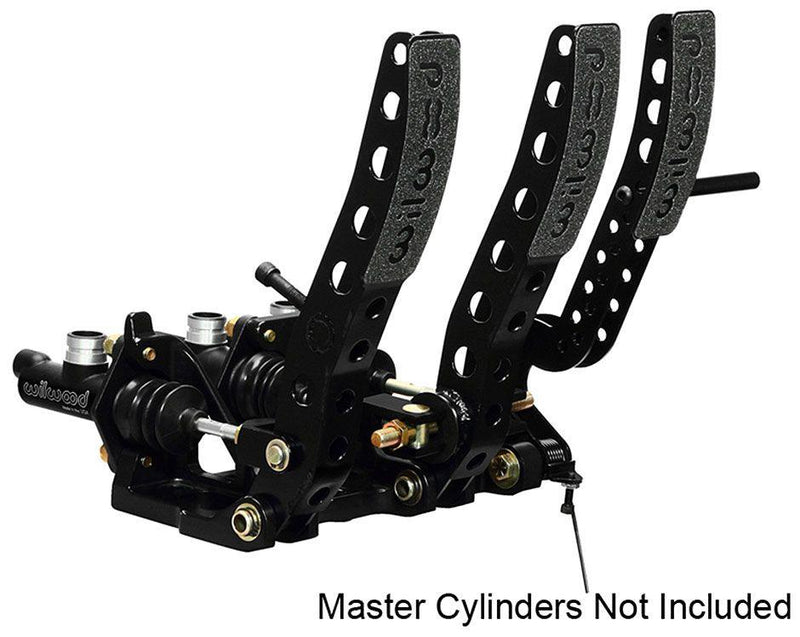

Wilwood's new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12411 is for front engine cars and includes a throttle bell crank and linkage assembly. This unit features an aluminium frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.
