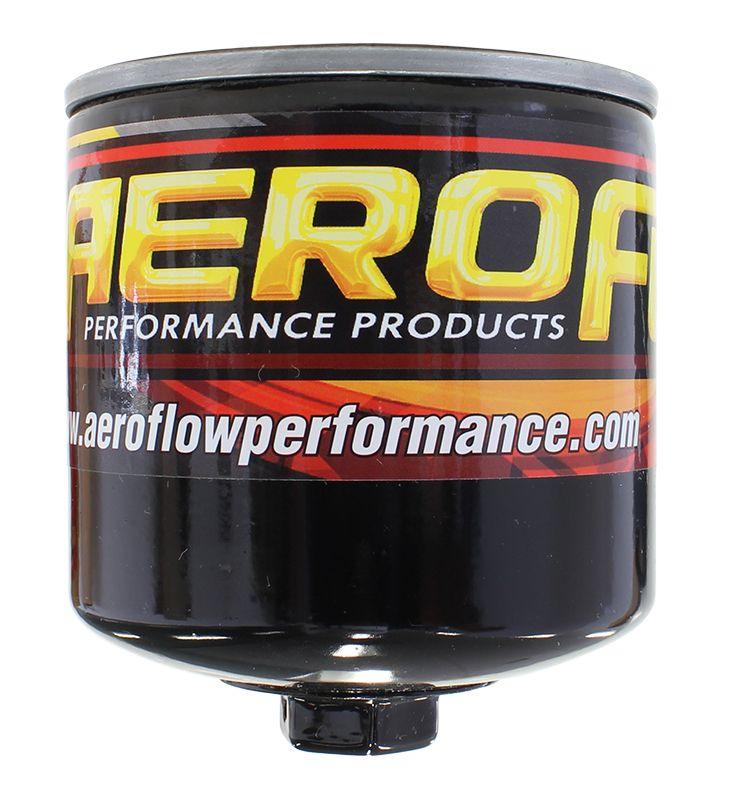

Aeroflow Oil Filter (AF2296-2010)

Ford (Z516) M22 x 1.5
SKU: AF2296-2010
Original price $26.50 - Original price $26.50
Original price
$26.50
$26.50 - $26.50
Current price $26.50
+ GST
Availability:
Available, allow for 2-10 days shipping

AF2296-2010 - OIL FILTER FORD FALCON BA-FG

Ford (Z516) M22 x 1.5

Part Number: AF2296-2010

Aeroflow Oil Filters combine durability and easy removal in the new high performance filters. Originally designed for racers, these oil filters use an improved coil spring design and feature an extra-thick backing plate which provides added protection against pressure surges in racing applications. Featuring a Buna-N rubber gasket, these filters are compatible with almost all racing fuels and lubricants. In terms of filtration, these filters have a premium pleated synthetic blend media which provides increased filtration at high flow rates with minimal pressure drop.
Featuring an unique louvered centre tube, this allows more flow area and eliminates media wear during pleat movement which increases flow. Having an easy hex release nut, use a 24mm or 15/16"" spanner/socket which will allow for simple and easy removal. Replace your tired old oil filter with an Aeroflow Oil Filter today! Engineered for performance and durability, thisis the new oil filter of choice for any application, street or track!
AF2296-2010 Vehicle Application (Z516):

FORD

Cougar, SW,SX 2.5L V6 (LCBC) 09/99-01/03
Courier (Petrol), PH & 4WD 4.0L V6 (13V) 02/05-06/05
Courier (Petrol), PH 4WD Series 2 4.0L V6 (13V) 07/05-06
Courier (Turbo Diesel), PH 2.5L L4 (WL) 07/04-12/06
Explorer, UT 4.0L V6 (XZA) 11/02-03
Explorer, UT 4.6L V8 (2ZA) 11/02-03
Explorer, UX 4.0L V6 (XZA) 03/03-11/03
Explorer, UX 4.6L V8 (2ZA) 03/03-11/03
Explorer, UZ 4.0L V6 (XZA) 03/03-01/08
Explorer, UZ 4.6L V8 (2ZA) 03/03-01-08
F250, RM 5.4L V8 (Triton) 07/01-03
F250, RN 5.4L V8 (Triton) 11/03-07
F350, RM 5.4L V8 (Triton) 07/01-03
Fairlane, BA Series 1-2 5.4L V8 (Barra 220) 07/03-09/05
Fairlane, BF 4.0L L6 (Barra 190) 10/05-07
Fairlane, BF, BF G8 5.4L V8 (Barra 230) 10/05-07
Falcon, BA 5.4L V8 (Barra 220) 09/02-09/05
Falcon, BF 5.4L V8 (Barra 220) 4/08
Falcon, BF Series 1-2 4.0L L6 (Barra 190) 10/05-04/08
Falcon, FG 4.0L L6 (Barra 195) 05/08-On
Falcon, FG 5.4L V8 (Barra 290) 05/08-On
FPV (All Models), BA-FG 4.0L L6 & 5.4L V8 03/03-On
LTD, BA-BF 5.4L V8 06/03-07
Mustang Cobra, 4.6L V8 02/01-03/03
Territory, SY 2WD & 4WD 4.0L V6 10/05-On
B4000 Bravo, 4.0L V6 (14V) 09/05-06
B4000, 4.0L V6 (14V) 10/05-11/06
MPV, LW10G 2.5L V6 (GY-DE) 08/99-02
MPV, LW10J2 & LW10J3 3.0L V6 (MZ/AJ) 06/02-06
Tribute, YU08 3.0L V6 (AJ) 02/01-04
AF2296-2010 Filter Specification
Anti Drain Back Valve: Yes
Bypass Valve: Yes
Filter Material: High Flow Premium Media
Gasket Material: Nitrile Rubber
Height: 4 in (102 mm)
Outside Diameter: 3.656 in (93 mm)
PSI Relief Valve: 11-17
Removal Nut Size: 15/16"
Thread Specification: M22x1.5
