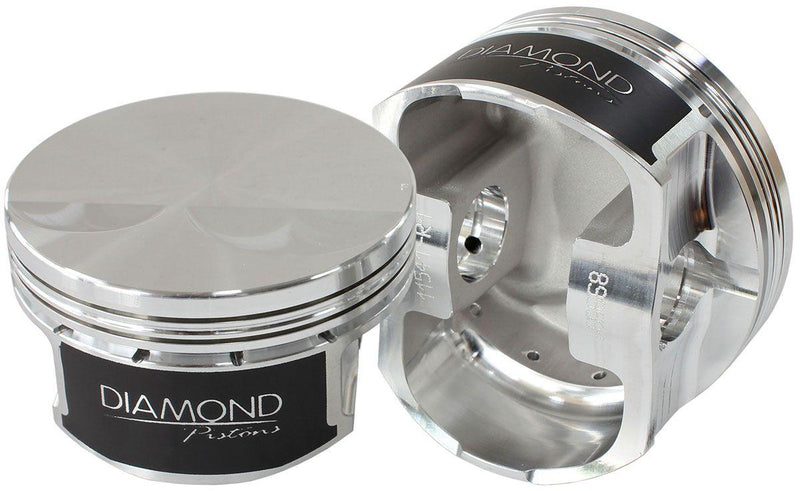

Diamond LS3/L92 Flat Top Forged Pistons With Rings (D11546-R1-8) D11546-R1-8

Diamond LS3/L92 Flat Top Forged Pistons With Rings (D11546-R1-8)

4.070" bore, 4.000" stroke, 6.125" rod length, -2cc dome volume
SKU: D11546-R1-8
$2,447.30 - $2,447.30
$2,447.30
$2,447.30 - $2,447.30
$2,447.30
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

DIAMOND LS3 4.070" B -2cc

4.070" bore, 4.000" stroke, 6.125" rod length, -2cc dome volume

Part Number: D11546-R1-8

Piston Specifications:

  • Block: LS3/L92
  • Bore: 4.070"
  • Stroke: 4.00"
  • Rod: 6.125"
  • Comp Heigh: 1.115"
  • Weight: 423
  • Pin: .927 x 2.500"
  • CC's: Flat Top -2.0cc
  • Comp Ratio With62cc Head: 12.6
  • Comp Ratio With 70cc Head: 11.4
  • Comp Ratio With 76cc Head: 10.7
  • Ring Set: 09454070

Piston Features:

  • 3D milling on piston crowns for ready to install finish
  • Valve pockets designed to work with most aftermarket cylinder heads
  • Offset pins for quiet operation
  • Moly skirt coating for friction loss and skirt wear protection
  • Top ring down dimension: .250"
  • Ratios figured for .040 head gasket
  • Premium 1.2mm x1.2mm x 3.0mm ring package included
  • Premium 8620 .185W wrist pins included
  • Valve pocket depth: 0.176" intake and .105"exhaust
  • 2618 material for High HP-NOS-Boost applications
