Wilwood Compact Remote Master Cylinder (WB260-13625)

Wilwood Compact Remote Master Cylinder (WB260-13625)

1" Bore, Side Mount, Banjo
SKU: WB260-13625
$181.30 - $181.30
$181.30
$181.30 - $181.30
$181.30
+ GST
Availability:
Low stock, please contact before purchasing

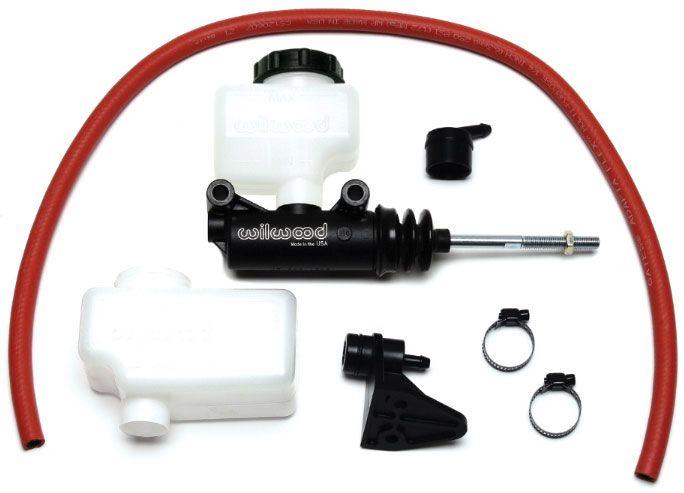

WB260-13625 - COMPACT REMOTE MASTER CYLINDER

1" Bore, Side Mount, Banjo

Part Number: WB260-13625

This new version of Wilwood's Compact Combination (Side Mount) Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37" compact body provides 2.16" of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00" center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminium body resists corrosion and maintains a durable long ting finish.
