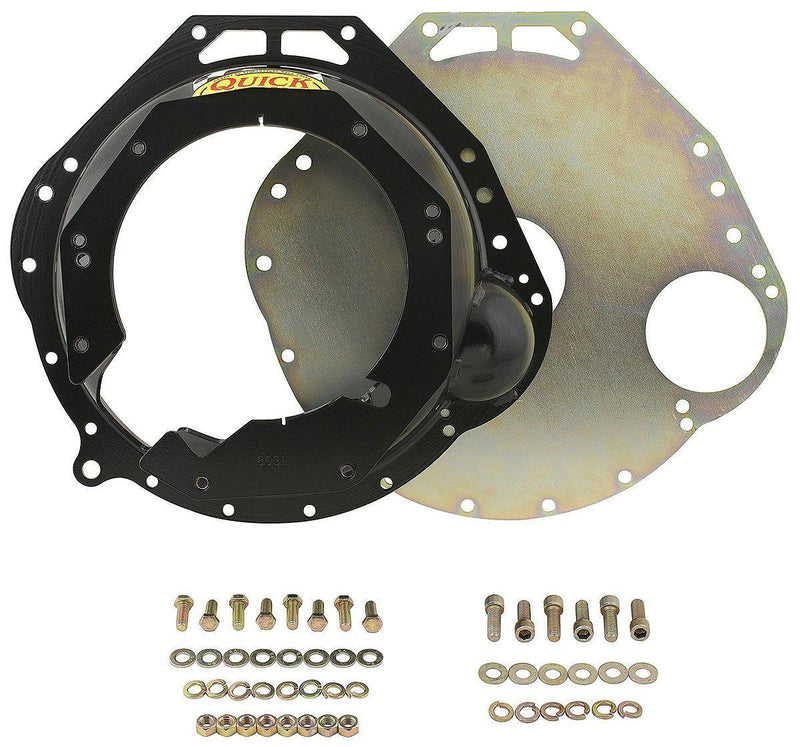

Quick Time Bellhousing, Hydraulic Clutch, 157 Tooth Flywheel, 5.332 in. Height, Manual Transmission, Steel, Black, For Ford 5.0/5.8L, Each (QTRM-8031)

QTRM-8031 - QUICKTIME BELLHOUSING SBF WIND

Suit SB Ford With T56 Ford Transmission, 157 Tooth, 10.5" Clutch

Part Number: QTRM-8031

Product Description:
This bellhousing fits 5.0/5.8 Ford to T56 Ford transmission (Fork @ 7:00).
Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.
Features & Benefits:
Built from high grade steel - work hardened to over 80,000 PSI strength. Over two times the strength of typical steel bellhousings. Bellhousing cone is spin formed not rolled or stamped. This process provides consistent wall thickness and incredible strength. Laser cut components are added to assembly and CNC machined with extreme precision to provide a bellhousing that is parallel & centered to within .003". Precision manufacturing method permits QuickTime bellhousings to be the most dimensionally stable bellhousing available, permits less drivetrain wear. Designed to be the lightest, strongest and most accurate bellhousing available.

Specifications:
Height: 5.34"
Trans. Universal Bore Diameter: T56 Ford
Engine: Small Block Ford
Clutch Diameter: 10.5"
Flywheel: 157 tooth
Weight: 22lbs
Hydraulic Bearing & fork, At 7.00 Position
Starter: OE

Transmission Application:

T56 Ford (Fork At 7.00 Position)
