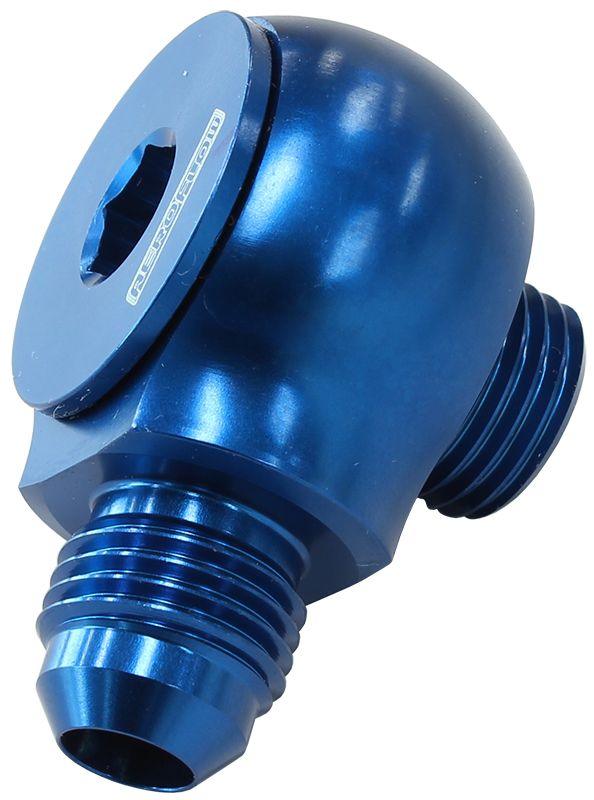

Aeroflow 90° Low Profile -10ORB to -6AN Male Adapter (AF909-06-10)

Aeroflow 90° Low Profile -10ORB to -6AN Male Adapter (AF909-06-10)

Blue Finish
SKU: AF909-06-10
$97.80 - $97.80
$97.80
$97.80 - $97.80
$97.80
+ GST
Availability:
Available, allow for 2-10 days shipping

AF909-06-10 - SLIMLINE -10ORB TO -6AN 90 DEG

Blue Finish

Part Number: AF909-06-10

Aeroflow now have available low profile 90 degree ORB to AN adapters that are perfect for tight clearance applications, they swivel 360 degrees allowing you get you’re desired position and are hi flow so not only are they low profile they do not restrict flow. Manufactured from 6061-T6 aerospace grade aluminium and available in Blue, Black and Silver anodised finishes. Supplied with Viton O-rings and available in straight and stepped sizing ranging from -6 to -12.

Specifications: Dimensions :
Height From O-Ring - 29mm
Overall Length - 52.30mm
Overall Width - 38.05mm
