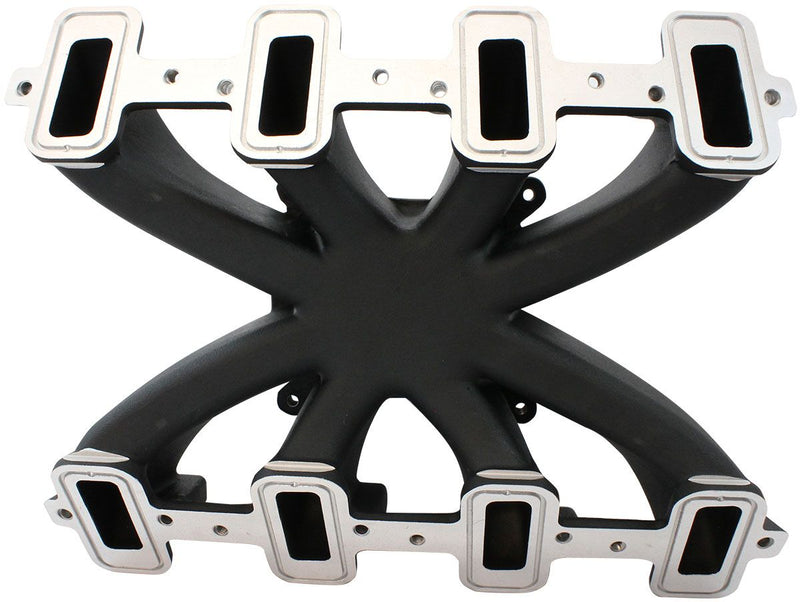

Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Black Finish (AF6240-5000) AF6240-5000
Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Black Finish (AF6240-5000)
Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Black Finish (AF6240-5000)
Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Black Finish (AF6240-5000) AF6240-5000
Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Black Finish (AF6240-5000)
Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Black Finish (AF6240-5000)

Aeroflow GM LS Cathedral Port Carburettor Street Single Plane Non-EFI Intake Manifold, Black Finish (AF6240-5000)

4 Barrell 4150 Square Bore Carburettor Pad
SKU: AF6240-5000
$750.80 - $750.80
$750.80
$750.80 - $750.80
$750.80
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

GM LS CARBY INTAKE MANIFOLD

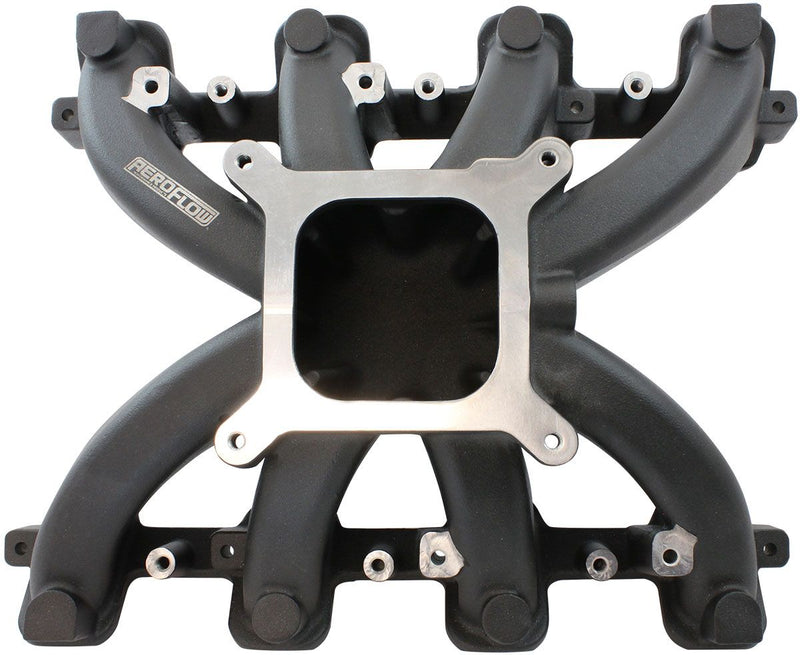

4 Barrell 4150 Square Bore Carburettor Pad

Part Number: AF6240-5000

Convert your GM LS engine from EFI to Non-EFI carburettor in retro-fit applications with this Aeroflow Performance Street low rise cast intake manifold.This single-plane intake manifold is designed to keep your air and fuel distributiongoing into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket4150 square-bore carburettors with either manual or electricchoke options available on today’s market. Specificallydesigned to suit GM LS Gen IIIand IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads.This product is intended for carburetted, throttle body EFI, or port EFI applications.

• Fits GM LS1/LS2 Cathedral PortEngines.

• Non-EFI Applications.

• Fits GM LS1/LS2 Engines.

• Single Plane Configuration.

• RPM operating range - 2500 to 7000.

• Black Finish.

Specifications: Manifold Specifications
- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 122mm (
Ensure to Check Bonnet Clearance
)
- Port Size: 0.95" x 2.45"
- Intake manifold gasket O-Ring (AF6233-5002).
- 5/16-18" carburettor studs (x4)
- 3/8" NPT port (x1)
- 6 x 5/16-18" Mounting Holes.

Intake Manifold Includes
- 8 x Intake Manifold O-Ring Gaskets (AF6233-5002)
- 4 x M6 x 1.00mm Hex Screws (80mm UHL)
- 6 x M6 x 1.00mm (50m UHL)
- 10 x M6 Flat Washers
- 1 x 3/8" NPT Steel Port Plug
