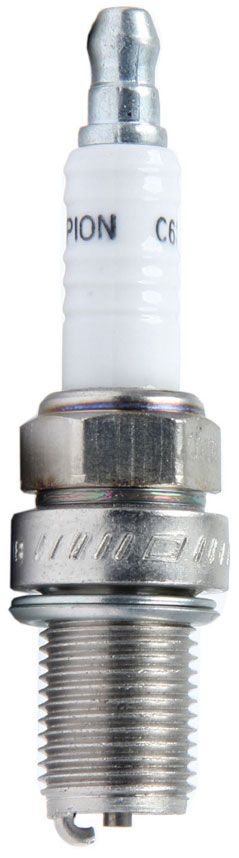

Champion Race Spark Plug 14mm (CHC63CX)

CHC63CX - CHAMPION - RACE SPARK PLUG

.750" Reach Gasket Seat, Cut Back Ground Non Projected

Part Number: CHC63CX

Spark Plug Specifications
Plug Type: C63CX
Seat Type: Gasket
Hex Size (Inch): 0.625
Hex Size (MM): 15.880
Thread Size (Inch): 0.551
Thread Size (MM): 14.000
Thread Reach (Inch): 0.75
Taper Diameter (Inch): N/A
Installed Height (Inch): N/A
Insulator Projection (Inch): N/A
Gap Style: Cut Back Ground Wire
Gap (Inch): 0.03-0.04
Gap (MM): 0.76-1.02
Center Electrdoe Diameter (Inch): 0.1
Center Electrode Material: Nickel Copper Alloy
Ground Electrode Material: Nickel Copper Alloy
Ground Electrode Quantity: 1
Classification: Champion Racing Plugs
Resistor plug: No
Resistor Type: N/A
Manufature Heat Range: 63
Electrical Terminal Type: Non-Removable Nut
