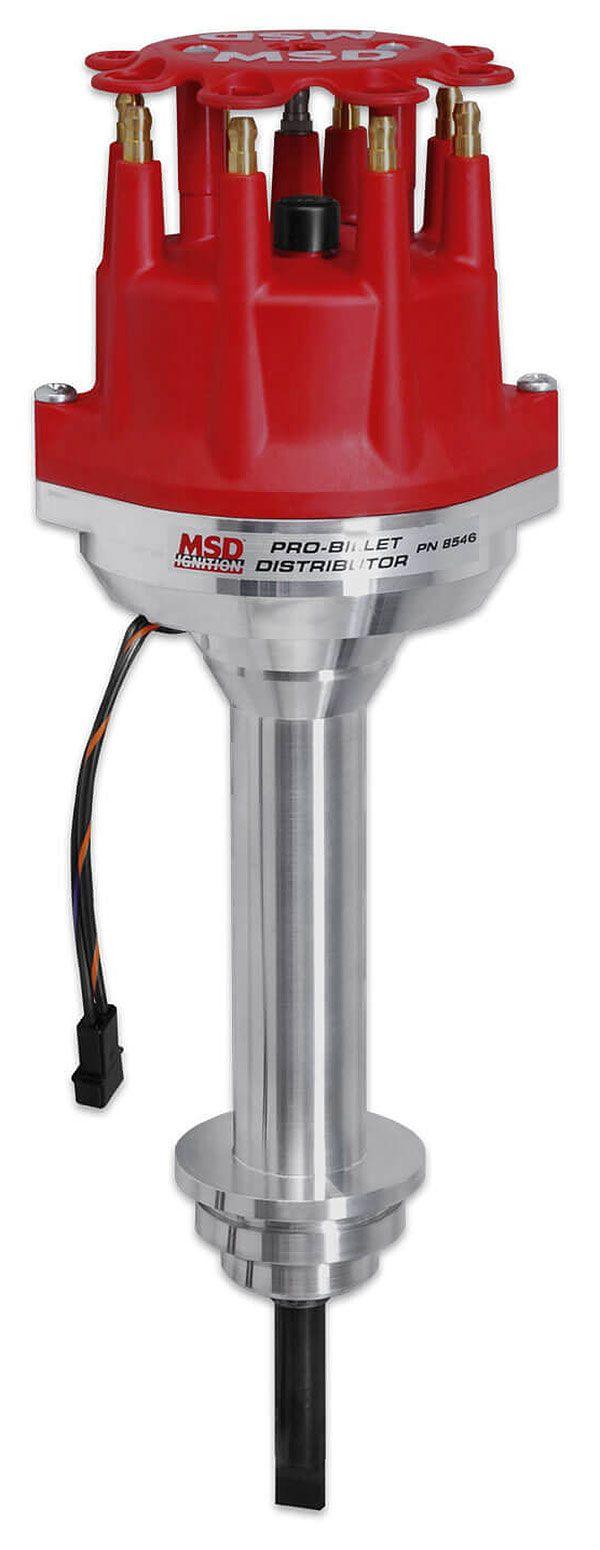

MSD Pro-Billet Distributor (MSD8546)

MSD8546 - BB CHRYS BILLET DISTRIBUTOR

Chrysler 413-426-440, Big Block B, Magnetic Trigger, Mechanical Advance

Part Number: MSD8546

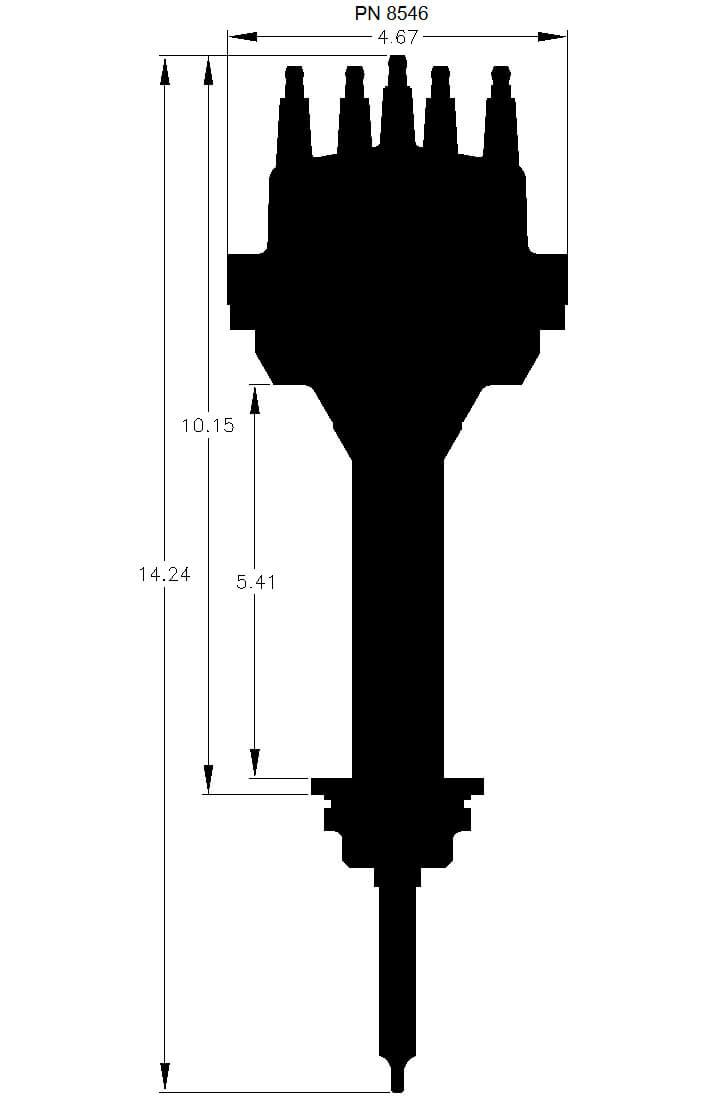

Smaller diameter CNC machined billet aluminium housing and billet aluminium base clears aftermarket heads and valve covers.
Easy-to-adjust mechanical advance with supplied springs and stop bushings.
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range.
Polished steel shaft is QPQ coated and guided by two sealed ball bearings.
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction.
Mechanical advance assembly can be locked out for crank trigger systems.
Advance weight pins are staked and tig welded to the plate.
Nylon pads ensure smooth operation of the advance weights.
Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt).
Must be used with an MSD 6, 7, 8 or 10 Ignition Control.
Does not accept a vacuum advance.
Since many Chrysler enthusiasts use the B1 head or aftermarket valve covers, these Pro-Billet Chrysler Distributors have been designed with a small diameter housing. This allows the distributors to fit tight block and head combinations. For accurate timing, a high output magnetic pick-up is used that plugs directly into your MSD Ignition Control. There is an easy-to-adjust mechanical advance mounted on top of each distributor and is easily tuned with an assortment of supplied advance stop bushings and advance springs.
