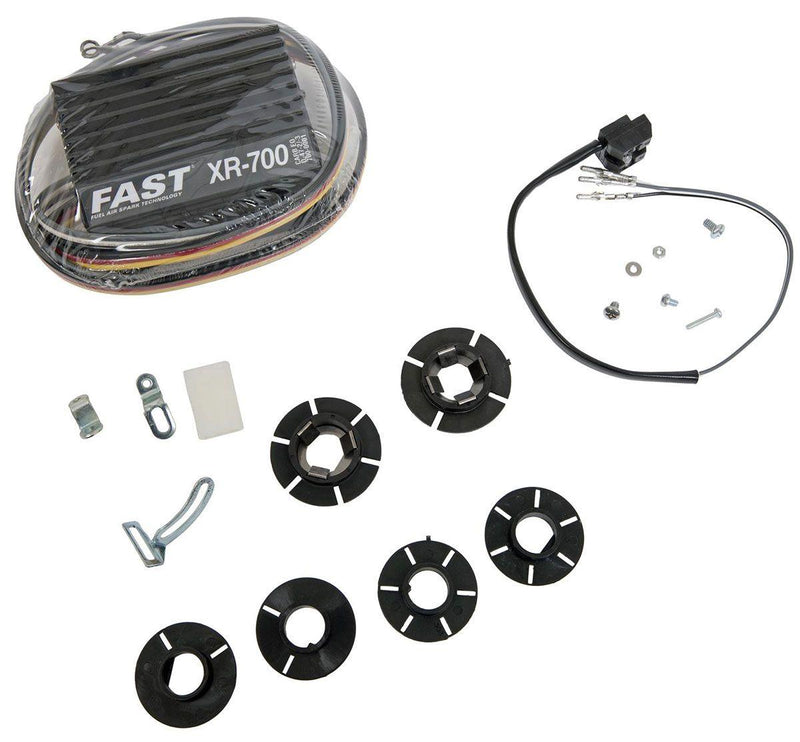

FAST XR700 Ignition Conversion Kit (FAST700-0292)

FAST700-0292 - XR700 IGNITION CONV KIT NIPPOD

Suit Replacement of Bosch, Hitachi & Nippondenso 4 & 6 Cylinder OE Electronic Ignition Modules

Part Number: FAST700-0292

Operating voltage
6 to 18 volts, reverse polarity protected, negative or positive ground. Not compatible with 6 volt electrical systems as these may drop below 4 volts during cranking
Coil current limit
4.5 amps (externally limited by ballast resistor on XR700). Internal short circuit protection limit set at 7 amps
RPM range
6,000 RPM (RPM range higher for 4 and 6 cylinder engines)
P rimary voltage output
400 volts (inductive discharge)
Primary energy output
60 millijoules with PS20/40 coil
Peak spark gap current
60 milliamps with PS20/40 coil
Spark duration
300 microseconds at 6,000 RPM
Dimensions
3-1/2"L x 3"W x 1-1/2"H, 1 lb
