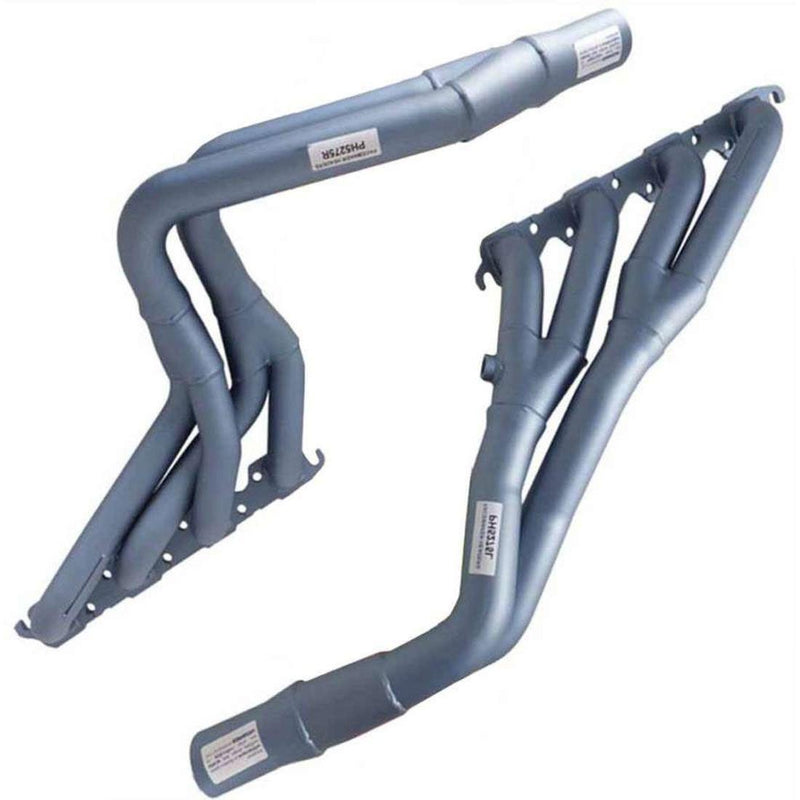

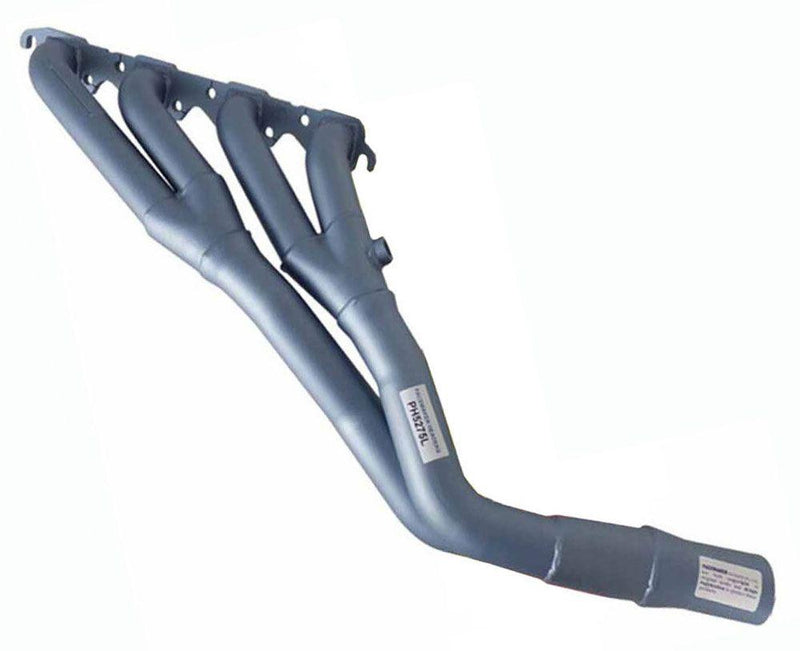

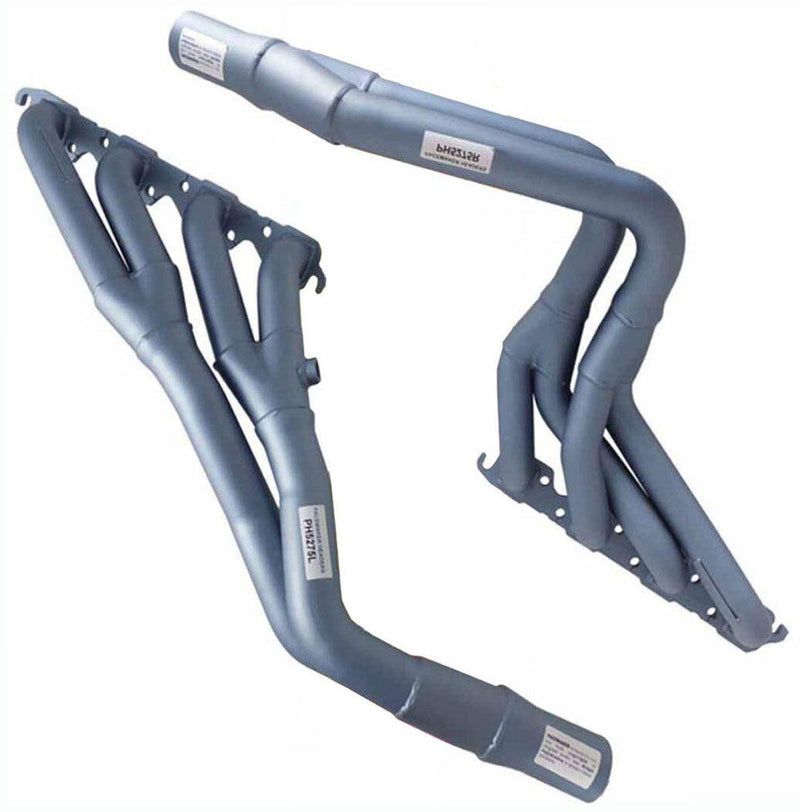

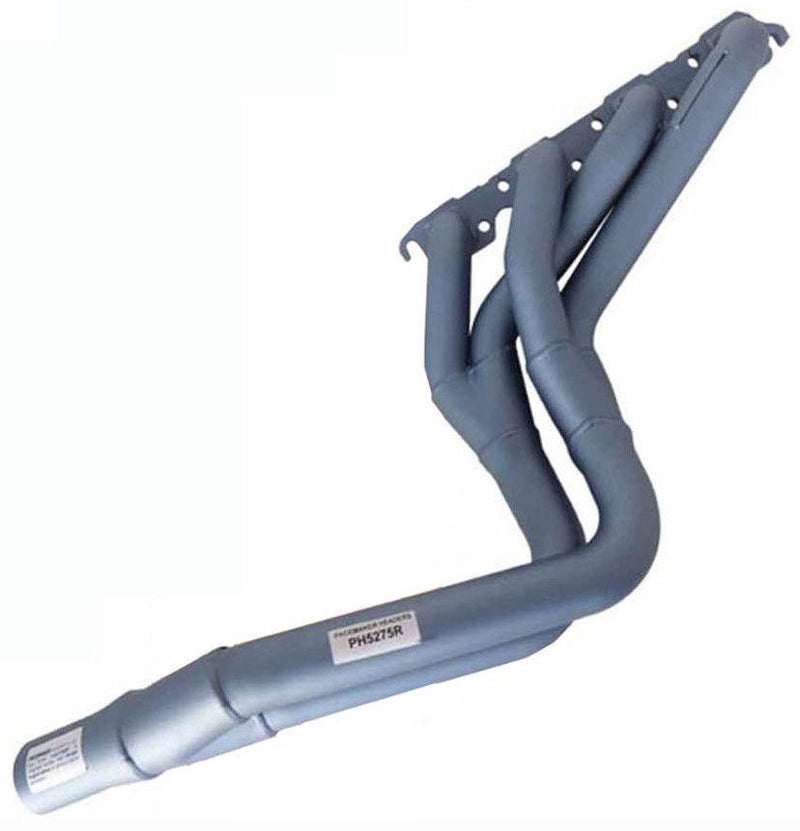

Pacemaker TRI-Y Competition Exhaust Headers 1-3/4" Primary (PH5275)

PH5275 - PACEMAKER HEADERS HOLDEN HQ-WB

Suit Holden HQ-WB 5.0L EFI V8 or EFI Heads

Part Number: PH5275

Application:
Suit Holden HQ, HJ, HX, HZ, WB with 5.0L EFI V8 Manual & Automatic or EFI Heads
P/Steering:
Yes
Air Cond.:
Yes
Oxy. Sen.:
Yes
E.G.R.:
N/A
Y Branch:
N/A
Gasket:
DSF 63
Prim. Pipe:
1-3/4" (44mm)
Sec. Pipe:
2" (51mm)

Outlet:
3" (76mm)
Fitting Time:
2 Hrs
* Will not fit with HQ type mechanical clutch
* Will suit Australian four speed with cable clutch, Commodore VN-VS five speed T5, Toyota Supra five speed with Hadfield bellhousing, Holden Trimatic, Turbo 400, Turbo 350
* Will fit with High Energy Sump Part Number HE2101
* Commodore four speed automatic Turbo 700 with Hadfield rear cross member using Turbo 700 gearbox mounts and 308 engine mounts
Pacemaker are the pioneers of quality headers featuring the Mandrel system. Pacemaker's modern workshop incorporates the very latest equipment available, including aircraft quality computerised benders with revolutionary, patented, vertebrate type mandrel, ensuring perfectly round bends, previously unavailable in Australia. Pacemaker are the only Australian header manufacturer to manufacture their products with pipe over the cone design. The advantages are there is no protruding inside the collector cone, therefore increasing exhaust gas flow and eliminating turbulence inside the exhaust header. The result is better gas flow and increased horsepower.

Additional features include:
Precision cut and machined thick flanges to eliminate leaking and warpage
All headers are jig welded for guaranteed fitment and are checked prior to shipment

Comprehensive fitting instructions with V8 sets, together with hi-tensile header bolts
Emission hookups provided where applicable
Primary pipes fitted through the flanges
Heat proof finish tested to 1270°C
