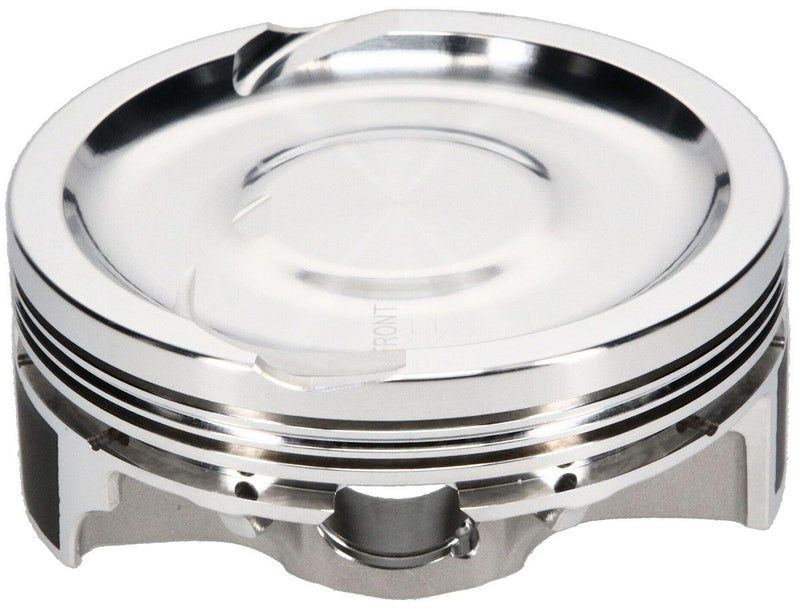

JE LS2 Asymmetrical FSR Dish Top Forged Piston (J312041) J312041

JE LS2 Asymmetrical FSR Dish Top Forged Piston (J312041)

4.010" bore, 4.000" stroke, 6.125" rod length, -26.6cc dome volume
SKU: J312041
$2,098.80 - $2,098.80
$2,098.80
$2,098.80 - $2,098.80
$2,098.80
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

LS2 4.010 PISTONS -26.6cc DISH

4.010" bore, 4.000" stroke, 6.125" rod length, -26.6cc dome volume

Part Number: J312041

GM LS Dish Top Our brand new Asymmetrical FSR (Forged Side Relief) forging design allows for the use of the mostpopular stroke and rod combinations while eliminatingreluctor wheel clearance problems. Asymmetrical forgingdesign maintains a larger skirt on the heavily stressed major thrust side, while reducing friction with a smaller skirt on the minor thrust side. The result is a high strength, lightweight piston that significantly reduces friction in your engine. Lightweight and extremely durable, these pistons are machined for 1.2mm, 1.5mm, 3.0mm rings.

Includes:

  • .927 x 2.250 straight wall carbon steel wrist pin
  • Wire locks

Specifications :

  • Part #: J312041
  • Bore: 4.010"
  • Oversize: 010 LS2
  • Stroke: 4.000
  • Rod Length: 6.125"
  • Compression Height: 1.115"
  • Compression Ratio with 64cc chamber volume: 9.3
  • Compression Ratio with 68cc chamber volume: 9.0
  • Compression Ratio with 70cc chamber volume: 8.8
  • Dome Volume: -26.6cc
  • Gram Weight:
  • Footnote: Forged Side Relief / Forced Induction
  • Reconmended Ring Set: JG3108-4000-7
