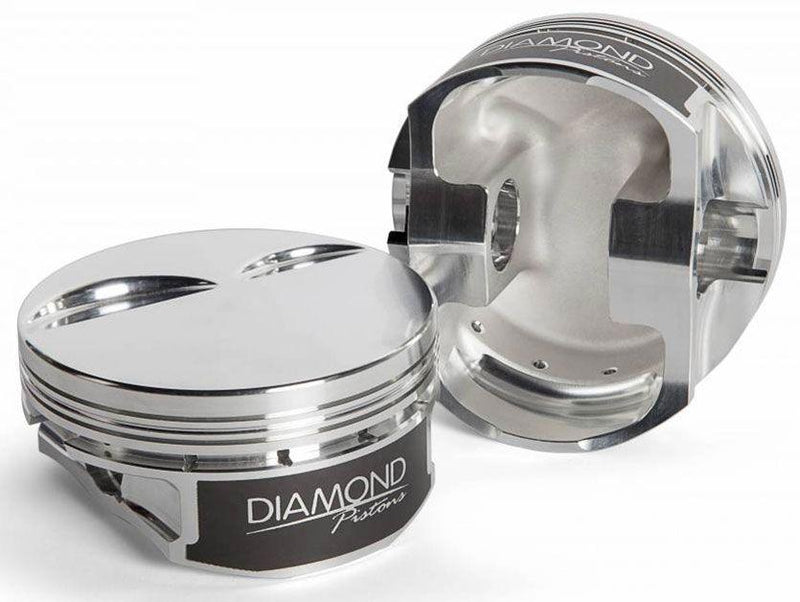

Diamond LS1/LS6 Dish Top Forged Pistons With Rings (D11506-R1-8-H)
SKU: D11506-R1-8-H
Contact for availability
Original price
$2,447.30
-
Original price
$2,447.30
Original price
$2,447.30
$2,447.30
-
$2,447.30
Current price
$2,447.30
+ GST
Stock Status:
🛑 Sold out — please contact for availability
LS2 4.030 B -15cc 4.000 ST
4.030" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume
Part Number: D11506-R1-8-H
- 3D milling on piston crowns for ready to install finish
- Valve pockets designed to work with most aftermarket cylinder heads
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .250"
- Ratios figured for .040 head gasket
- Premium 1.2mm x 1.2mm x 3.0mm ring package included
- Premium 1.2mm x 1.5mm x 3.0mm ring package on all 3.905 bore piston sets included
- Premium 8620 .185W wrist pins included
- Valve pocket depth: 0.176" intake and .105" exhaust
- 2618 material for High HP-NOS-Boost applications
NOTE: All clearance item sales are final & are not returnable for credit or refund, descriptions are correct as per manufacture
