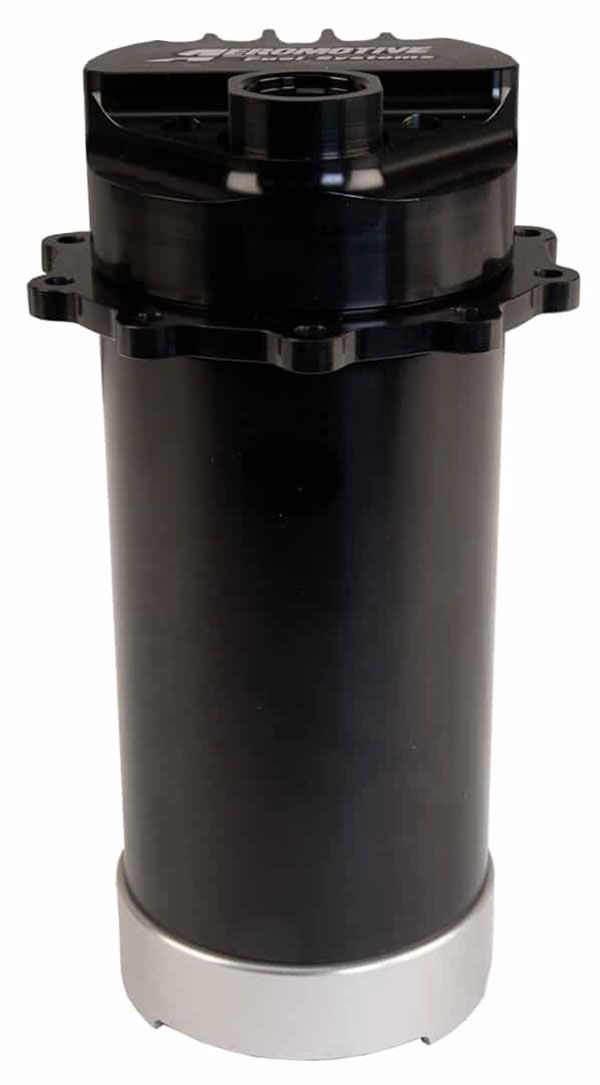

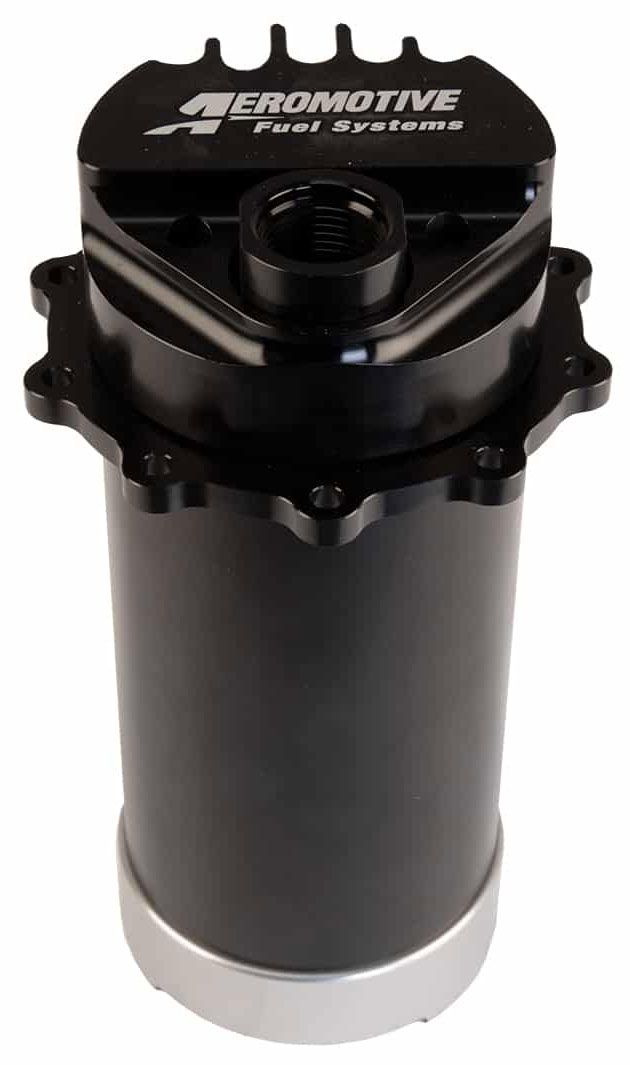

Aeromotive Brushless Drop-In In-Tank Eliminator Fuel Pump (ARO18051)

ARO18051 - ELIMINATOR BRUSHLESS STEALTH

-10ORB Outlet With Variable Speed Controller Suit 10" Deep Fuel Cell

Part Number: ARO18051

Aeromotive's line of brushless pumps are available with two different built-in controllers: the Standard Configuration of Aeromotive's Brushless Controllers, which provides continuous full-speed operation, and the New True Variable Speed Controller (TVS), which offers the advantages of pump speed control vial a 0-5V analog DC input signal. The TVS Controller capitalizes on our existing brushless technology by reducing fuel flow during low-demand and decreasing an already low current draw, therefore minimizing the introduction of heat even further.
Pump Features:
1,000 lbs./hr. @45psi
Fuel Cell Drop-in, 10" Deep
ORB-10 outlet port
Extended service life in methanol and ethanol
roller vane design that reduces friction and improves efficiency
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability
Eliminator Fuel Flow Figures
Gas
Fuel Injection
N/A 1900HP - F/I 1400HP
Carburetted

N/A 2300HP - F/I 1700HP
E85

Fuel Injection
N/A 1330HP - F/I 980HP
Carburetted

N/A 1610HP - F/I 1190HP
