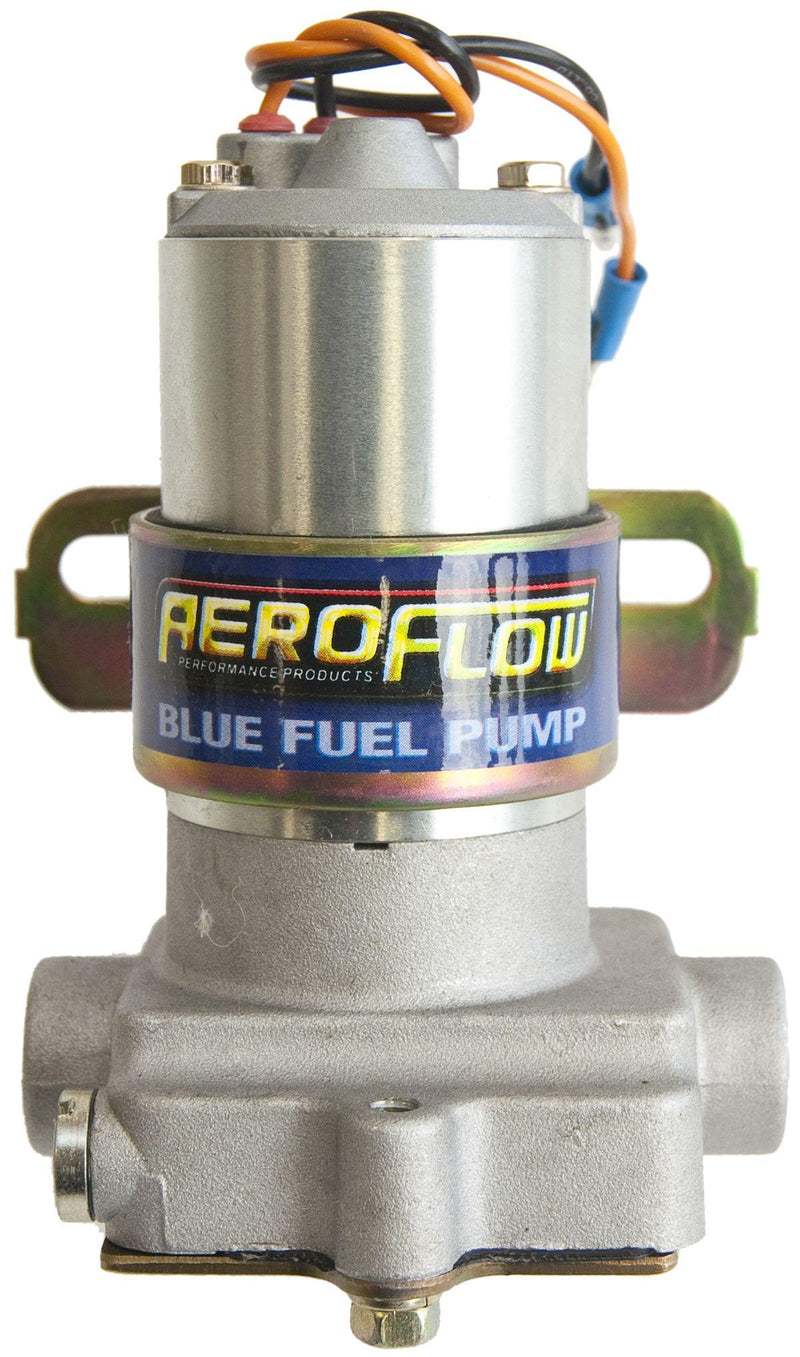

Aeroflow Electric "Blue" Fuel Pump (AF49-1009)

AF49-1009 - BLUE FUEL PUMP 14 PSI 110 GPH

110gph @ 14Psi, 3/8" NPT Inlet/Outlet (Regulator Not Included)

Part Number: AF49-1009

Aeroflow Blue 110GPH Fuel Pump.

The Blue fuel pump is a high pressure fuel pump which operates at a free flow of 110GPH at a set pressure of 14psi (0.96BAR). We recommend the use of a carburettor fuel regulator. This meets the flow requiremetns of high performance carburettor applications. This motor draws 2 amps of current and an 8amp fuse is recommended.

Compatible with Unleaded fuel only.

Note: These fuel pumps MUST be located below and as close to the fuel tank as possible. This is necessary to allow for an adequate fuel supply. It is designed to push the fuel and not pull the fuel out of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.

Specifications: Inlet/Outlet Ports: 3/8" NPT
Overall Length: 93mm (3-21/32")
Overall Width: 79mm (3-7/64")
Overall Height: 140mm (5-33/64")
Centre To Centre Mounting Tabs: 60mm (2-23/64")
