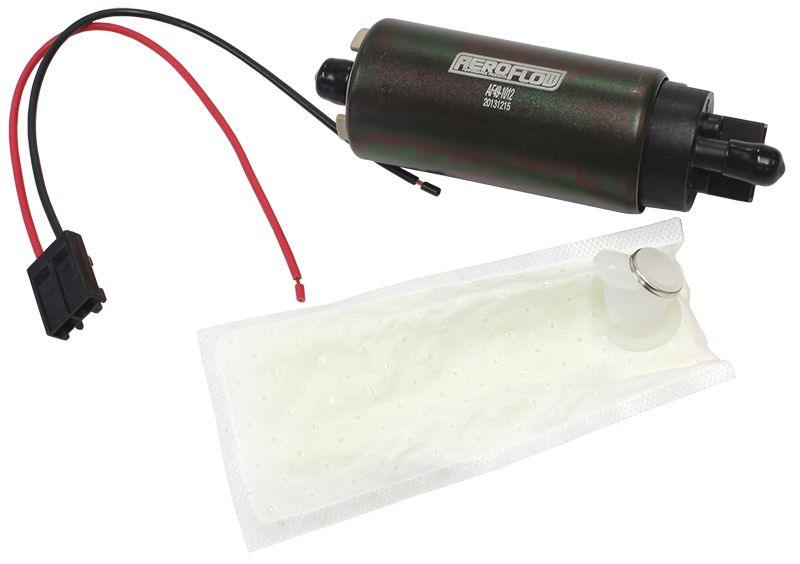

Aeroflow EFI Electric In-tank Fuel Pump 500 HP (AF49-1012)

Screen Inlet, 5/16" Barb Outlet, 180 lph@3 bar, with harness, similar to GSS342
SKU: AF49-1012
Original price $173.20 - Original price $173.20
Original price
$173.20
$173.20 - $173.20
Current price $173.20
+ GST
Availability:
Available, allow for 2-10 days shipping

AF49-1012 - EFI IN TANK PUMP 255LPH @ 3BAR

Screen Inlet, 5/16" Barb Outlet, 180 lph@3 bar, with harness, similar to GSS342

Part Number: AF49-1012

Universal 255LPH Efi In-Tank Fuel Pump.

The Aeroflow Performance 255lph fuel pump is a universal style pump intended to be installed in the fuel tank only. It is designed to replace the factory fuel pump in order to maximise fuel flow in high boost applications where the injector pulse duration is substantially increased or where larger injectors are being utilized to service performance upgrades that demand more fuel than what the factory fuel pump can deliver. It flows more than 255lph (67GPH) at 40psi and is ideal for up to 500hp. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the OE configuration. This pump will plug in to the factory OE electrical connector and use the OE screen filter. A new screen filter is included.

-Designed for in-tank use only

-Compatible with Unleaded, E85 and Methanol Fuels (fuel pump life will be reduced when using Alcohol fuels and servicing must be increased).

Specifications: Pump Dimensions: 125mm (4-59/64") Body Length & 38mm (1-31/64") Body diameter for OE fitment.
Outlet Barb: 8mm (5/16")

Instructions
