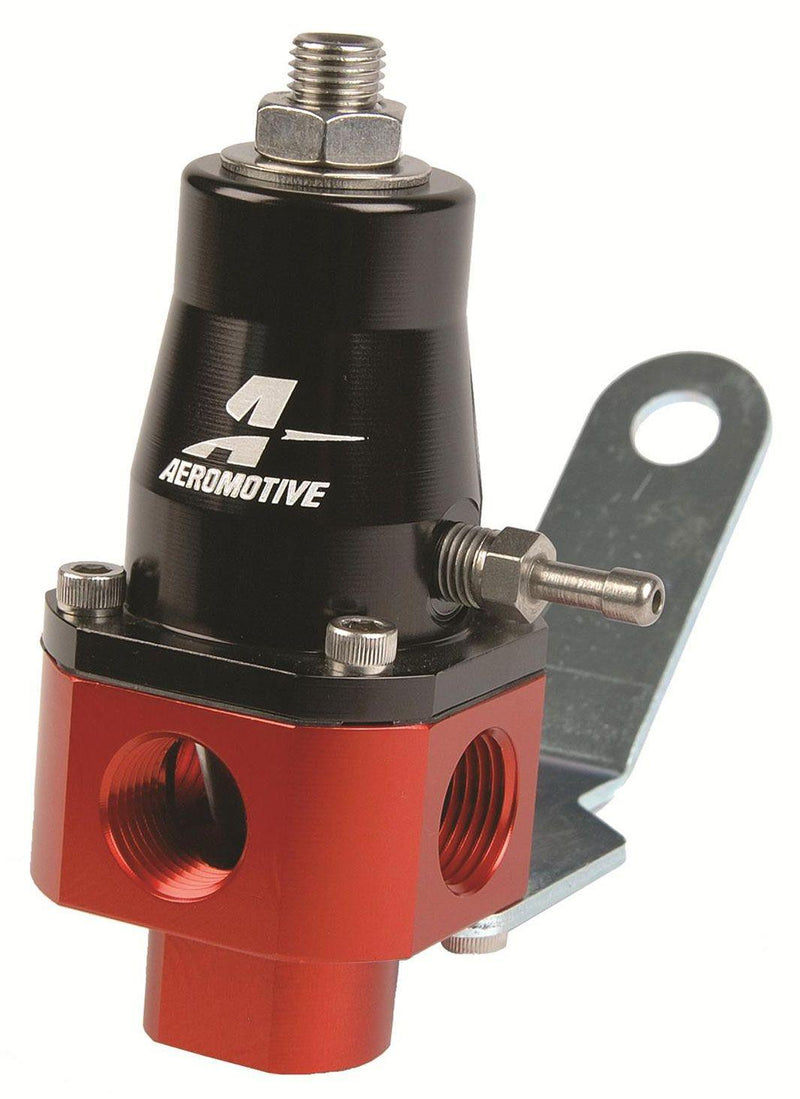

Aeromotive Universal Bypass Fuel Pressure Regulator (ARO13301)

ARO13301 - UNIVERSAL EFI & CARB FUEL

3-60 PSI. 3/8" NPT Inlet/Outlet Ports

Part Number: ARO13301

A dual purpose, universal regulator for EFI or Carburetted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides.
Features:

Capable of regulating any fuel pump between 100 and 250 GPH
Fuel pressure rises on a 1:1 ratio when referencing boost
All ports are 3/8" NPT, with one inlet and three outlets on the main body and one return port on the bottom
Bypass design provides the ultimate, dynamic fuel pressure control
NOTE: requires a return line to be installed from the bottom of the regulator to the top of the tank
