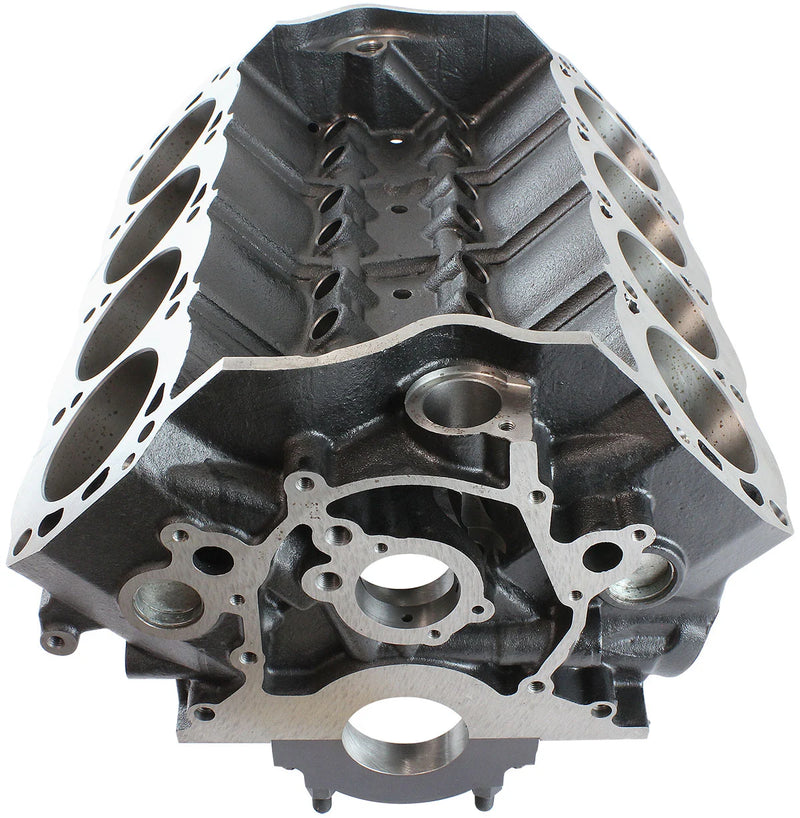

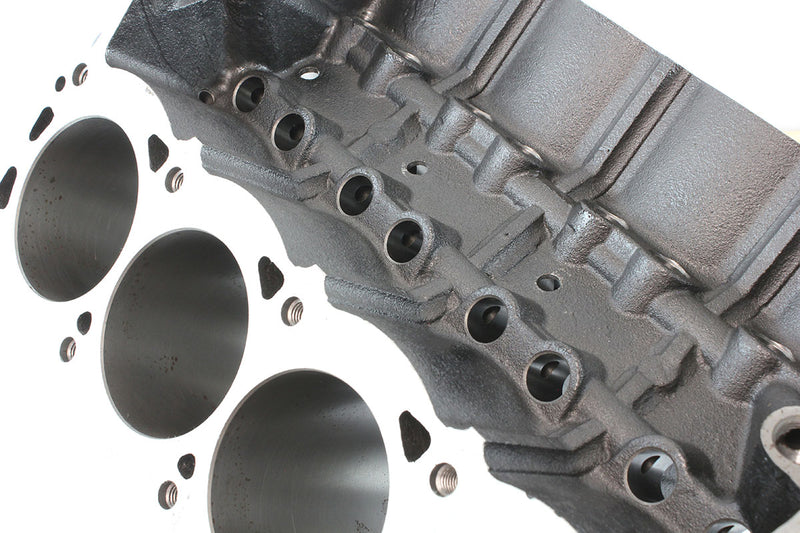

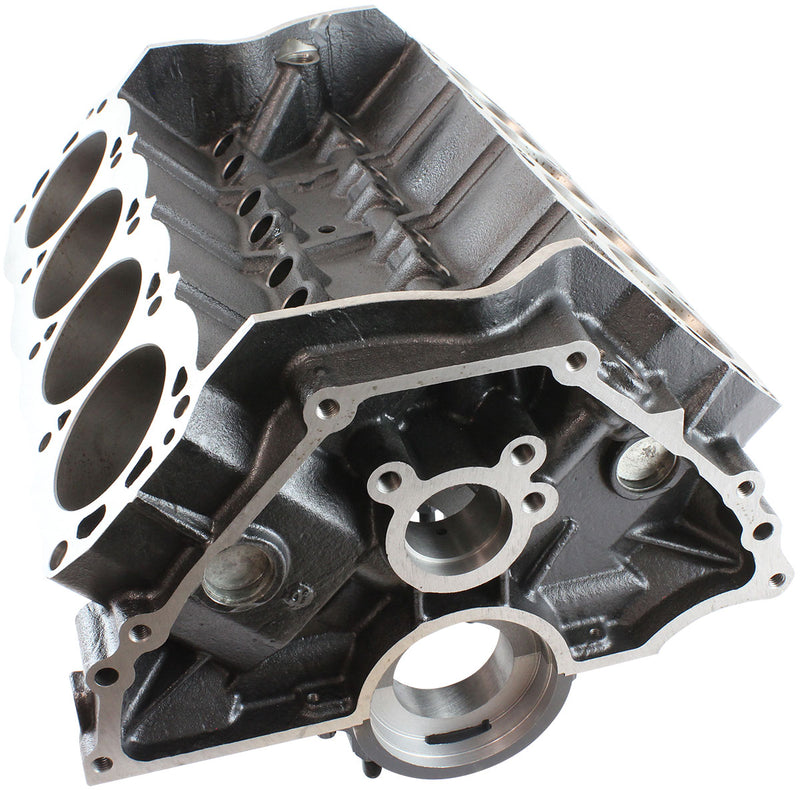

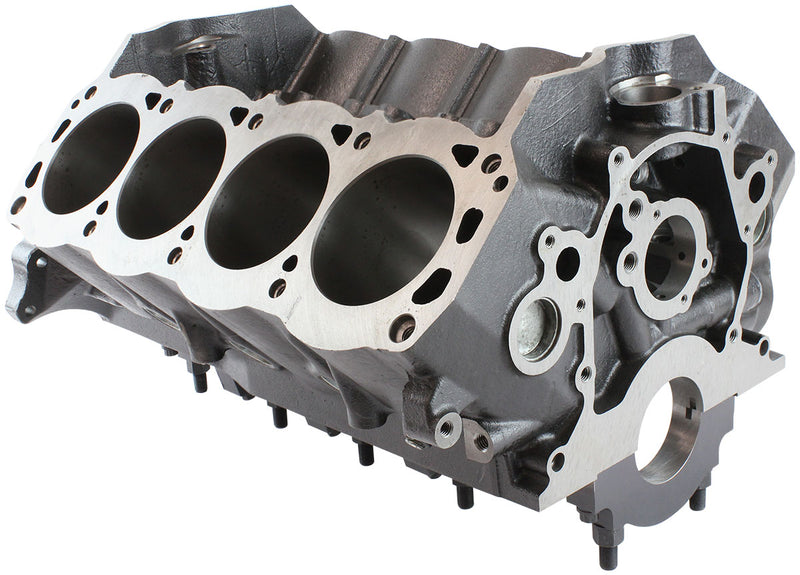

Aeroflow Cast Iron Ford 351W Engine Block, 4.000" Bore 9.500" Deck Height, 351 Cleveland Mains, 4-Bolt Billet Splayed Caps (AF96-1010)
9.500" Deck Height, 351 Cleveland Mains, 4-Bolt Billet Splayed CapsFORD WINDSOR BARE ENGINE BLOCK
9.500" Deck Height, 351 Cleveland Mains, 4-Bolt Billet Splayed Caps
Part Number: AF96-1010
Aeroflow Performance engine blocks are the ideal starting point for any street performance build that demands quality and precision at a reasonable price. Why start your engine build with a worn-out production block from decades ago that needs hours of machine work. When you can start with a new heavy-duty cast iron engine block that is a semi-finished bare engine block that requires very little machining to match your internal components. These brand-new aftermarket engine blocks are cast from premium high-strength Class 32B iron. It features Siamese cylinder bores and splayed billet steel four-bolt main caps with priority main oiling system which direct oil straight to the main bearings. The extra thick standard deck height ensures a reliable head gasket seal as well as allowing the use of off the shelf standard components such as camshaft, timing chain, oil pump/pan and oil filter etc. You can rest assured that these Aeroflow engine blocks have a great foundation for your next engine build.
Specifications:
Max Bore & Stroke: 4.185" x 4.125"
Cam Journal OD: STD SBF (can be bored to 55mm)
Cam Plug: 2.375" Press In Cup
Cam Location: STD
Cylinder Wall Thickness: .250". min @ 4.185" Bore
Deck Height: 9.500"
Deck Thickness: .675" Min
Fuel Pump: STD Mechanical Provision
Fuel Pump Pushrod: STD
Freeze Plugs: STD 1.500" Press In Cup
Lifter Bores: .874"
Main Bearing Size: 2.749" (351C)
Main Bearing Bore: STD (351C)
Main Cap Bolts: 1/2" & 3/8" on Caps 1 & 5, 7/16" Splayed on Caps 2, 3 & 4

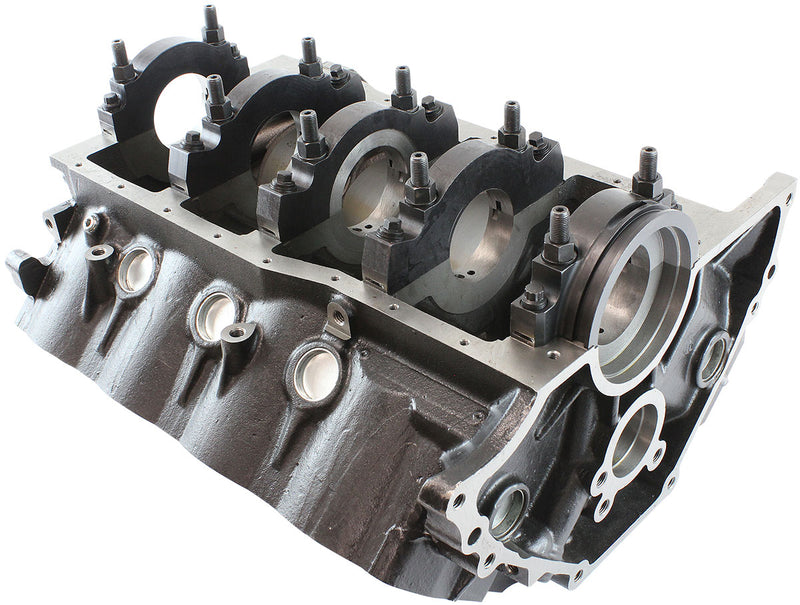

Main Caps: Billet Steel, 3 Center Caps Splayed
Main Cap Register: Deep Stepped Register (no need for dowels)
Oil System: Main Priority Oiling (can use dry sump)
Oil Pump Shaft: STD SBF
Oil Filter: STD SBF
Oil Pan: Modified STD 351W
Rear Main Seal: STD 1-Piece
Serial No. Location: Right Front & Main Caps
Starter: STD
Stud Holes, Head: STD 1/2" Blind Holes
Timing Chain / Gears: STD
Timing Cover: STD
Torque Specs: 1/2" Bolts 105 ft. lbs., 7/16" Bolts 65 ft. lbs., 3/8" Bolts - 35 ft. lbs.
Weight: 94kg (208 lbs.)
Important Information:
- Sizes in reference to Deck Height, Cylinder Bore, Wall Thickness, etc, listed in these instructions are Nominal. This Block must be professionally finish machined.
- Due to a vast difference of opinion among professional builders regarding specifications and procedures, all blocks, when purchased bare, are finished within factory +/- tolerances. Tighter than factory or OE specs when applicable.
- Cam bearing OD should be de-burred before installation.
- When initially removing main caps, the caps & block should be de-burred before reinstalling; this will insure that correct main size is maintained.
- This Block should be assembled by experienced, professional engine builders. Many parameters such as Cylinder Bores will need additional, professional machine work.
- Many pistons are oversized, and cylinder bore must be honed to correct skirt clearance. Very few aftermarket components are drop ins to any engine block, without additional checking/machining.
