JE Ford BA-BF XR6 4.0L 6 Cyl Turbo .020" - Dish Forged Piston (J309126) J309126

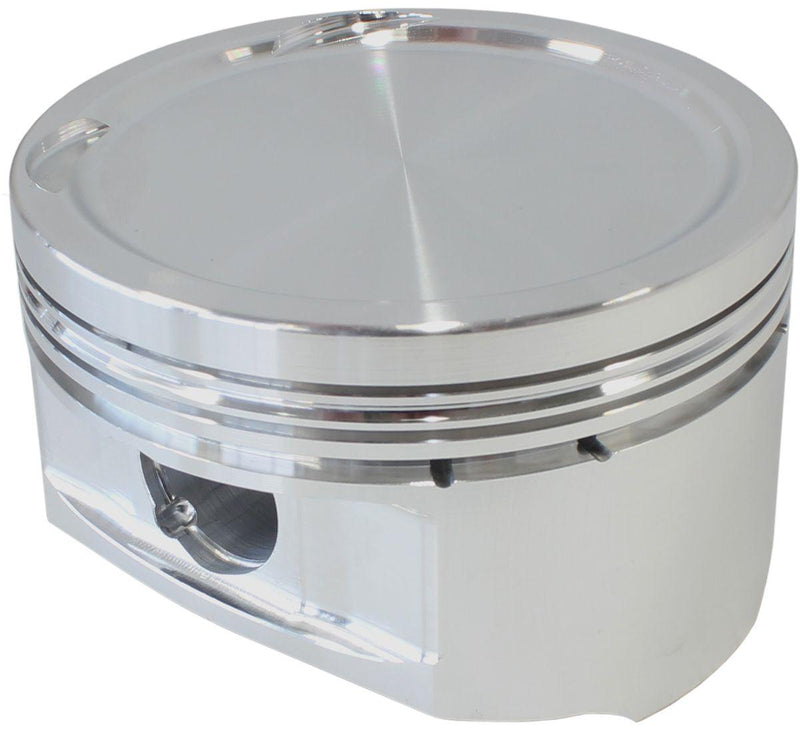

JE Ford BA-BF XR6 4.0L 6 Cyl Turbo .020" - Dish Forged Piston (J309126)

4.0L, 3.615" bore, 3.900" stroke, 6.058" rod length, -11cc dome volume
SKU: J309126
$2,308.70 - $2,308.70
$2,308.70
$2,308.70 - $2,308.70
$2,308.70
+ GST
Stock Status: ⌛ Available — ships from supplier, allow 2–10 days shipping

FORD BA BF XR6 6 CYL TURBO +20

4.0L, 3.615" bore, 3.900" stroke, 6.058" rod length, -11cc dome volume

Part Number: J309126

This piston set is ideal for oval track to street/stripapplications, it is forged from 2618 Low Silicon aluminium alloy. Features include Precision Machined CNCRing Grooves and forced pin oiling. Piston set accepts 1, 1.2, 2.8mm rings.

Includes:

  • Spiro Lock: 866-042-CS
  • Straight Wall Pin: 866-2500-18-51C (110g)

Specifications:

  • Part #: J309127
  • CID: 4.0L
  • Bore: 3.615
  • Stroke: 3.900
  • Rod Length: 6.058
  • Compression Height: 1.214
  • Dome Volume: -11cc
  • Gram Weight:
  • Footnote: .866Pin Diameter,
  • Oversize: 0.020
  • Ring Set Included: JG1001-3652
